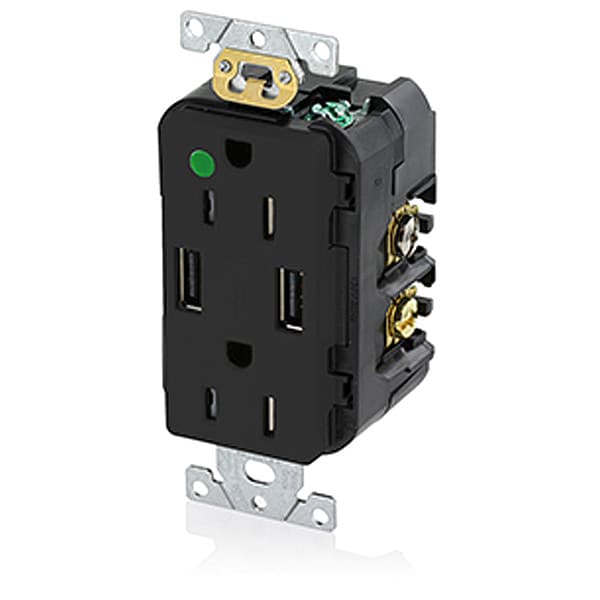

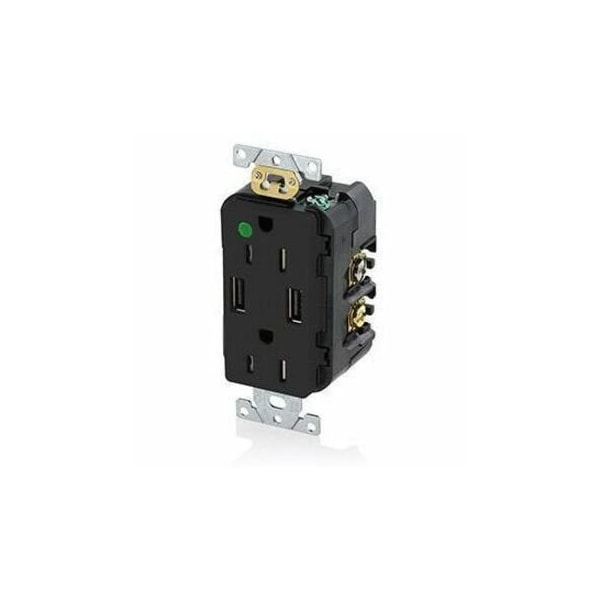

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded T5632-HGE - main
Shop LEVITON

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # T5632-HGE

  • Zoro # G704256007

product price:  $40.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T5632-HGE
Zoro #
G704256007
UPC #
07847768554
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.81 in
Face Plate Width
1.3 in
Face Plate Height
2.6 in
Overall Depth
1.7 in
Minimum Wire Size
14 AWG
Maximum Wire Size
12 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA Certified C22.2 No 42 and 223, NOM-ANCE, RoHS Compliant, UL 1310, UL 498, cCSAus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Number of USB Ports
2
USB Charging Capacity
3.6 A
NEMA Configuration
5-15
Grade
Hospital Grade
Electrical Connection Type
Straight Blade
UL 94 Flammability Rating
V-0
Maximum Operating Temperature
104 Degrees F
Housing Material
PBT Thermoplastic Polyester Resin
Wire Connection Types
Screw Terminals
Market
Commercial
Horsepower Rating
1/2 hp
Power Indicating Light
No
Compatible with Series
USB 2.0
Contact Material
Brass
USB Connection Type
A
USB Standard
2.0
Number of Outlets
2
Minimum Operating Temperature
14 Degrees F
GFCI
No
Dielectric Voltage
Withstands 2000V per CSA
Face Material
PBT
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Termination
Back or Side Wire
Feature
Tamper-Resistant|with USB|Smooth Face
Body Material
PBT Thermoplastic polyester resin
Terminal Screws
Steel
Flammability
Rated V-0 per UL 94
Line Contacts
Brass
Device Type
Duplex Receptacle Outlet
Terminal Clamp
Brass
At Rated Voltage
1/2 HP
Operating Temperature
-10°C to 40°C
Terminal Accom.
14-12 AWG
Grounding Screw
Steel
Temperature Rise
Max 30C after 100 cycles OL
Wire
3
Pole
2
Strap Material
Steel
ANSI
C-73
Applicable Standards
UL 498 and 1310, CSA C22.2 Nos. 42 and 223
Ground Clips
Brass
Certification/Listing
cCSAus, NOM-ANCE
Screw Terminal Torque
14-18 in-lbs

Description

USB Receptacle, Current Rating 15 A, Electrical Connection Type Straight Blade, Housing Color Black, Number of Outlets 2, Number of USB Ports 2, Number of Wires 3, Power Indicating Light No, Receptacle Type Duplex, Resistance Properties Tamper Resistant, USB Connection Type A, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Face Plate Height 2.62 in, Face Plate Width 1.3 in, GFCI No, Grade Hospital Grade, Grounding Grounded, Horsepower Rating 1/2 hp
