  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray

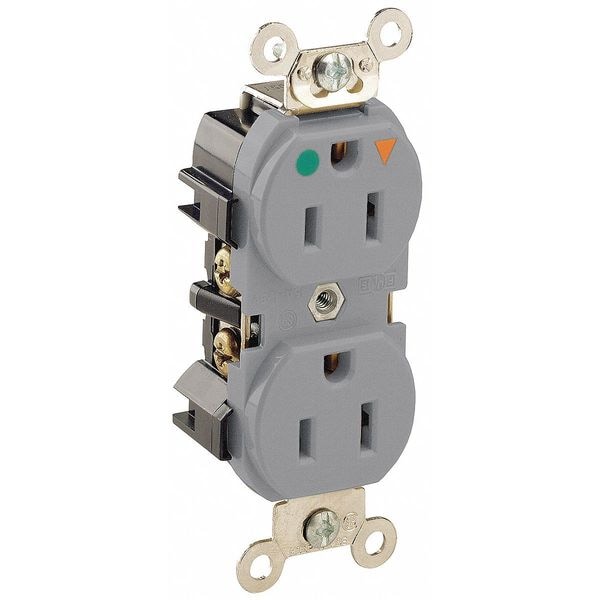

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray 8200-IGG - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray

  • Mfr # 8200-IGG

  • Zoro # G704393221

product price: $19.29
/ea
Sold in multiples of 10 for $192.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8200-IGG
Zoro #
G704393221
UPC #
07847705731
Country of Origin
Mexico

Dimensions

Face Plate Width
1.3 in
Overall Depth
1.1 in
Face Plate Height
2.8 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
32.8 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Gray
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL Federal Specification WC-596, UL 498HG, cULus
Flange Type
Non-Flanged
Sub-Category
Duplex Receptacles
Material
PBT Polyester Blend (Body and Face)
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Wiring Method - Plugs and Receptacles
Back and Side
HP
1/2 hp
Outlet Type - Plugs and Receptacles
Duplex
Application Environment
Heavy-Duty Hospital Grade
Grade
Hospital Grade Fed. Spec.
Number of Outlets
2
Maximum Operating Temperature
140 Degrees F
GFCI
No
Includes Mounting Hardware
Yes
NEMA Enclosure Rating
Not Rated
Housing Material
PBT Thermoplastic Polyester
Contact Material
Phosphor Bronze
Horsepower Rating
1/2 hp
Polarized
Yes
Cover Type
No Cover
UL 94 Flammability Rating
V-2
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Temperature Rise
Max 30C temperature rise at full rated current
Current Limiting
Full Rated Current
Line Contacts
0.030" Phosopher Bronze
Terminal Accom.
14-10 AWG
Wire
3
Screw Terminal Torque
14-18 in-lbs
Strap Material
Steel (Galvanized G60)
At Rated Voltage
1/2 HP
Applicable Standards
UL 498, Fed Spec W-C-569, CSA 22.2 No. 42
Grounding Screw
#8 Hex Head, Triple-Drive Bass
Operating Temperature
-40°C to 60°C
Termination
Back or Side Wire
Device Type
Duplex Receptacle Outlet
Pole
2
UL Fed Spec WC-596
File E13399
Function
Isolated Ground
Terminal Screws
#8 Triple-Drive Brass
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Clamp Nuts
0.030" Brass
Mounting Screws
Triple-Drive Plated Steel
Ground Clips
Brass
CSA C22.2 No. 42
File 152105
Shutter Mechanism
Acetal
Terminal Clamp
Brass
Face Material
PBT Polyester Blend
Dielectric Voltage
Withstands 3000V min
Ground Contacts
0030" Brass
Wire Type
Stranded or Solid
Certification/Listing
cULus, NOM-ANCE
ANSI
C-73
Flammability
Rated V-2 per UL 94
Feature 4
Smooth Face
UL498HG
File E13399
Body Material
PBT Polyester Blend

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material PBT Thermoplastic Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
