  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

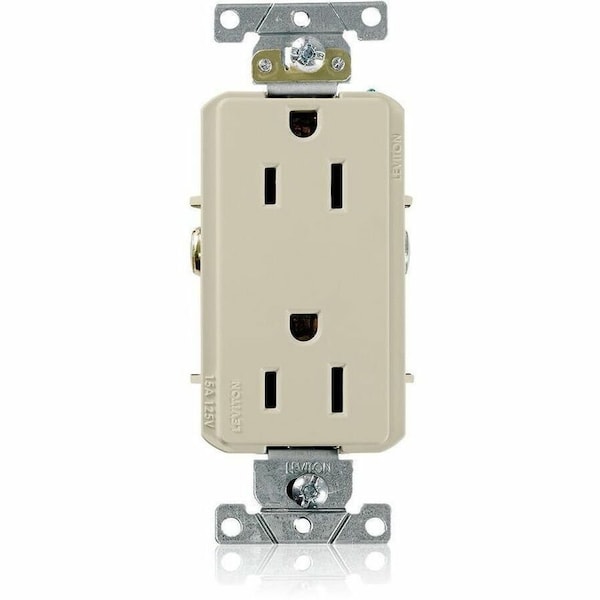

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory 16252-I - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

  • Mfr # 16252-I

  • Zoro # G804836611

product price: $8.15
/ea
Sold in multiples of 10 for $81.50

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16252-I
Zoro #
G804836611
UPC #
07847781967
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Face Plate Width
1.6 in
Face Plate Height
2.6 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C-73, CSA C22.2 No.42, Fed Spec W-C-596, NON-ANCE, UL 498, cULus
Flange Type
Non-Flanged
Wiring Method - Plugs and Receptacles
Back and Side
Application Environment
Commercial
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Material
PBT Polyester Blend (Body and Face)
Outlet Type - Plugs and Receptacles
Decorator Duplex
HP
1/2 hp
Includes
Strap Material
Sub-Category
Duplex Receptacles
Cover Type
No Cover
Horsepower Rating
1/2 hp
NEMA Enclosure Rating
Not Rated
Housing Material
PBT Polyester
Includes Mounting Hardware
Yes
Contact Material
Phosphor Bronze
Grade
Federal Specification
Polarized
Yes
Maximum Operating Temperature
140 Degrees F
Market
Commercial
Connection Orientation
Straight
GFCI
No
UL 94 Flammability Rating
V-2
Number of Outlets
2
Minimum Operating Temperature
-40 Degrees F

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
