  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

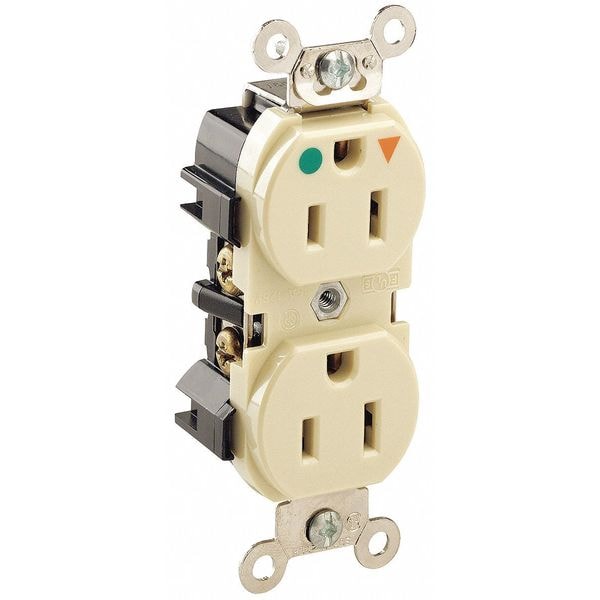

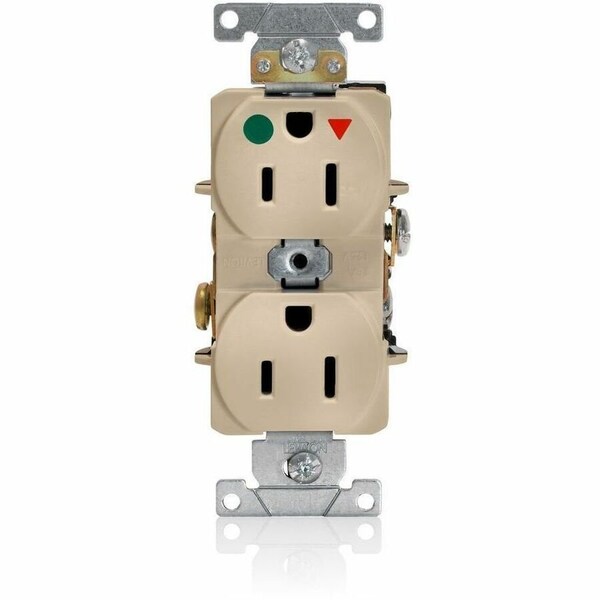

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory 8200-IGI - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

  • Mfr # 8200-IGI

  • Zoro # G604393222

product price: $19.29
/ea
Sold in multiples of 10 for $192.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8200-IGI
Zoro #
G604393222
UPC #
07847705729
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Overall Depth
1.1 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.8 in
Maximum Wire Size
10 AWG
Face Plate Width
1.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL Federal Specification WC-596, UL 498HG, cULus
Flange Type
Non-Flanged
Wiring Method - Plugs and Receptacles
Back and Side
Sub-Category
Duplex Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Application Environment
Heavy-Duty Hospital Grade
Material
PBT Polyester Blend (Body and Face)
HP
1/2 hp
Outlet Type - Plugs and Receptacles
Duplex
GFCI
No
Cover Type
No Cover
Polarized
Yes
Includes Mounting Hardware
Yes
Horsepower Rating
1/2 hp
Maximum Operating Temperature
140 Degrees F
UL 94 Flammability Rating
V-2
Connection Orientation
Straight
NEMA Enclosure Rating
Not Rated
Grade
Hospital Grade Fed. Spec.
Housing Material
PBT Thermoplastic Polyester
Minimum Operating Temperature
-40 Degrees F
Number of Outlets
2
Contact Material
Phosphor Bronze
Terminal Accom.
14-10 AWG
Pole
2
Body Material
PBT Polyester Blend
At Rated Voltage
1/2 HP
Termination
Back or Side Wire
Dielectric Voltage
Withstands 3000V min
CSA C22.2 No. 42
File 152105
Grounding Screw
#8 Hex Head, Triple-Drive Bass
Function
Isolated Ground
Current Limiting
Full Rated Current
Shutter Mechanism
Acetal
UL498HG
File E13399
Certification/Listing
cULus, NOM-ANCE
Terminal Screws
#8 Triple-Drive Brass
Ground Contacts
0030" Brass
Line Contacts
0.030" Phosopher Bronze
Clamp Nuts
0.030" Brass
Flammability
Rated V-2 per UL 94
UL Fed Spec WC-596
File E13399
Wire Type
Stranded or Solid
Operating Temperature
-40°C to 60°C
Temperature Rise
Max 30C temperature rise at full rated current
Device Type
Duplex Receptacle Outlet
Mounting Screws
Triple-Drive Plated Steel
Wire
3
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Terminal Clamp
Brass
Feature 4
Smooth Face
Screw Terminal Torque
14-18 in-lbs
Strap Material
Steel (Galvanized G60)
ANSI
C-73
Applicable Standards
UL 498, Fed Spec W-C-569, CSA 22.2 No. 42
Ground Clips
Brass
Face Material
PBT Polyester Blend

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material PBT Thermoplastic Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
