  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

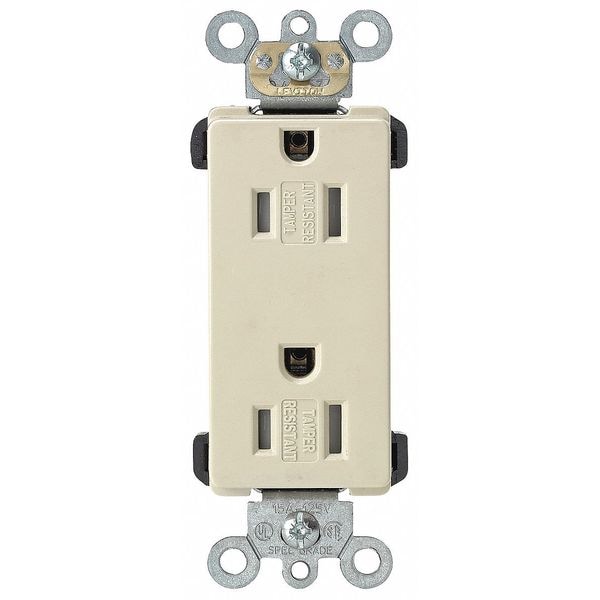

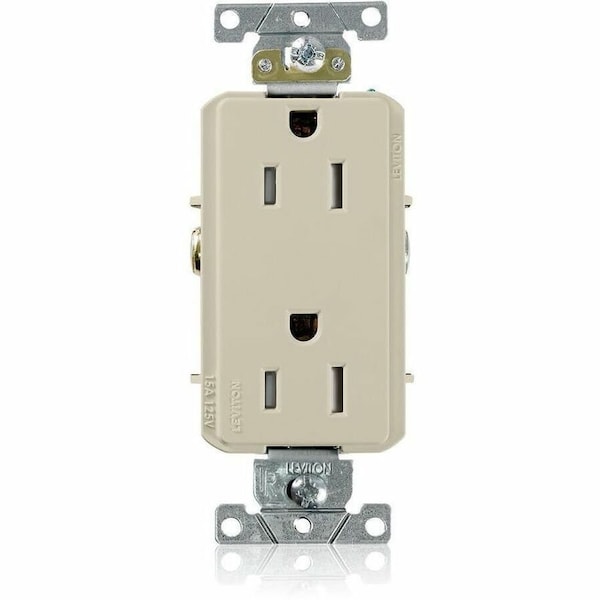

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory TDR15-I - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

  • Mfr # TDR15-I

  • Zoro # G304393195

product price:  $8.79
/ea
Sold in multiples of 10 for $87.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TDR15-I
Zoro #
G304393195
UPC #
07847739198
Country of Origin
Mexico

Dimensions

Face Plate Height
2.8 in
Minimum Wire Size
14 AWG
Overall Depth
0.9 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NOM 057, UL 498, UL Federal Specification WC-596, cULus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Application Environment
Heavy-Duty Industrial Grade
Material
PBT Polyester Blend (Body and Face)
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Decorator Duplex
HP
1/2 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Sub-Category
Duplex Receptacles
Tamper Resistant
Yes
Includes
Cover, Wallplate
Housing Material
PBT Polyester
Maximum Operating Temperature
167 Degrees F
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Number of Outlets
2
Contact Material
Brass
Cover Type
No Cover
Polarized
Yes
Includes Mounting Hardware
Yes
NEMA Enclosure Rating
Not Rated
Connection Orientation
Straight
Grade
Federal Specification
GFCI
No
UL 94 Flammability Rating
V-0
Horsepower Rating
1/2 hp
Grounding Screw
#8 Hex Head, Triple-Drive Brass
Wire Type
Stranded or Solid
Terminal Clamps
Brass
Shutter Mechanism
Acetal
Temperature Rise
Max 30 °C temperature rise at full rated current
Strap Material
Steel (Galvanized G60)
Ground Clips
Brass
Line Contacts
Phosphor Bronze Triple Wipe 0.031
Terminal Screws
#8 Triple-Drive Brass
Dielectric Voltage
Withstands 3000 V minimum
Operating Temperature
-40°C to 75°C
Ground Contacts
0.030" Brass
Body Material
PBT Polyester Blend
Wire
3
Terminal ID
Brass - Hot, Silver - Neutral, Green - Ground,
Feature 2
Tamper-Resistant
Certification/Listing
cULus, NOM-ANCE
Mounting Screws
Triple-Drive Plated Steel
Pole
2
ANSI
C-73
Terminal Accom.
#14 AWG - #10 AWG
Device Type
Duplex Receptacle Outlet
Face Material
PBT Polyester Blend
Flammability
Rated V-0 per UL 94
Termination
Back or Side Wire
Screw Terminal Torque
14-18 in-lbs
Applicable Standards
UL 498, Fed Spec W-C-596, CSA C22.2. No. 42
Feature 4
Smooth Face

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
