  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

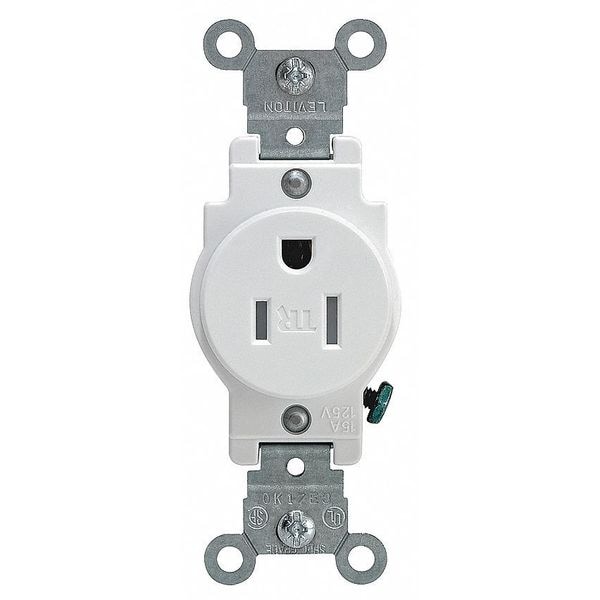

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White T5015-W - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

  • Mfr # T5015-W

  • Zoro # G304836418

product price: $6.79
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T5015-W
Zoro #
G304836418
UPC #
07847738179
Country of Origin
Mexico

Dimensions

Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Overall Depth
1.1 in
Face Plate Height
2.4 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL 498
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Material
Thermoplastic Nylon (Body and Face)
HP
1/2 hp
Tamper Resistant
Yes
Outlet Type - Plugs and Receptacles
Single
Application Environment
Commercial
Sub-Category
Single Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Wiring Method - Plugs and Receptacles
Back and Side
Connection Orientation
Straight
Maximum Operating Temperature
140 Degrees F
GFCI
No
Polarized
Yes
Horsepower Rating
1/2 hp
Minimum Operating Temperature
-40 Degrees F
Market
Commercial
Includes Mounting Hardware
Yes
Number of Outlets
1
Cover Type
No Cover
Grade
Federal Specification
NEMA Enclosure Rating
Not Rated
Contact Material
Brass
Housing Material
Thermoplastic Nylon
Pole
2
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Feature
Tamper-Resistant|Smooth Face
UL498
File E13399
CSA C22.2 No. 42
File 152105
At Rated Voltage
1/2 HP
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Current Limiting
Full Rated Current
Terminal Accom.
14-10 AWG
Wire
3
Screw Terminal Torque
14-18 in-lbs
Clamp Nuts
Zinc-Plated Steel
Terminal Screws
Brass 10-32
Operating Temperature
-40°C to 60°C
Body Material
Thermoplastic Nylon
Line Contacts
Brass Triple-Wipe
Face Material
Thermoplastic Nylon
Grounding Screw
Brass 8-32
Strap Material
Zinc-Plated Steel
Termination
Back and Side Wire
Device Type
Single Receptacle Outlet
ANSI
C-73
Ground Clips
Brass-Plated
Dielectric Voltage
Withstands 2000V per UL498

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Thermoplastic Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Tamper Resistant, Standards ANSI, CSA Certified, UL Listed
