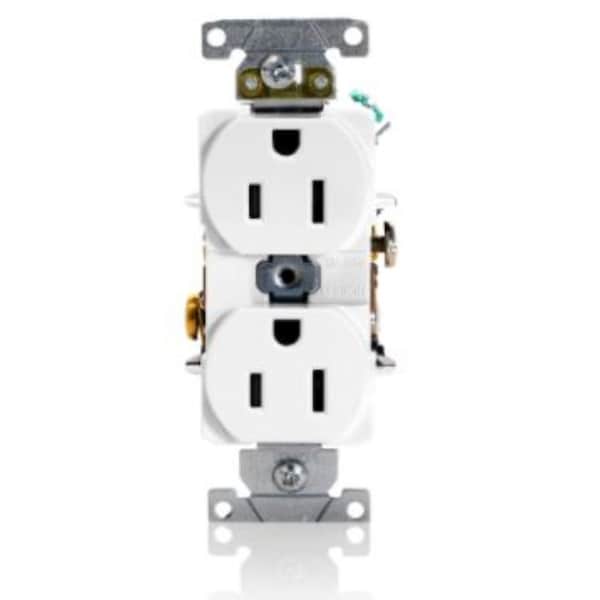

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Self-Grounded
- Mfr # 05252-0WS
- Zoro # G203457479
product price:
$
9.19
/ea
Key Features
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Number of Poles
2
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 05252-0WS
- Zoro #
- G203457479
- UPC #
- 78477496107
- Country of Origin
- Mexico
Details
- Item
- Straight Blade Receptacle
- Receptacle Type
- Duplex
- NEMA Receptacle Configuration
- 5-15R
- Current Rating
- 15 A
- Voltage Rating
- 125V AC
- Number of Poles
- 2
- Number of Wires
- 3
- Wire Connection Type
- Screw Terminals
- Wiring Method
- Back, Side
- Grounding
- Self-Grounded
- Housing Color
- White
- Standards
- ANSI C73, CSA C22.2 No. 42, NEMA : WD-6, NOM 057 Certified, UL 498, UL Fed Spec WC-596
- Resistance Properties
- Impact Resistant
- Flange Type
- Non-Flanged
Description
Leviton's line of heavy-duty industrial-grade receptacles are available with a number of wiring options and features. These heavy-duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact-resistant construction.
- • Body and face made of impact-resistant advanced engineering polymer for extreme durability
- • Brass self-grounding clip is permanently staked on for secure and reliable performance
- • Wide receptacle face shelf provides exceptional support to the wallplate or box cover
- • Ground terminal clamp allows for both back and side wiring
- • Max 30C after 250 cycles OL at 200 percent rated current
- •
