  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

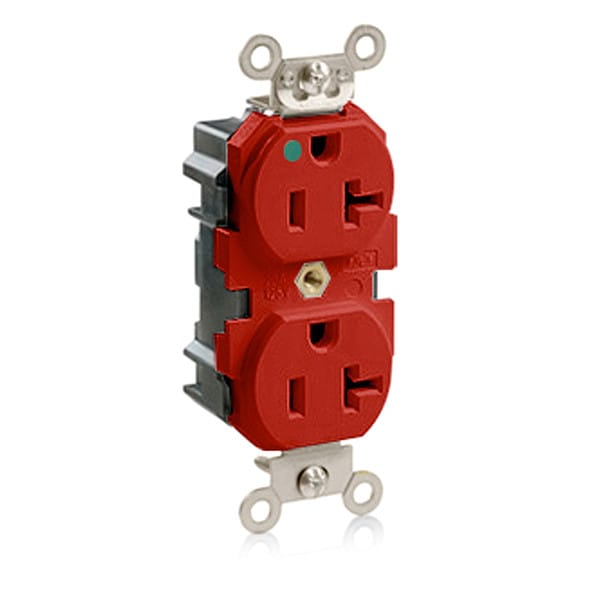

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded MT830-R - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # MT830-R

  • Zoro # G904256036

product price: $13.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MT830-R
Zoro #
G904256036
UPC #
07847741957
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
4.1 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Grounding
Self-Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, NEMA WD-1 & WD-6, NOM 057, cULus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Cover Material
Nylon
HP
1 hp
Wiring Method - Plugs and Receptacles
Modular
Material
Nylon (Base)
Outlet Type - Plugs and Receptacles
Duplex
Sub-Category
Duplex Receptacles
Application Environment
Heavy-Duty Hospital Grade
Tamper Resistant
Yes
Voltage
125 VAC
GFCI
No
Number of Outlets
2
Polarized
Yes
Maximum Operating Temperature
140 Degrees F
NEMA Enclosure Rating
Not Rated
Connection Orientation
Straight
Horsepower Rating
1 hp
Cover Type
No Cover
Includes Mounting Hardware
Yes
Grade
Hospital Grade
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
Contact Material
Brass
Current Interrupting
Certified for current interrupting at full rated current
Mounting Screws
Triple Combination Head, Steel
Dielectric Voltage
Withstands 2000V per UL498
Mounting Strap
Galvanized Steel with Riveted Ground Contacts
Device Type
Duplex Receptacle Outlet
Shutter Mechanism
Delrin® Acetal
Feature
Tamper-Resistant|Smooth Face
Bushing
Solid Brass
ANSI
C-73
cULus
Listed
Pole
2
NOM Certified
57
Maximum Working Voltage
125V as rated
Termination
Modular
Operating Temperature
-40°C to 60°C
Wire
3
Ground Clips
Brass
Base Material
Nylon
Line Contacts
0.040€ Thick Solid Brass
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Locking Pins
Solid Brass

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards ANSI, RoHS Compliant, Voltage Rating 125V AC

Documents & Resources

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
