Shop LEVITON

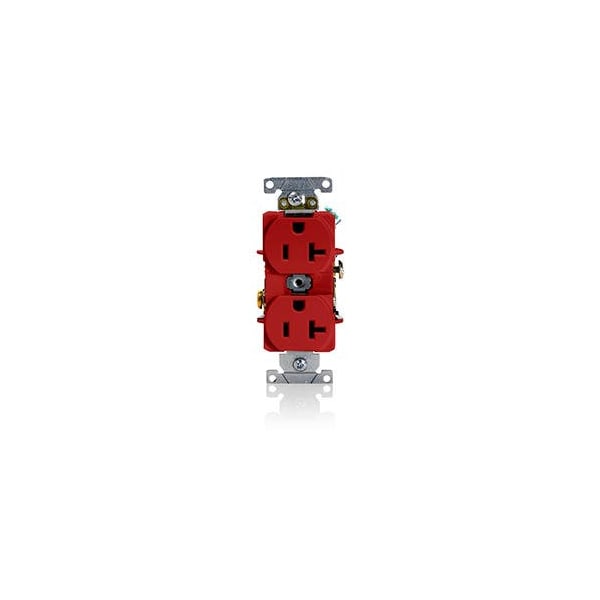

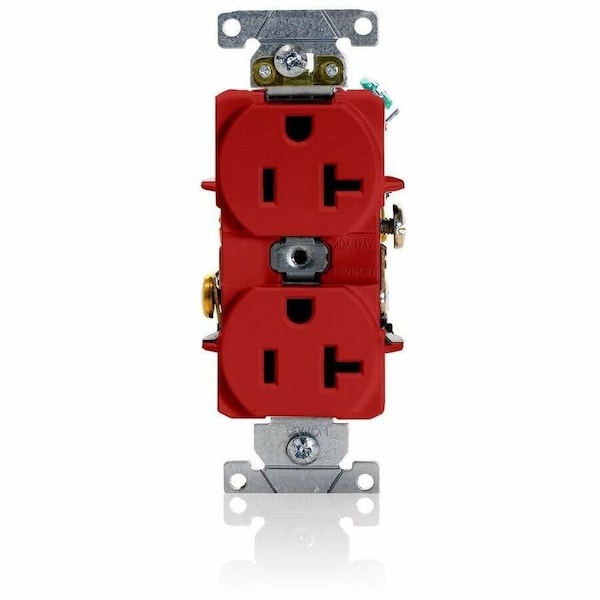

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 5352-R

  • Zoro # G716090613

product price:  $6.59
/ea
Sold in multiples of 10 for $65.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5352-R
Zoro #
G716090613
UPC #
078477819647
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Face Plate Width
1.3 in
Overall Depth
1.1 in
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back/Side
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
Standards
ANSI-C-73, CSA C22.2 No. 42 File 152105, NEMA WD-6, UL 498, File E13399, UL FED SPEC WC-596 File E13399
Resistance Properties
Tamper Resistant
Number of Gangs
1
For Environment
Food and Beverage, Oily/Greasy
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees C
Number of Outlets
2
Maximum Operating Temperature
60 Degrees C
Features
Smooth Face
UL 94 Flammability Rating
V-2
Housing Material
Nylon
Horsepower Rating
1 hp
Contact Material
Phosphor Bronze
Market
Industrial
NEMA Enclosure Rating
Not Rated
GFCI
No
Cover Type
Screw-On Cover
Number of Wall Plates Included
0
Grade
Federal Specification
AFCI
No
IP Rating
Not Rated
Flange Type
Non-Flanged
Surge Protection
No
Shrouded
No
Polarized
Yes

Description

Duplex Receptacle Outlet
