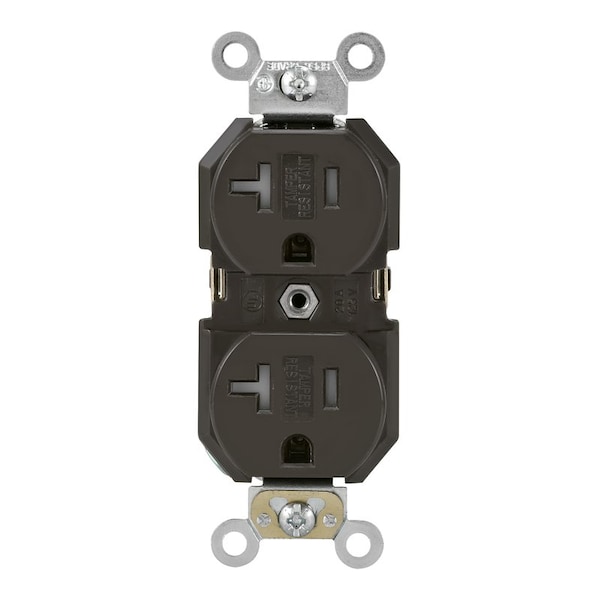

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded
Mfr # TBR20-000
Zoro # G303457461
Key Features
Specifications
Product Information
- MFR #
- TBR20-000
- Zoro #
- G303457461
- UPC #
- 78477392089
- Country of Origin
- Mexico
Details
- Item
- Straight Blade Receptacle
- Receptacle Type
- Duplex
- NEMA Receptacle Configuration
- 5-20R
- Current Rating
- 20 A
- Voltage Rating
- 125V AC
- Phase
- Single
- Number of Poles
- 2
- Number of Wires
- 3
- Wire Connection Type
- Screw Terminals
- Wiring Method
- Back, Side
- Grounding
- Self-Grounded
- Housing Color
- Brown
- Mount Type
- Flush
- IP Rating
- Not Rated
- Standards
- ANSI C73, CSA C22.2 No. 42, NEMA WD-1 & WD-6, NOM 057, UL 498
- Resistance Properties
- Tamper Resistant
- Flange Type
- Non-Flanged
Description
Leviton's line of tamper-resistant (TR) receptacles. This requirement resulted from a consumer product safety commission study, that reported alleged injuries in the home caused each year by children attempting to insert foreign objects into receptacles. TR receptacles have been mandated in pediatric care areas for over 20 years and have likely been successful in preventing electrical injuries. As a long-time manufacturer of tamper-resistant devices, we are pleased to be at the forefront of this safety measure with an expanded product line that encompasses a wide range of TR devices in residential, commercial, industrial and hospital grades.
- • Shallow design for maximum wiring room
- • Termination-back or side wire
- • Max 30C after 100 cycles OL at 150 percent rated current
- • Ultrasonic heavy-duty construction offers long, trouble-free service life
- • Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc., will be locked out
- •
