  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

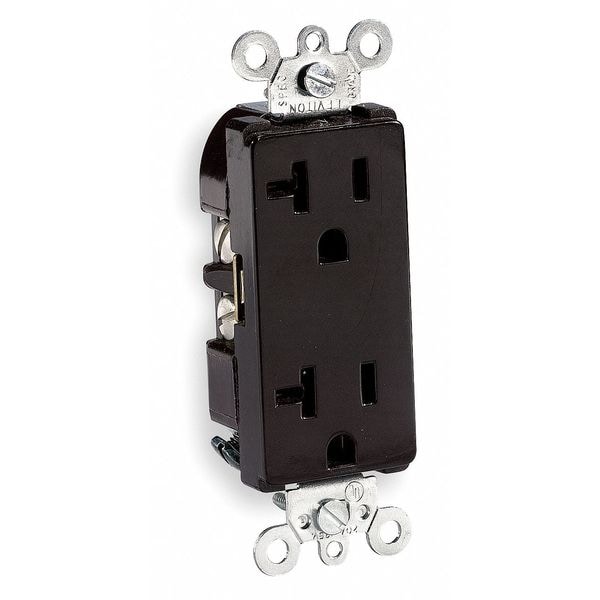

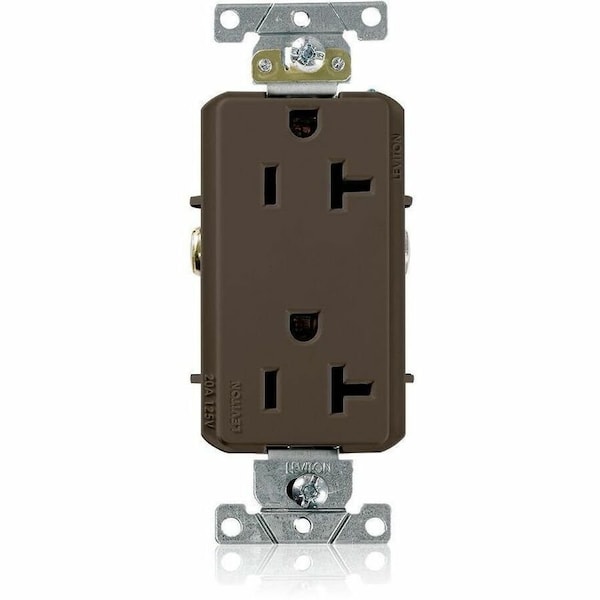

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown 16342 - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

  • Mfr # 16342

  • Zoro # G104393333

product price: $4.57
/ea
Sold in multiples of 10 for $45.70

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16342
Zoro #
G104393333
UPC #
07847778824
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Face Plate Height
2.6 in
Face Plate Width
1.6 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Self-Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C-73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057, UL Listed 498 File E13399
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type - Plugs and Receptacles
Decorator Duplex
Includes
Strap Material
HP
1 hp
Application Environment
Commercial
Material
PBT Polyester Blend (Body and Face)
Wiring Method - Plugs and Receptacles
Side
Sub-Category
Duplex Receptacles
Grade
General Use
Market
Commercial, Industrial
Cover Type
No Cover
Polarized
Yes
Number of Outlets
2
NEMA Enclosure Rating
Not Rated
Minimum Operating Temperature
-40 Degrees F
GFCI
No
UL 94 Flammability Rating
V-2
Housing Material
PBT Polyester
Connection Orientation
Straight
Horsepower Rating
1 hp
Maximum Operating Temperature
140 Degrees F
Contact Material
Brass
Includes Mounting Hardware
Yes
At Rated Voltage
1 HP
Current Limiting
Full Rated Current
Wire
3
Line Contacts
.030" Brass
Flammability
Rated V-2 per UL 94
Body Material
PBT Polyester Blend
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Clamp Nuts
Steel
Grounding Screw
#8 Hex Head, Triple-Drive Brass
ANSI
C-73
Device Type
Duplex Receptacle Outlet
Strap Material
Steel (Galvanized G60)
Screw Terminal Torque
14-18 in-lbs
Dielectric Voltage
Withstands 3000V per UL498
Ground Clips
Brass
Terminal Screws
#8 Triple Drive Brass
Feature 4
Smooth Face
Terminal Accom.
14-10 AWG
Operating Temperature
-40°C to 60°C
Pole
2
Face Material
PBT Polyester Blend
Termination
Side Wire
Temperature Rise
Max 30C temperature rise at full rated current

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable, Standards ANSI C73, NEMA WD-1 and WD-6
