Shop LEVITON

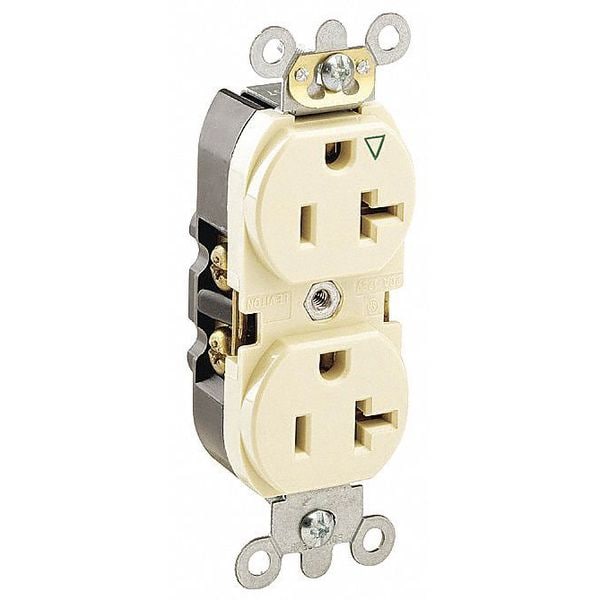

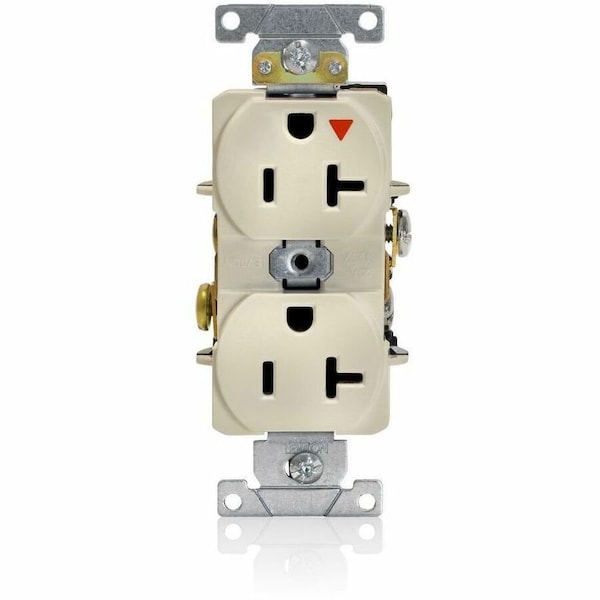

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Light Almond

  • Mfr # 5362-IGT

  • Zoro # G204393226

product price:
$
7.99
/ea
Sold in multiples of 10 for $79.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5362-IGT
Zoro #
G204393226
UPC #
07847733476
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in
Maximum Wire Size
10 AWG
Face Plate Height
2.8 in
Face Plate Width
1.3 in
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Light Almond
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL 498, UL Federal Specification WC-596
Flange Type
Non-Flanged
Material
Nylon (Body and Face)
HP
1 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Sub-Category
Duplex Receptacles
Wiring Method - Plugs and Receptacles
Back and Side
Application Environment
Heavy-Duty Industrial Grade
Outlet Type - Plugs and Receptacles
Duplex
GFCI
No
UL 94 Flammability Rating
V-2
Cover Type
No Cover
Polarized
Yes
Horsepower Rating
1 hp
Grade
Federal Specification
Maximum Operating Temperature
140 Degrees F
Contact Material
Phosphor Bronze
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-40 Degrees F
Market
Commercial, Industrial
Housing Material
Nylon
Number of Outlets
2
NEMA Enclosure Rating
Not Rated
Connection Orientation
Straight
Current Limiting
Full Rated Current
Strap Material
Galvanized Steel
Dielectric Voltage
Withstands 2000V per UL498
Termination
Back or Side Wire
ANSI
C-73
Flammability
Rated V-2 per UL 94
Torque Range
14-16 inch pounds
Screw Terminal Torque
14-18 in-lbs
Feature 4
Smooth Face
Grounding Screw
Brass 8-32
Wire
3
At Rated Voltage
1 HP
Body Material
Nylon
Device Type
Duplex Receptacle Outlet
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Line Contacts
Phosphor Bronze
UL498
File E13399
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Operating Temperature
-40°C to 60°C
Terminal Screws
Plated Brass
Isolated Ground System
Brass
CSA C22.2 No. 42
File 152105
UL Fed Spec WC-596
File E13399
Clamp Nuts
Galvanized Steel
Terminal Accom.
14-10 AWG
Pole
2
Face Material
Nylon

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Light Almond, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
