  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

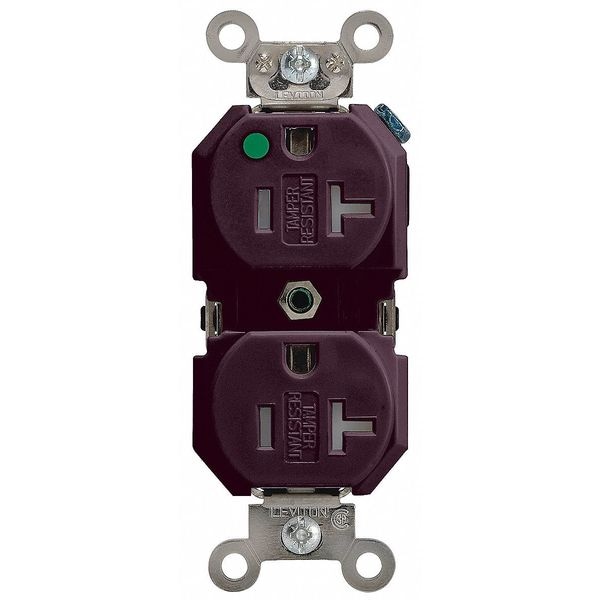

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown 8300-SG - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

  • Mfr # 8300-SG

  • Zoro # G404836523

product price: $17.99
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8300-SG
Zoro #
G404836523
UPC #
07847705740
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NOM 057, UL 498HG File E13399, UL Federal Specification WC-596 File E13399
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Application Environment
Extra Heavy-Duty Hospital Grade
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type - Plugs and Receptacles
Duplex
HP
1 hp
Material
Nylon (Body and Face)
Wiring Method - Plugs and Receptacles
Back and Side
Tamper Resistant
Yes
Sub-Category
Duplex Receptacles
NEMA Enclosure Rating
Not Rated
Contact Material
Nickel-Plated Brass
Housing Material
Nylon
Horsepower Rating
1 hp
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-40 Degrees F
GFCI
No
Connection Orientation
Straight
Cover Type
No Cover
Polarized
Yes
Grade
Hospital Grade Fed. Spec.
Number of Outlets
2
Screw Terminal Torque
14-18 in-lbs
Line Contacts
Nickel-Plated Brass Triple-Wipe .031 Thick
Grounding Screw
Nickel-Plated Brass 8-32
UL Fed Spec WC-596
File E13399
Clamp Nuts
Nickel-Plated Brass
Pole
2
Termination
Back or Side Wire
Face Material
Nylon
Device Type
Duplex Receptacle Outlet
Operating Temperature
-40°C to 60°C
Body Material
Nylon
Wire
3
Yoke
Nickel-Plated Brass
Feature
Tamper-Resistant|Smooth Face
Terminal Screws
Nickel-Plated Brass 10-32
Terminal ID
Brass-Hot, Green-Ground, White-Neutral
ANSI
C-73
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
CSA C22.2 No. 42
File 152105
Dielectric Voltage
Withstands 2000V per UL498
Strap Material
Nickel Plated Brass
Standards and Certifications
UL/CSA
UL498HG
File E13399
Current Limiting
Full Rated Current
Ground Clips
Nickel-Plated Brass
Terminal Accom.
14-10 AWG

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant
