  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

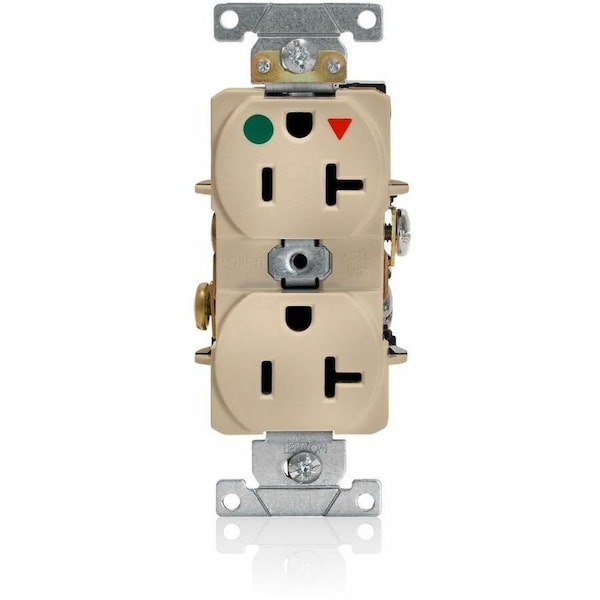

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory 8300-IGI - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

  • Mfr # 8300-IGI

  • Zoro # G604393246

product price: $29.29
/ea
Sold in multiples of 10 for $292.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8300-IGI
Zoro #
G604393246
UPC #
07847705735
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Face Plate Width
1.3 in
Face Plate Height
2.8 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL Federal Specification WC-596, UL 498HG, cULus
Resistance Properties
Abuse Tolerance
Flange Type
Non-Flanged
Outlet Type - Plugs and Receptacles
Duplex
HP
1 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Application Environment
Heavy-Duty Hospital Grade
Wiring Method - Plugs and Receptacles
Back and Side
Material
PBT Polyester Blend (Body and Face)
Sub-Category
Duplex Receptacles
UL 94 Flammability Rating
V-2
Polarized
Yes
NEMA Enclosure Rating
Not Rated
Minimum Operating Temperature
-40 Degrees F
Number of Outlets
2
Horsepower Rating
1 hp
Grade
Hospital Grade Fed. Spec.
Maximum Operating Temperature
140 Degrees F
GFCI
No
Cover Type
No Cover
Contact Material
Phosphor Bronze
Includes Mounting Hardware
Yes
Housing Material
PBT Thermoplastic Polyester
Connection Orientation
Straight
Certification/Listing
cULus, NOM-ANCE
Shutter Mechanism
Acetal
Applicable Standards
UL 498, Fed Spec W-C-569, CSA 22.2 No. 42
ANSI
C-73
Strap Material
Steel (Galvanized G60)
Mounting Screws
Triple-Drive Plated Steel
Body Material
PBT Polyester Blend
Terminal Clamp
Brass
Current Limiting
Full Rated Current
Terminal Screws
#8 Triple-Drive Brass
UL498HG
File E13399
Wire
3
Terminal Accom.
14-10 AWG
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Feature 4
Smooth Face
Ground Contacts
0030" Brass
Face Material
PBT Polyester Blend
Grounding Screw
#8 Hex Head, Triple-Drive Bass
Wire Type
Stranded or Solid
Function
Isolated Ground
CSA C22.2 No. 42
File 152105
Clamp Nuts
0.030" Brass
Operating Temperature
-40°C to 60°C
UL Fed Spec WC-596
File E13399
Termination
Back or Side Wire
Device Type
Duplex Receptacle Outlet
Flammability
Rated V-0 per UL 94
Temperature Rise
Max 30C temperature rise at full rated current
Ground Clips
Brass
Dielectric Voltage
Withstands 3000V min
At Rated Voltage
1 HP
Pole
2
Line Contacts
0.030" Phosopher Bronze
Screw Terminal Torque
14-18 in-lbs

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material PBT Thermoplastic Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
