  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Orange

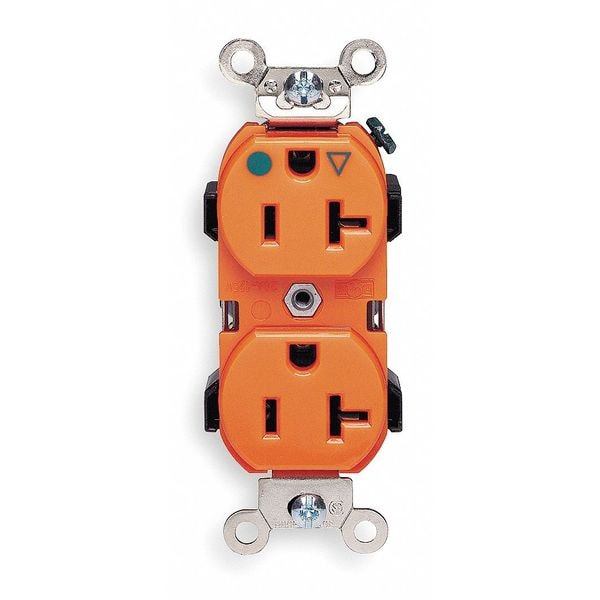

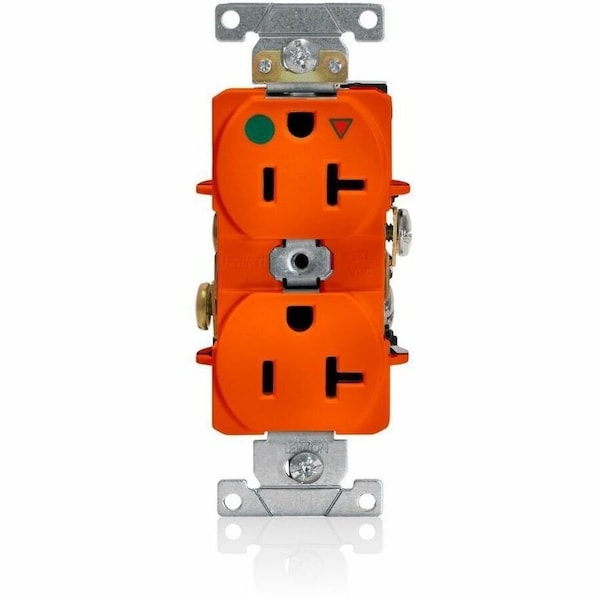

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Orange 08300-558-OIG - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Orange

  • Mfr # 08300-558-OIG

  • Zoro # G204836501

product price: $25.64
/ea
Sold in multiples of 10 for $256.40

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
08300-558-OIG
Zoro #
G204836501
UPC #
07847705738
Country of Origin
Mexico

Dimensions

Face Plate Height
2.8 in
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG
Overall Depth
1.1 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Orange
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL Federal Specification WC-596, UL 498HG
Resistance Properties
Abuse Tolerance
Flange Type
Non-Flanged
Material
PBT Polyester Blend (Body and Face)
HP
1 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Application Environment
Heavy-Duty Hospital Grade
Outlet Type - Plugs and Receptacles
Duplex
Wiring Method - Plugs and Receptacles
Back and Side
Sub-Category
Duplex Receptacles
NEMA Enclosure Rating
Not Rated
Horsepower Rating
1 hp
Maximum Operating Temperature
140 Degrees F
Polarized
Yes
UL 94 Flammability Rating
V-2
Connection Orientation
Straight
Number of Outlets
2
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
Cover Type
No Cover
Contact Material
Phosphor Bronze
Grade
Hospital Grade Fed. Spec.
Housing Material
PBT Thermoplastic Polyester
GFCI
No
UL Fed Spec WC-596
File E13399
Device Type
Duplex Receptacle Outlet
Termination
Back or Side Wire
Grounding Screw
#8 Hex Head, Triple-Drive Bass
CSA C22.2 No. 42
File E152105
Face Material
PBT Polyester Blend
UL498HG
File E13399
At Rated Voltage
1 HP
Certification/Listing
cULus, NOM-ANCE
Function
Isolated Ground
Wire
3
Shutter Mechanism
Acetal
Mounting Screws
Triple-Drive Plated Steel
Clamp Nuts
0.030" Brass
Temperature Rise
Max 30C temperature rise at full rated current
Ground Contacts
0030" Brass
Pole
2
Body Material
PBT Polyester Blend
Current Limiting
Full Rated Current
Line Contacts
0.030" Phosopher Bronze
ANSI
C-73
Flammability
Rated V-0 per UL 94
Terminal Clamp
Brass
Wire Type
Stranded or Solid
Strap Material
Steel (Galvanized G60)
Dielectric Voltage
Withstands 3000V min
Screw Terminal Torque
14-18 in-lbs
Feature 4
Smooth Face
Operating Temperature
-40°C to 60°C
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Ground Clips
Brass
Applicable Standards
UL 498, Fed Spec W-C-569, CSA 22.2 No. 42
Terminal Screws
#8 Triple-Drive Brass
Terminal Accom.
14-10 AWG

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Orange, Housing Material PBT Thermoplastic Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
