  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Red

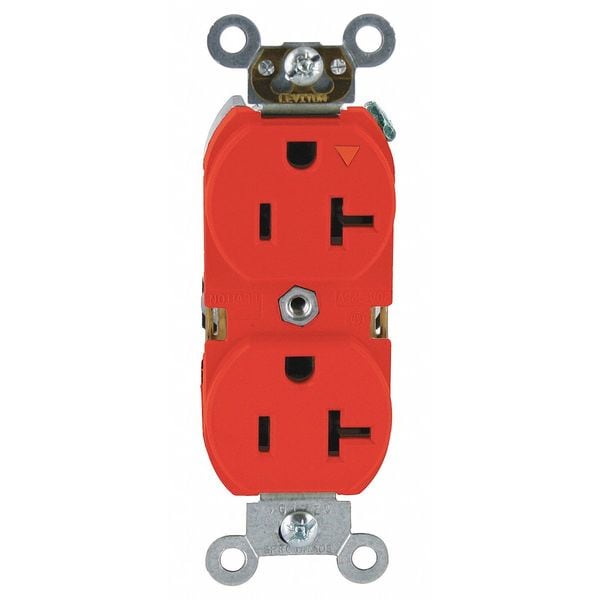

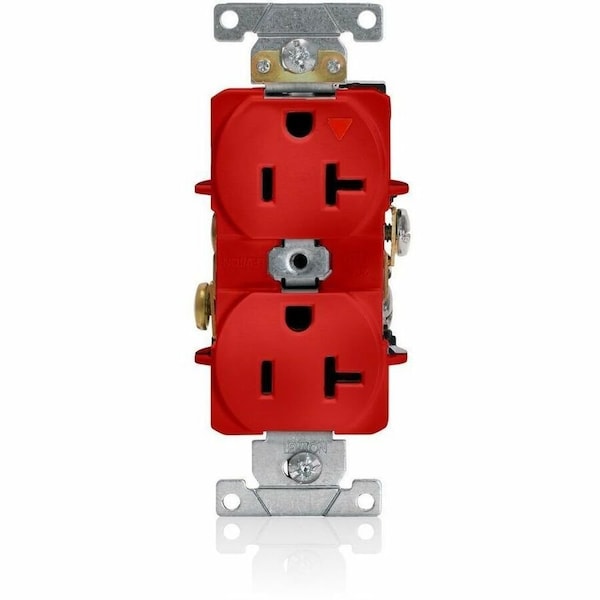

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Red 5362-IGR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Red

  • Mfr # 5362-IGR

  • Zoro # G704393214

product price: $7.39
/ea
Sold in multiples of 10 for $73.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5362-IGR
Zoro #
G704393214
UPC #
07847705330
Country of Origin
Mexico

Dimensions

Face Plate Width
1.3 in
Overall Depth
1.1 in
Face Plate Height
2.8 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Red
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL 498, UL Federal Specification WC-596
Flange Type
Non-Flanged
Material
Thermoplastic Nylon (Body and Face)
Wiring Method - Plugs and Receptacles
Back and Side
Application Environment
Heavy-Duty Industrial Grade
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Sub-Category
Duplex Receptacles
HP
1 hp
Outlet Type - Plugs and Receptacles
Duplex
NEMA Enclosure Rating
Not Rated
UL 94 Flammability Rating
V-2
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
140 Degrees F
Horsepower Rating
1 hp
GFCI
No
Polarized
Yes
Contact Material
Phosphor Bronze
Housing Material
Thermoplastic Nylon
Market
Commercial, Industrial
Connection Orientation
Straight
Includes Mounting Hardware
Yes
Grade
Federal Specification
Cover Type
No Cover
Number of Outlets
2
UL Fed Spec WC-596
File E13399
Operating Temperature
-40°C to 60°C
Termination
Back or Side Wire
Terminal Accom.
14-10 AWG
Feature 4
Smooth Face
Strap Material
Galvanized Steel
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Line Contacts
Phosphor Bronze
Wire
3
Pole
2
Grounding Screw
Brass 8-32
Current Limiting
Full Rated Current
Flammability
Rated V-2 per UL 94
Screw Terminal Torque
14-18 in-lbs
ANSI
C-73
Isolated Ground System
Brass
Body Material
Thermoplastic Nylon
Dielectric Voltage
Withstands 2000V per UL498
Torque Range
14-16 inch pounds
Terminal Screws
Plated Brass
Face Material
Thermoplastic Nylon
Device Type
Duplex Receptacle Outlet
Clamp Nuts
Galvanized Steel
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
UL498
File E13399
CSA C22.2 No. 42
File 152105
At Rated Voltage
1 HP

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Thermoplastic Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
