  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

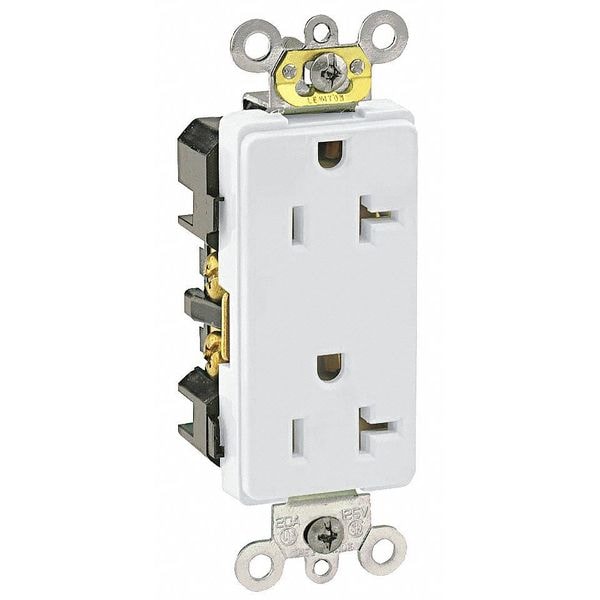

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White 16362-W - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

  • Mfr # 16362-W

  • Zoro # G204393349

product price: $7.99
/ea
Sold in multiples of 2 for $15.98

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16362-W
Zoro #
G204393349
UPC #
07847781946
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Face Plate Width
1.3 in
Face Plate Height
2.6 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-6, UL 498 File E13399
Flange Type
Non-Flanged
Wiring Method - Plugs and Receptacles
Back and Side
Material
Thermoplastic Nylon (Body and Face)
Outlet Type - Plugs and Receptacles
Decorator Duplex
HP
1 hp
Includes
Strap Material
Sub-Category
Duplex Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Application Environment
Heavy-Duty Industrial Grade
UL 94 Flammability Rating
V-2
Contact Material
Brass
Includes Mounting Hardware
Yes
NEMA Enclosure Rating
Not Rated
GFCI
No
Housing Material
Thermoplastic
Polarized
Yes
Grade
Federal Specification
Market
Industrial
Number of Outlets
2
Horsepower Rating
1 hp
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
Cover Type
No Cover
Maximum Operating Temperature
140 Degrees F
Line Contacts
Brass Triple-Wipe 0.040 Thick
Flammability
Rated V-2 per UL 94
Feature 4
Smooth Face
CSA C22.2 No. 42
File 152105
Body Material
Thermoplastic Nylon
Dielectric Voltage
Withstands 2000V per UL498
UL498
File E13399
Temperature Rise
Max 30C at 250 cycles OL at 200 pct rated current
Wire
3
Terminal Screws
Brass 10-32
ANSI
C-73
Termination
Back or Side Wire
Face Material
Thermoplastic Nylon
Strap Material
Zinc-Plated Steel
Device Type
Duplex Receptacle Outlet
Grounding Screw
Brass 8-32
Clamp Nuts
Zinc-Plated Steel
Screw Terminal Torque
14-18 in-lbs
Ground Clips
Brass-Plated
Current Limiting
Full Rated Current
Terminal Accom.
14-10 AWG
Pole
2
At Rated Voltage
1 HP
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Operating Temperature
-40°C to 60°C

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
