  11. Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, Almond, 2,400 sq ft, Fluorescent, Incandescent, LED

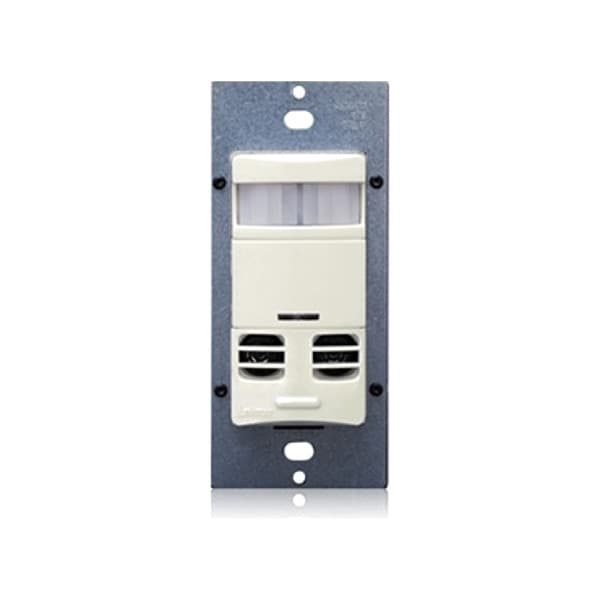

Leviton Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, Almond, 2,400 sq ft, Fluorescent, Incandescent, LED OSSMD-GAT - main

Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, Almond, 2,400 sq ft, Fluorescent, Incandescent, LED

  • Mfr # OSSMD-GAT

  • Zoro # G604393451

product price: $142.86
/ea
Free Shipping & Returns

Key Features

Use With - Motion Sensing and Dimming
1/4 HP Motor
Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Time Delay - Motion Sensor
30 sec to 30 min
Coverage Angle - Motion Sensor
180 Degrees
Max. Capacity @ 277VAC
10A (LED), 1200VA (Fluorescent), 2700VA (Fluorescent)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OSSMD-GAT
Zoro #
G604393451
UPC #
078477509098
Country of Origin
United States

Dimensions

Overall Height
4.06 in
Overall Width
1.75 in
Overall Depth
1.83 in
Size
Height 4.06" (103.2mm), Width 1.75" (44.4mm), Depth 1.83" (47mm), Install Depth 1.35" (34.4mm), Install Height 2.06" (66.2mm)

Details

Use With - Motion Sensing and Dimming
1/4 HP Motor
Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Time Delay - Motion Sensor
30 sec to 30 min
Item
Occupancy Sensor
Coverage Angle - Motion Sensor
180 Degrees
Max. Capacity @ 277VAC
10A (LED), 1200VA (Fluorescent), 2700VA (Fluorescent)
Color
Almond
Max. Capacity @ 120VAC
10A (LED), 1200V (Fluorescent), 800VA (Fluorescent), 800W (Incandescent)
Standards
ASHRAE 90.1, CSA Certified, ETL/cETL Listed, FCC Approved, IECC, NOM, Title 24, Part 6, USMCA Compliant
Lighting Technology
Fluorescent, Incandescent, LED
Communication Method
Hard Wired
Time Delay
30s-30m
Coverage Angle
180 Degrees
Minimum Operating Temperature
32 Degrees F
Minimum Time Delay
30 sec
Manufacturer Warranty
5 yr
Sensor Operation
Occupancy, Photocell, Vacancy
Maximum Coverage Area
2,400 sq ft
Series
Decora
Time Delay Adjustment Method
Adaptive
Load Rating @ 120V AC
1,200VA, Fluorescent, 10A, LED, 800VA, Fluorescent, 800W, Incandescent
Compatible with Series
Switching Only (universal)
Coverage Type
Small Motion
Maximum Time Delay
30 min
Installation Location
Wall Mount
Load Rating @ 277V AC
10A (LED), 1200VA (Fluorescent), 2700VA (Fluorescent)
Maximum Operating Temperature
104 Degrees F
Storage Temperature Range
14° to 185°F (-10° to 85°C)
Wiring
Primary Relay: No. 16 AWG leads: Line: Black, Load: Blue Ground: Green, White: Neutral (where provided) - Secondary Relay: No. 16 AWG isolated contact leads: (2) Red
Application
Private and Executive Offices, Conference Rooms, Classrooms, Restrooms, Storage Areas, Training Areas, Multimedia Rooms, Day Care Centers, Lounges, Retrofits, Bi-Level or A/B switching, Multi-location Switching
Neutral Wire Connection
Not Required
Sensor Technology
Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US)
Operating Temperature
32° to 104°F (0° to 40°C)
Switch Type
Single-Pole, Dual Relay
Power Consumption
120V 140mW, 277V 360mW
Relative Humidity
20% to 90% non-condensing
Pattern
180°
Grade
Commercial
USMCA Compliant
Yes
Technology
Multi-Technology PIR/Ultrasonic
Maximum Detection Distance
40 ft
Number of Buttons
2
Number of Gangs
1
Neutral Required
No
Includes Wall Plate
Wall Plate Not Included
Rated Frequency
50/60 Hz
Horsepower Rating
1/4 hp
Nightlight
No
Includes Dimming Switch
Dimming Switch Not Included
Fan Rated
Yes
Includes Motion Sensor
Yes
Operating Voltage
120/230/277V AC

Description

Occupancy Sensor, Number of Buttons 2, Sensor Operation Occupancy, Photocell, Vacancy, Compatible with Series Switching Only (universal), Lighting Technology Fluorescent, Incandescent, LED, Operating Voltage 120/230/277V AC, Sensing Technology Passive Infrared (PIR)/Ultrasonic, Load Rating @ 120V AC 1,200VA (Fluorescent), 10A (LED), 800VA (Fluorescent), 800W (Incandescent), Communication Method Hard Wired, Maximum Coverage Area 2,400 sq ft, Neutral Required No, Color Light Almond, Nightlight No
