Shop LEVITON

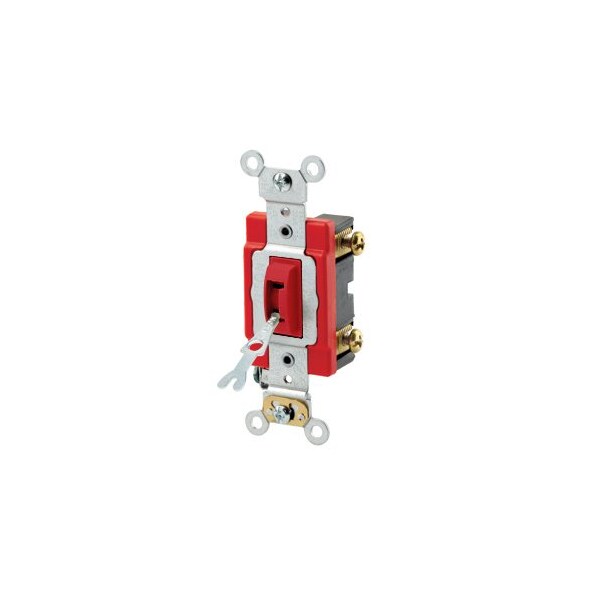

Wall Switch, 1 hp, Locking, 20 A, Red

  • Mfr # 1221-2RL

  • Zoro # G522586379

product price:
$
24.19
/ea

Key Features

Wiring Method
Back/Side
Wire Connection Type
Screw Terminals
Contact Material
Silver Alloy
Illuminated
No
Voltage Rating
120/277V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1221-2RL
Zoro #
G522586379
UPC #
78477358047
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Overall Width
1.3 in
Overall Height
4.1 in

Details

Wiring Method
Back/Side
Wire Connection Type
Screw Terminals
Contact Material
Silver Alloy
Illuminated
No
Voltage Rating
120/277V AC
Current Rating
20 A
Maximum Operating Temperature
65 Degrees C
Switch Material
Thermoplastic
Strap Material
Steel
Locking Style
Fork Key
Features
10-Year Limited, Withstands 1,500V for 1 minute
Grounding
Grounded
Color
Red
Minimum Operating Temperature
-40 Degrees C
Switch Type
Single Pole
Resistance Properties
Tamper Resistant
Number of Switches
1
Switch Function
Maintained
Horsepower Rating
1 hp
Market
Industrial
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Housing Material
Thermoplastic
Item
Wall Switch

Description

Wall Switch, Color Red, Current Rating 20 A, Illuminated No, Pilot Light No, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back/Side, Horsepower Rating 1 hp, Locking Style Fork Key, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Tamper Resistant, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed, Strap Material Steel, Switch Style Locking
