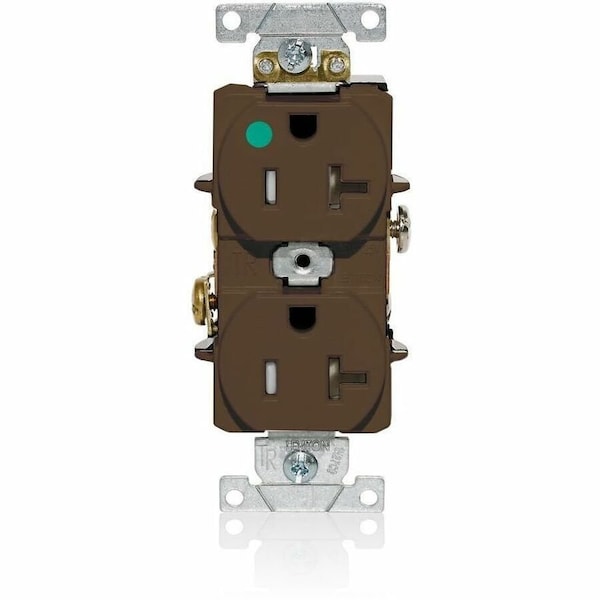

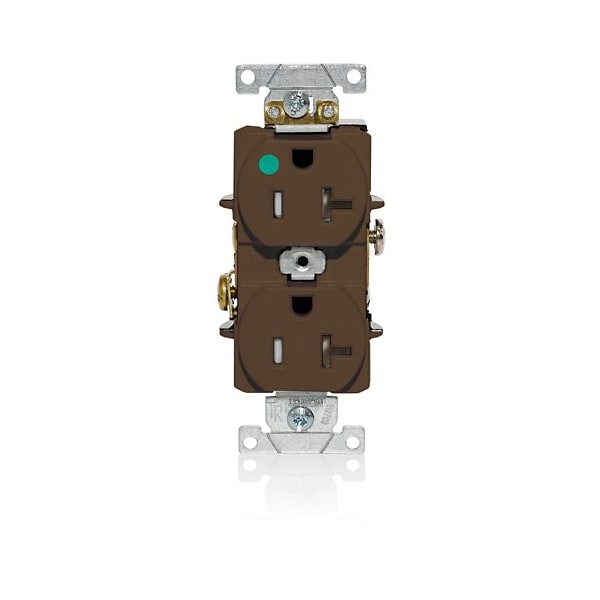

Duplex Outlet, Brown 20A, 125V, TR
Mfr # T8300
Zoro # G622982231
product price:Â
$
17.15
/ea
Key Features
Grade
Hospital Grade
Grounding
Grounded
Face Plate Width
1.4 in
Maximum Operating Temperature
75 Degrees C
Maximum Wire Size
10 AWG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- T8300
- Zoro #
- G622982231
- UPC #
- 078477896129
- Country of Origin
- Mexico
Dimensions
- Face Plate Width
- 1.4 in
- Maximum Wire Size
- 10 AWG
- Face Plate Height
- 2.8 in
- Minimum Wire Size
- 14 AWG
- Overall Depth
- 1.2 in
- Mount Hole Center-to-Center Height
- 3.3 in
Description
Tamper-Resistant Duplex Receptacle, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Brown, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-0
