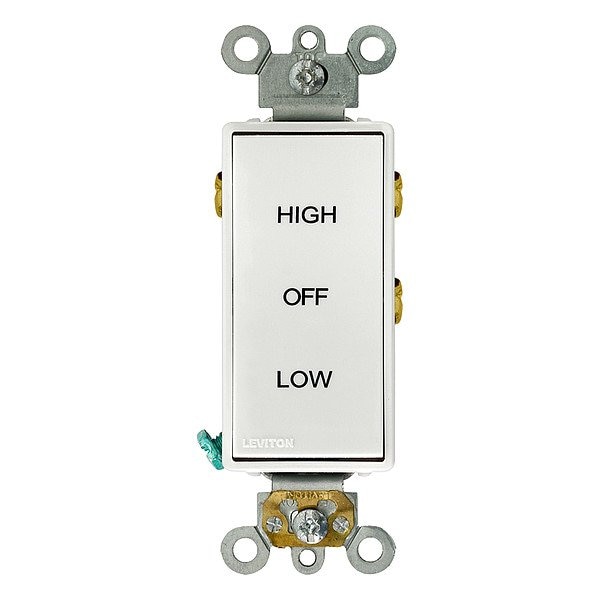

Wall Switch, 1/2 hp, Rocker, 15 A, White
- Mfr # 5685-W
- Zoro # G022587210
product price:Â
$
102.99
/ea
Free Shipping & Returns
Key Features
Market
Commercial
Switch Function
Maintained
Switch Material
Thermoplastic
Wiring Method
Back/Side
Grounding
Grounded
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 5685-W
- Zoro #
- G022587210
- UPC #
- 78477468371
- Country of Origin
- Mexico
- Market
- Commercial
- Switch Function
- Maintained
- Switch Material
- Thermoplastic
- Wiring Method
- Back/Side
- Grounding
- Grounded
- Number of Switches
- 1
- Item
- Wall Switch
- Housing Material
- Thermoplastic
- Strap Material
- Steel
- Current Rating
- 15 A
- Maximum Operating Temperature
- 65 Degrees C
- Horsepower Rating
- 1/2 hp
- Minimum Operating Temperature
- -40 Degrees C
- Voltage Rating
- 120/277V AC
- Color
- White
- Standards
- ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20
- Illuminated
- Yes
- Features
- 10-Year Limited, Withstands 1,500V for 1 minute
- Switch Type
- Single Pole/Double Throw
- Wire Connection Type
- Screw Terminals
- Wire Color
- White
Dimensions
- Overall Width
- 1.3 in
- Switch Height
- 2.6 in
- Maximum Wire Size
- 10 AWG
- Minimum Wire Size
- 14 AWG
- Overall Height
- 4.1 in
- Fits Chest Size
- 10-Year Limited, Withstands 1,500V for 1 minute
Description
Wall Switch, Color White, Current Rating 15 A, Illuminated Yes, Pilot Light Yes, Switch Function Maintained, Switch Type Single Pole/Double Throw, Voltage Rating 120/277V AC, Wiring Method Back/Side, Horsepower Rating 1/2 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Standards ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20, Strap Material Steel, Switch Style Rocker, Wire Connection Type Screw Terminals
