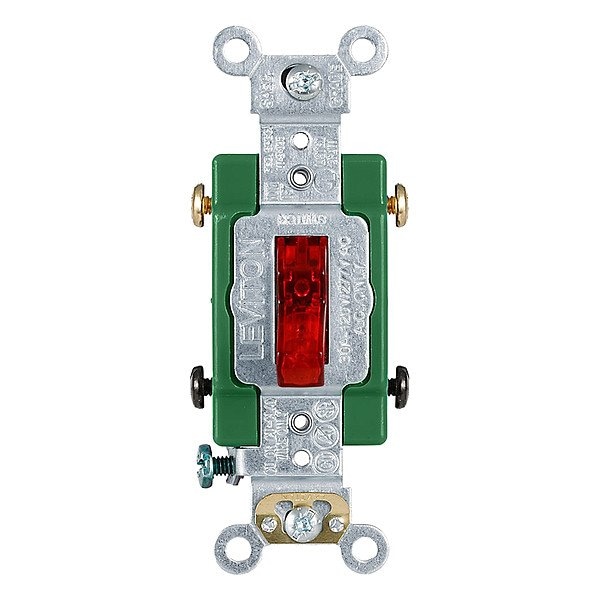

Wall Switch, 2 hp, Toggle, 30 A, Red
Mfr # 3032-PLR
Zoro # G122587356
product price:Â
$
43.75
/ea
Key Features
Maximum Operating Temperature
65 Degrees C
Grounding
Grounded
Maximum Wire Size
10 AWG
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Minimum Wire Size
14 AWG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 3032-PLR
- Zoro #
- G122587356
- UPC #
- 78477781494
- Country of Origin
- Mexico
- Maximum Operating Temperature
- 65 Degrees C
- Grounding
- Grounded
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Illuminated
- Yes
- Wiring Method
- Back/Side
- Wire Connection Type
- Screw Terminals
- Features
- 10-Year Limited, Withstands 1,500V for 1 minute
- Current Rating
- 30 A
- Market
- Industrial
- Horsepower Rating
- 2 hp
- Switch Function
- Maintained
- Contact Material
- Silver Alloy
- Strap Material
- Steel
- Housing Material
- Thermoplastic
- Switch Type
- Double Pole
- Color
- Red
- Voltage Rating
- 120V AC
- Minimum Operating Temperature
- -40 Degrees C
- Switch Material
- Thermoplastic
- Number of Switches
- 1
- Item
- Wall Switch
Description
Wall Switch, Color Red, Current Rating 30 A, Illuminated Yes, Pilot Light Yes, Switch Function Maintained, Switch Type Double Pole, Voltage Rating 120V AC, Wiring Method Back/Side, Horsepower Rating 2 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed, Strap Material Steel, Switch Style Toggle, Wire Connection Type Screw Terminals, Contact Material Silver Alloy
