Shop LEVITON

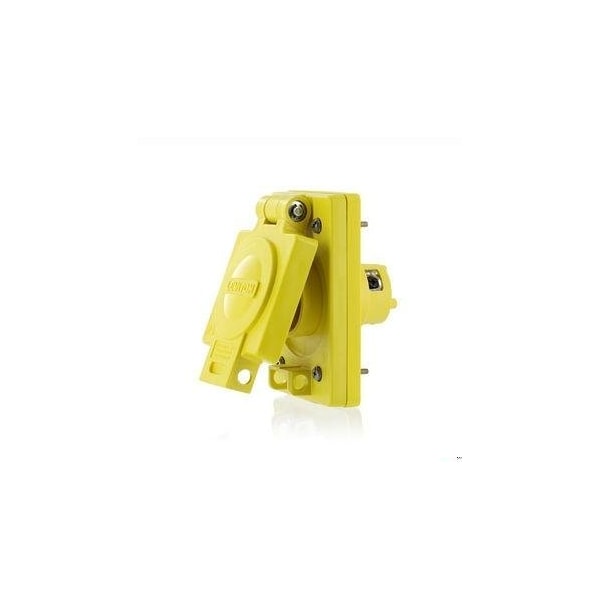

Watertight Locking Inlet, L5-15, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

  • Mfr # 64W47
  • Zoro # G415864775
product price:
$
120.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
64W47
Zoro #
G415864775
UPC #
078477519110
Country of Origin
Mexico
Item
Watertight Locking Inlet
NEMA Receptacle Configuration
L5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Yellow
Mount Type
Flush
Cover Type
Locking Flip-Up Cover
Flange Type
Flanged
Standards
ANSI, CSA C22.2 No. 42, NEMA, NOM, UL498
Resistance Properties
Chemical Resistant, Corrosion Resistant, Heat Resistant, Impact Resistant, Watertight
IP Rating
IP66
Wiring Style
Standard
Flange Material
Nylon
NEMA Enclosure Rating
12, 4, 4X
Shrouded
Yes
Housing Material
Nylon
Number of Blades
3
Includes Mounting Hardware
Yes
NEMA Plug Configuration
L5-15P
Market
Industrial
For Environment
Wet
Maximum Operating Temperature
140 Degrees F
Midget Locking
No
Flange Shape
Rectangular
Blade Material
Nickel-Plated Brass
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Number of Gangs
1
UL 94 Flammability Rating
V-2
Includes
Cover
Features
Beveled Housing Prevents Snagging
Number of Outlets
1
Series
Insulgrip
Grade
Federal Specification
Polarized
Yes
Horsepower Rating
1/2 hp

Description

Locking Inlet, Cover Type Flip-Up Cover, Current Rating 15 A, Flange Material Nylon, Flange Shape Rectangular, Housing Color Yellow, IP Rating IP66, Mount Type Flush, NEMA Enclosure Rating 3R, 4, 4X, 6, 6P, NEMA Plug Configuration L5-15P, Number of Blades 3, Number of Poles 2, Phase Single, Resistance Properties Chemical Resistant, Corrosion Resistant, Moisture Resistant, UV/Sunlight Resistant, Watertight, Weather Resistant, Voltage Rating 125V AC, Wiring Style Standard, Face Diameter 1.67 in
