Shop LIBERTY PUMPS

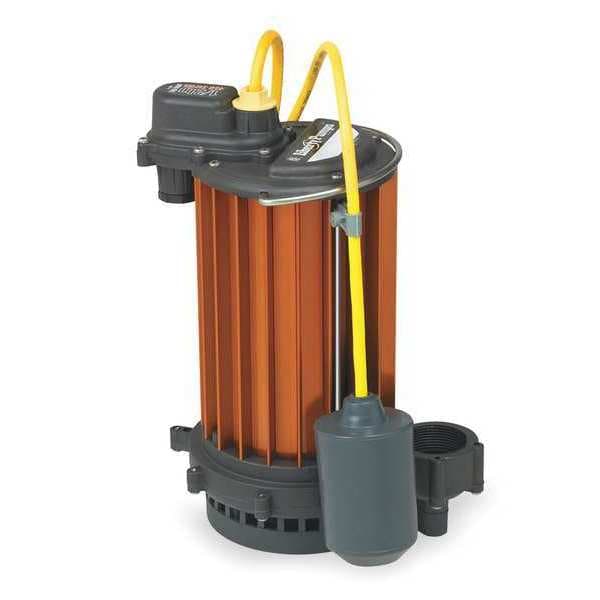

1/2 HP 1-1/2" Submersible Sump Pump 115 Wide Angle Piggy-Back

  • Mfr # HT453

  • Zoro # G1403552

product price:
$
439.99
/ea
Free Shipping & Returns

Key Features

Cord Length
10 ft
Discharge NPT
1-1/2"
Housing Material
ALuminum
HP
1/2
Hz
60
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HT453
Zoro #
G1403552
UPC #
671812114324
Country of Origin
United States

Dimensions

Cord Length
10 ft
Diameter
9-5/8"
Max. Diameter Solids
3/8 in
Cord Length - Pumps
10 ft.
Max. Dia. Solids
3/8"
Height
12-1/2"
Min. Sump Pit Dia.
14 in
Manufacturers Warranty Length
3 yr
Overall Height
11 1/4 in
Body Dia.
9 5/8 in
Minimum Water Depth
14 in
Discharge Dia.
1 1/2 in
Sump Pit Diameter - Minimum
14 in
Discharge Diameter
1 1/2 in
Solids Diameter - Maximum
3/8 in
Body Diameter
9 5/8 in

Details

Discharge NPT
1-1/2"
Housing Material
ALuminum
HP
1/2
Hz
60
Impeller Material
Engineered Polymer
Max. Head
34 ft
Max. Temp.
180 Degrees F
Motor RPM
3450
Motor Type
PSC
Shaft Seal
Ceramic, Buna N, Stainless Steel
Voltage
115
Phase
Single
Switch Type
Wide Angle Piggy-Back
GPM of Water @ 10 Ft. of Head
43
Impeller Material - Pumps
Engineered Polymer
Base Material
Fiberglass Reinforced Nylon
Off Point
3 1/4 in
Mechanical Seal
Buna-N, CMC, Stainless Steel
Features
Mercury Free Float
GPM of Water @ 15 Ft. of Head
39
Item - Sump Pumps
Submersible Sump Pump
Max. Liquid Temp.
180 Degrees F
Agency Compliance
CSA/cUS
Input Phase AC
1
GPM of Water @ 25 Ft. of Head
23
Pump HP
1/2
Pump Body Material
Aluminum
Bearing Type
Ball
Max. Head - Pumps
34 ft.
GPM of Water @ 30 Ft. of Head
11
Item
Submersible Sump Pump
Duty
Continuous
Voltage - Pumps
115VAC
On Point
10.12 in
Switch Type - Pumps
Wide Angle Piggyback
Shaft Seal Material - Pumps
Nitrile Rubber
GPM of Water @ 5 Ft. of Head
48
Amps
7.3 A
GPM of Water @ 20 Ft. of Head
32
Thermal Protection
Yes
Application
Dewatering
Gauge/Conductor
16/3
NEC Cord Designation
SJTW
Alarm Included
No
RPM
3,450 RPM
Body Material
Aluminum
Switch Electrical Connection
Piggyback
Flow Rate @ 20 Ft. of Head
32.0 gpm
Flow Rate @ 15 Ft. of Head
39.0 gpm
Rated Voltage
115V AC
Flow Rate @ 10 Ft. of Head
43 gpm
Duty Cycle
Continuous
Flow Rate @ 5 Ft. of Head
50.0 gpm
Switch Actuation
Tether Float
Discharge
1-1/2 in FNPT
Discharge Standard
NPT
Phase - Pumps
1
Discharge Gender
Female
Rotation Speed - Maximum
3,450 RPM
Motor Housing Material
Aluminum
Hazardous Location Class
Not Rated
Series
HT450-Series
Shaft Seal Material
Nitrile Rubber
Power Source
Corded Electric
Standards
CSA/cUS
Includes Alarm
No Alarm Included
Horsepower
1/2 hp
Frequency
60 Hz
Liquid Temperature - Maximum
180 Degrees F
For Industry
Residential
Operation
Automatic
Current
7.3 A
Impeller Design
Vortex
Installation
Submersible
Flow Rate @ 10 ft of Head
53 gpm
For Media Type
Clear Water
Flow Rate @ 30 ft of Head
12 gpm
Feet of Head - Maximum
34 ft
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Submersible Sump Pump, HP 1/2, Phase - Pumps 1, Rated Voltage 115V AC, Amps 7.3 A, Switch Actuation Tether Float, Switch Electrical Connection Piggyback, Off Point 3 1/4 in, On Point 10.12 in, Body Material Aluminum, Impeller Material Engineered Polymer, Shaft Seal Material - Pumps Nitrile Rubber, Flow Rate @ 5 Ft. of Head 50.0 gpm, Flow Rate @ 10 Ft. of Head 43 gpm, Flow Rate @ 15 Ft. of Head 39.0 gpm, Flow Rate @ 20 Ft. of Head 32.0 gpm, Max. Head 34 ft, Min. Sump Pit Dia. 14 in
