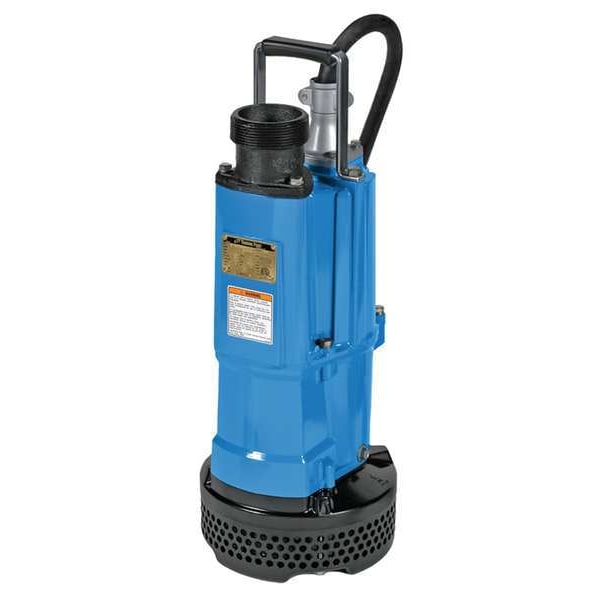

2 HP 3" Plug-In Utility Pump 110V No Switch Included

Mfr # NK3-15
Zoro # G7533294

2,094.99

Free Shipping & Returns

Key Features

Cord Length

32 ft

Discharge NPT

Housing Material

Butadiene Rubber + Natural Rubber + Steel

60 Hz

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: NK3-15
Zoro #: G7533294
UPC #: 894787000281
Country of Origin: Japan

Dimensions

Cord Length: 32 ft
Diameter: 9-7/16"
Max. Diameter Solids: 5/16 in
Min. Sump Pit Dia.: 14 in
Width: 9-7/16"
Cord Length - Pumps: 32 ft.
Cord Size: 12/3
Height: 24-1/2"
Manufacturers Warranty Length: 2 yr
Length: 24-1/2"
Max. Dia. Solids: 5/16"
Body Dia.: 9 7/16 in
Minimum Water Depth: 14 in
Width at Widest Point: 9 1/2 in
Discharge Dia.: 3 in
Overall Height: 24 1/2 in
Solids Diameter - Maximum: 5/16 in
Body Diameter: 9 1/2 in
Depth Pumped - Minimum: 4 1/2 in
Discharge External Diameter: 3 in
Operating Water Depth - Minimum: 14 in
Sump Pit Diameter - Minimum: 14 in

Details

Discharge NPT: 3"
Housing Material: Butadiene Rubber + Natural Rubber + Steel
HP: 2
Hz: 60 Hz
Impeller Material: Ductile Iron
Max. Head: 69 ft
Motor RPM: 3440
Motor Type: PSC
Shaft Seal: Silicone Carbide
Voltage: 110V
Phase: Single
Voltage - Pumps: 120VAC
Handle: Top Carrying
GPM of Water @ 25 Ft. of Head: 89
Pump Body Material: Die Cast Aluminum
Base Material: Steel
GPM of Water @ 5 Ft. of Head: 111
Max. Liquid Temp.: 104 Degrees F
GPM of Water @ 20 Ft. of Head: 96
Amps - Pumps: 23.00/11.50
Agency Compliance: Etl/Cetl
GPM of Water @ 35 Ft. of Head: 74
GPM of Water @ 40 Ft. of Head: 68
Bearing Type: Double Shielded, Permanently Lubricated, High Temperature C3 Ball Bearings Rated for a B-10 Life
Item: Plug-In Utility Pump
Cord Type: 3-Conductor STOW, Resists Water and Oil
GPM of Water @ 15 Ft. of Head: 104
Insulation Class: B
GPM of Water @ 45 Ft. of Head: 60
Item - Dewatering Pumps: Utility/Dewatering Pump
Switch Type - Pumps: No Switch Included
For Use With: Nonflammable Liquids
Duty: Continuous
Switch Type: No Switch Included
Pump RPM: 3440
Input Phase AC: 1
Impeller Material - Pumps: Ductile Iron
Amps: 23.00/11.50
Shaft Seal Material - Pumps: Silicone Carbide
Thermal Protection: Automatic
GPM of Water @ 30 Ft. of Head: 84
GPM of Water @ 10 Ft. of Head: 108
Max. Head - Pumps: 69 ft.
Application: Nonflammable Liquids
Switch Actuation: No Switch Included
Discharge Gender: Male
RPM: 3,440 RPM
Flow Rate @ 5 Ft. of Head: 111 gpm
Discharge Standard: NPT
Flow Rate @ 10 Ft. of Head: 108 gpm
Flow Rate @ 15 Ft. of Head: 104 gpm
Body Material: Aluminum
Discharge: 3 in MNPT
Phase - Pumps: 1
Duty Cycle: Continuous
Rated Voltage: 110/220V AC
Flow Rate @ 20 Ft. of Head: 96 gpm
Pump Type: Construction Site and Residential Dewatering
Shaft Seal Material: Silicone
Power Source: Corded Electric
Discharge External Standard: NPT
Rotation Speed - Maximum: 3,440 RPM
Flow Rate @ 5 ft of Head: 111 gpm
Series: NK
Flow Rate @ 10 ft of Head: 108 gpm
For Media Type: Clear Water
Horsepower: 2 hp
Flow Rate - Maximum: 111 gpm
Feet of Head - Maximum: 69 ft
Standards: Etl/Cetl
Discharge External Gender: Male
Current: 23.00/11.50 A
Liquid Temperature - Maximum: 104 Degrees F
Motor Housing Material: Aluminum
Frequency: 60 Hz
Includes Garden Hose Adapter: No Garden Hose Adapter Included
Volute Material: Rubber
Power Source - TS Only: Corded Electric
Power Source - old: Corded Electric

Description

Plug-In Utility Pump, HP 2, Rated Voltage 110/220V AC, Hz 60, Phase - Pumps 1, Amps 23.00/11.50, Switch Actuation No Switch Included, Body Material Aluminum, Impeller Material Ductile Iron, Shaft Seal Material - Pumps Silicone Carbide, Flow Rate @ 5 Ft. of Head 111 gpm, Flow Rate @ 10 Ft. of Head 108 gpm, Flow Rate @ 15 Ft. of Head 104 gpm, Flow Rate @ 20 Ft. of Head 96 gpm, Max. Head 69 ft, Min. Sump Pit Dia. 14 in, Minimum Water Depth 14 in, Body Dia. 9 7/16 in, Width at Widest Point 9 1/2 in
