  9. 24" x 24" 4/10 HP 41.0 gal. Simplex Sewage System 115V

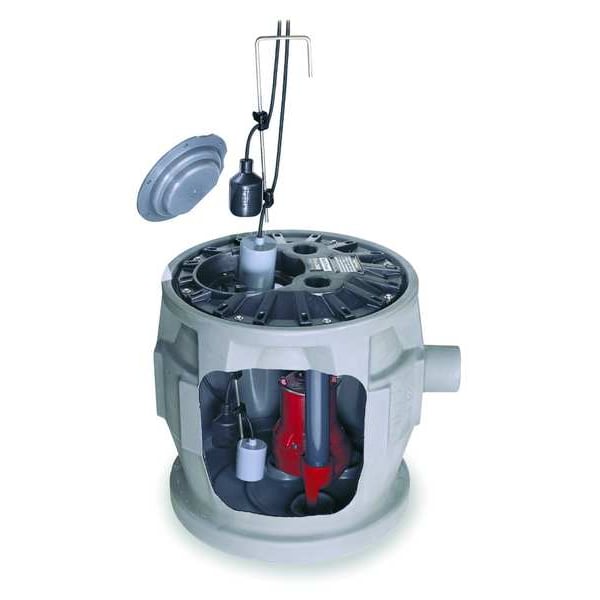

Liberty Pumps 24" x 24" 4/10 HP 41.0 gal. Simplex Sewage System 115V P382LE41 - main

24" x 24" 4/10 HP 41.0 gal. Simplex Sewage System 115V

  • Mfr # P382LE41

  • Zoro # G0331301

product price: $662.99
/ea
Free Shipping & Returns

Key Features

GPM of Water @ 20 Ft. of Head
9
Max Head - Pumps
21 ft.
Input Phase AC
1
Max. Liquid Temp.
140 Degrees F
Cord Size
16 Gauge, 3 Conductor
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P382LE41
Zoro #
G0331301
UPC #
671812110470
Country of Origin
United States

Dimensions

Cord Size
16 Gauge, 3 Conductor
Cord Length - Pumps
10 ft.
Basin Height
24 in
Max. Diameter Solids
2 in
Basin Dia.
24 in
Max. Dia. Solids
2"
Cord Length
10 ft
Vent Size
2 in
Pump Discharge Diameter
2 in
Inlet Dia.
4 in
For Vent Pipe Diameter
2 in
Basin Diameter
24 1/2 in
Inlet Diameter
4 in
Discharge Diameter
2 in
Solids Diameter - Maximum
2 in

Details

GPM of Water @ 20 Ft. of Head
9
Max Head - Pumps
21 ft.
Input Phase AC
1
Max. Liquid Temp.
140 Degrees F
Amps
12
Max. Head - Pumps
21 ft.
Basin Capacity
41 gal
Outlet
2"
Vent
2"
Features
QuickTree Technology with Switch Access Cover Allows Easy Field-Service of Switch
Cover Material
Structural Foam
Inlet
4 in
GPM of Water @ 5 Ft. of Head
122
Pump HP
4/10
Phase
Single
Basin Material
Polyethylene
Switch Type - Pumps
Piggyback Float
Hz
60 Hz
Amps - Pumps
12.00
Item - Sump/Sewage Pump Systems
Simplex Sewage System
Motor RPM
1750
Voltage
115V
Application
Waste Removal
HP
4/10
Item
Sewage Ejector System
GPM of Water @ 15 Ft. of Head
65
GPM of Water @ 10 Ft. of Head
99
Voltage - Pumps
115VAC
Discharge NPT
2" F
Pump Body Material
Polyethylene
Max. Head
21 ft
RPM
1,750 RPM
Flow Rate @ 10 Ft. of Head
99 gpm
Flow Rate @ 5 Ft. of Head
122 gpm
Duty Cycle
Continuous
Alarm Included
No
Rated Voltage
115V AC
Switch Electrical Connection
Piggyback
Switch Actuation
Tether Float
Phase - Pumps
1
Number of Pumps
1
Flow Rate @ 20 Ft. of Head
9 gpm
Flow Rate @ 15 Ft. of Head
65 gpm
Alarm Application
Indoor
Power Source
Corded Electric
Rotation Speed - Maximum
1,750 RPM
Feet of Head - Maximum
20 ft
Frequency
60 Hz
Installation
Floor Standing
Discharge Standard
NPT
Series
P380-Series
Flow Rate @ 10 ft of Head
95 gpm
Liquid Temperature - Maximum
140 Degrees F
Pump Motor Housing Material
Cast Iron
For Media Type
Sewage Water
Impeller Design
Open
Discharge Gender
Female
Horsepower
2/5 hp
Pump Volute Material
Cast Iron
Includes Alarm
No Alarm Included
Discharge Location
Top

Description

Sewage Ejector System, HP 4/10, Number of Pumps 1, Rated Voltage 115V AC, Hz 60 Hz, Phase - Pumps 1, Switch Actuation Tether Float, Switch Electrical Connection Piggyback, Pump Body Material Polyethylene, Basin Material Polyethylene, Flow Rate @ 5 Ft. of Head 122 gpm, Flow Rate @ 10 Ft. of Head 99 gpm, Flow Rate @ 15 Ft. of Head 65 gpm, Flow Rate @ 20 Ft. of Head 9 gpm, Max. Diameter Solids 2 in, Cord Length 10 ft, Max. Liquid Temp. 140 Degrees F, Max. Head 21 ft, RPM 1,750 RPM
