Shop LIBERTY PUMPS

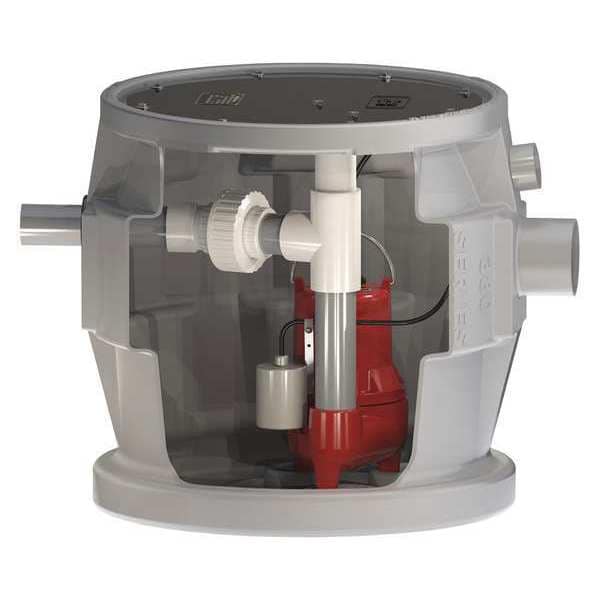

24" x 24" 4/10 HP 41.0 gal. Simplex Sewage System 115V

  • Mfr # P382LE41SD-2

  • Zoro # G5892559

product price:
$
874.99
/ea
Free Shipping & Returns

Key Features

Phase
Single
Item - Sump/Sewage Pump Systems
Simplex Sewage System
Cover Material
Polyethylene
Basin Material
Polyethylene
GPM of Water @ 15 Ft. of Head
65
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P382LE41SD-2
Zoro #
G5892559
UPC #
671812136531
Country of Origin
United States

Dimensions

Height
24"
Diameter
24"
Min. Sump Pit Dia.
18"
Cord Size
16-3
Tank Width
25"
Basin Height
24 in
Basin Dia.
24 in
Width
25"
Manufacturers Warranty Length
3 yr
Length
25"
Tank Length
25"
Cord Length
25 ft
Max. Diameter Solids
2 in
Max. Dia. Solids
2"
Cord Length - Pumps
20 ft.
Inlet Dia.
4 in
Vent Size
2 in
Pump Discharge Diameter
2 in
Inlet Diameter
4 in
Basin Diameter
24 1/2 in
For Vent Pipe Diameter
2 in
Discharge Diameter
2 in
Solids Diameter - Maximum
2 in

Details

Phase
Single
Item - Sump/Sewage Pump Systems
Simplex Sewage System
Cover Material
Polyethylene
Basin Material
Polyethylene
GPM of Water @ 15 Ft. of Head
65
Impeller Material
Engineered Thermoplastic
Motor RPM
1725
Shaft Seal
Carbon/Ceramic
Item
Sewage Ejector System
Max Head - Pumps
20 ft.
Bearing Type
Ball
Thermal Protection
yes
Pump HP
4/10
GPM of Water @ 10 Ft. of Head
99
Off Point
4 1/2 in
Check Valve
No
Outlet
2"
Voltage
115V
Includes
Heavy Duty Submersible Pump, Pre-Assembled Basin with Cover and Controls
Motor Type
Permanent Split Capacitor
Input Phase AC
1
Agency Compliance
CSA Certified
Voltage - Pumps
115VAC
Duty
Continuous
Amps
12.0
Pump Body Material
Polyethylene
Handle
yes
Features
Separate Access Cover, QuickTree(R) Float System
HP
4/10
Housing Material
Polyethylene
Switch Type
Mechanical Float
Basin Capacity
41 gal
Pump RPM
1725
Inlet
4 in
Max. Head - Pumps
20 ft.
Max. Head
20 ft
Base Material
Polyethylene
Application
Waste Removal
GPM of Water @ 20 Ft. of Head
10
On Point
11 1/2 in
Switch Type - Pumps
Float
Amps - Pumps
12.00
GPM of Water @ 5 Ft. of Head
123
Discharge NPT
2" F
Impeller Material - Pumps
Engineered Thermoplastic
Max. Liquid Temp.
140 Degrees F
Hz
60 Hz
Phase - Pumps
1
Switch Actuation
Tether Float
Alarm Included
No
Duty Cycle
Continuous
Flow Rate @ 15 Ft. of Head
65 gpm
Number of Pumps
1
Switch Electrical Connection
Piggyback
Flow Rate @ 5 Ft. of Head
123 gpm
RPM
1,725 RPM
Flow Rate @ 20 Ft. of Head
10 gpm
Flow Rate @ 10 Ft. of Head
99 gpm
Rated Voltage
115V AC
Discharge Standard
NPT
Impeller Design
Open
For Media Type
Sewage Water
Includes Alarm
No Alarm Included
Discharge Location
Top
Power Source
Corded Electric
Rotation Speed - Maximum
1,725 RPM
Feet of Head - Maximum
20 ft
Horsepower
2/5 hp
Discharge Gender
Female
Installation
Floor Standing
Frequency
60 Hz
Flow Rate @ 10 ft of Head
95 gpm
Pump Motor Housing Material
Cast Iron
Standards
CSA Certified
Series
P380-SD-Series
Liquid Temperature - Maximum
140 Degrees F
Pump Volute Material
Cast Iron
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Sewage Ejector System, HP 4/10, Number of Pumps 1, Rated Voltage 115V AC, Hz 60 Hz, Phase - Pumps 1, Switch Actuation Tether Float, Switch Electrical Connection Piggyback, Off Point 4 1/2 in, On Point 11 1/2 in, Pump Body Material Polyethylene, Basin Material Polyethylene, Flow Rate @ 5 Ft. of Head 123 gpm, Flow Rate @ 10 Ft. of Head 99 gpm, Flow Rate @ 15 Ft. of Head 65 gpm, Flow Rate @ 20 Ft. of Head 10 gpm, Max. Diameter Solids 2 in, Cord Length 25 ft, Max. Liquid Temp. 140 Degrees F
