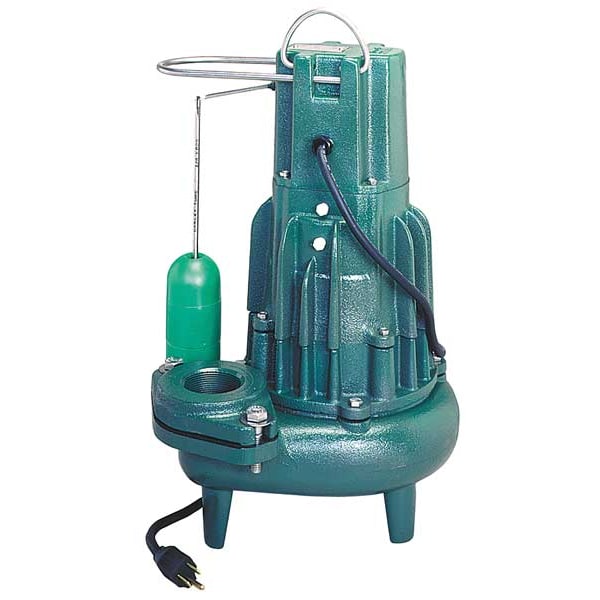

Waste-Mate 1 HP 2" Auto Submersible Sewage Pump 230V Vertical

  • Mfr # 284-0003

  • Zoro # G0749777

product price:
$
1,410.99
/ea
Free Shipping & Returns

Key Features

HP
1
Phase - Pumps
1
Switch Actuation
Vertical Float
Body Material
Cast Iron
Base Material
Cast Iron
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
284-0003
Zoro #
G0749777
UPC #
053514262815
Country of Origin
United States

Dimensions

Max. Diameter Solids
2 in
Height
19-9/16
Diameter
13-9/16"
Cord Length
10 ft
Max. Dia. Solids
2"
Cord Length - Pumps
10 ft.
Manufacturers Warranty Length
1 yr
Min. Sump Pit Dia.
18 in
Overall Height
19 5/8 in
Body Dia.
13 9/16 in
Discharge Dia.
2 in
Discharge Diameter
2 in
Sump Pit Diameter - Minimum
18 in
Solids Diameter - Maximum
2 in
Width at Widest Point
13 5/8 in
Body Diameter
13 5/8 in

Details

HP
1
Phase - Pumps
1
Switch Actuation
Vertical Float
Body Material
Cast Iron
Base Material
Cast Iron
Flow Rate @ 10 Ft. of Head
157 gpm
Max. Head
35 ft
Impeller Material
Cast Iron
Max. Liquid Temp.
104 Degrees F
GPM of Water @ 10 Ft. of Head
157
Input Phase AC
1
Housing Material
Cast iron
Thermal Protection
Yes
Shaft Seal Material - Pumps
Carbon, Ceramic
Pump Body Material
Cast Iron
Impeller Material - Pumps
Cast Iron
Amps
8.90 A
Switch Type - Pumps
Vertical
Motor RPM
1750
Switch Type
Vertical
Agency Compliance
CSA Certified, UL Listed
Motor Type
Capacitor Start, Oil-filled
Bearing Type
Upper Sleeve/Lower Ball
Phase
Single
Shaft Seal
Carbon/Ceramic
GPM of Water @ 30 Ft. of Head
42
Amps - Pumps
8.90
Item - Sewage Pumps
Submersible Sewage Pump
Voltage - Pumps
240VAC
GPM of Water @ 5 Ft. of Head
179
Voltage
230
GPM of Water @ 25 Ft. of Head
73
Pump Type
Automatic
Discharge NPT
2"
GPM of Water @ 20 Ft. of Head
106
GPM of Water @ 15 Ft. of Head
133
Item
Sewage Ejector Pump
Max. Head - Pumps
35 ft.
Discharge Gender
Female
Switch Electrical Connection
Integral
Rated Voltage
230V AC
Off Point
5 1/4 in
Duty Cycle
Continuous
RPM
1,750 RPM
On Point
15 1/4 in
Discharge
2 in FNPT
Flow Rate @ 20 Ft. of Head
106 gpm
Discharge Standard
NPT
Flow Rate @ 15 Ft. of Head
133 gpm
Type
Automatic
Frequency
60 Hz
Standards
CSA Certified, UL Listed
Liquid Temperature - Maximum
104 Degrees F
Flow Rate @ 10 ft of Head
157 gpm
For Media Type
Sewage Water
Shaft Seal Material
Carbon/Ceramic
Horsepower
1 hp
Power Source
Corded Electric
Discharge Orientation
Vertical
Feet of Head - Maximum
35 ft
Series
Model 284
Hazardous Location Class
Not Rated
Rotation Speed - Maximum
1,750 RPM
Requires Control Panel
No Control Panel Required
Shaft Seal Type
Single Mechanical
Current
8.90 A
Volute Material
Cast Iron
Motor Housing Material
Cast Iron
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Sewage Ejector Pump, HP 1, Rated Voltage 230V AC, Phase - Pumps 1, Amps 8.90 A, Motor Type Capacitor Start, Oil-filled, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon, Ceramic, Switch Actuation Vertical Float, Switch Electrical Connection Integral, On Point 15 1/4 in, Off Point 5 1/4 in, Flow Rate @ 10 Ft. of Head 157 gpm, Flow Rate @ 15 Ft. of Head 133 gpm, Flow Rate @ 20 Ft. of Head 106 gpm, Max. Diameter Solids 2 in, Min. Sump Pit Dia. 18 in
