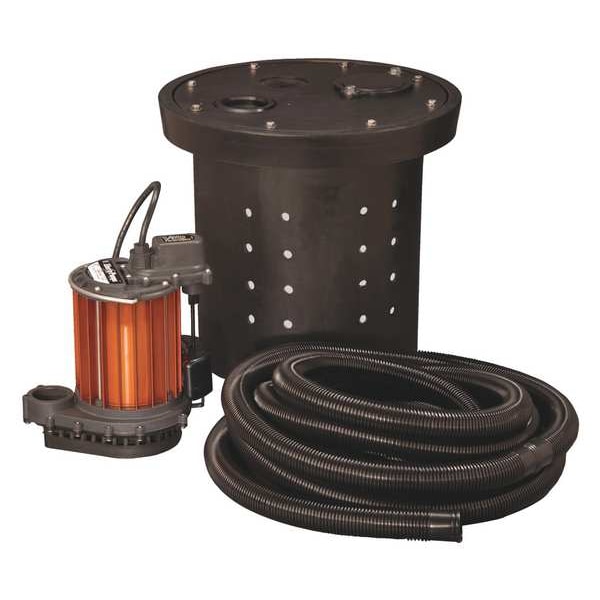

Crawl Space System, 1/2 HP, 115V
- Zoro #: G3673817
- Mfr #: CSP-457
$336.00
- Outlet: 1-1/2"
- Features: Dewatering Basements, Crawl Spaces, Etc
- HP: 1/2
Liberty Pumps #CSP-457 Specifications
| |
| Outlet: 1-1/2" | Features: Dewatering Basements, Crawl Spaces, Etc |
| HP: 1/2 | Voltage - Pumps: 115VAC |
| GPM of Water @ 15 Ft. of Head: 38 | Voltage: 115 V |
| GPM of Water @ 10 Ft. of Head: 44 | Max. Head - Pumps: 34 ft. |
| Amps - Pumps: 7.50 | Hz: 60 |
| Basin Height: 15 in | Cord Size: 16-3 |
| Max. Diameter Solids: 3/8 in | Basin Material: Polyethylene |
| Amps: 7.5 | Inlet: 1/2 in |
| GPM of Water @ 20 Ft. of Head: 33 | Phase: 1 |
| Cord Length: 10 ft | Input Phase AC: 1 |
| Max. Liquid Temp.: 140 Degrees F | Cord Length - Pumps: 10 ft. |
| Discharge NPT: 1-1/2" F | Max. Dia. Solids: 3/8" |
| Motor RPM: 3450 | Check Valve: 1-1/2 NPT |
| Max Head - Pumps: 34 ft. | Cover Material: Polyethylene |
| Pump HP: 1/2 | GPM of Water @ 5 Ft. of Head: 48 |
| Item - Sump/Sewage Pump Systems: Sump Pump System | Application: For Use In A Crawl Space Or Where Pooling Water Is Occurring |
| Switch Type - Pumps: Vertical | Item: Sump Pump System |
| Basin Dia.: 15 in | GPM of Water @ 25 Ft. of Head: 23 |
| Includes: 24 ft Discharge Hose, Check Valve, Cord Grommet, Hardware, Heavy Duty Submersible Pump, Perforated Basin With Cover | Basin Capacity: 7.5 gal |
| Switch Type: Vertical | Max. Head: 34.0 ft |
| Impeller Material: Engineered Thermoplastic | Rated Voltage: 115V AC |
| Alarm Included: No | Discharge Dia.: 1 1/2 in |
| Flow Rate @ 20 Ft. of Head: 32.0 gpm | Flow Rate @ 10 Ft. of Head: 44.0 gpm |
| Phase - Pumps: 1 | RPM: 3,450 RPM |
| Discharge Standard: NPT | Switch Electrical Connection: Integral |
| Discharge: 1-1/2 in FNPT | Flow Rate @ 5 Ft. of Head: 48.0 gpm |
| Flow Rate @ 15 Ft. of Head: 38.0 gpm | Pump Body Material: Aluminum, Polypropylene |
| Discharge Gender: Female | Inlet Dia.: 1/2 in |
| Switch Actuation: Vertical Float | Duty Cycle: Intermittent |
| Country of Origin (subject to change): United States | |
Help us improve our product informationDescription
Sump Pump System, HP 1/2, Rated Voltage 115V AC, Hz 60, Phase - Pumps 1, Switch Actuation Vertical Float, Switch Electrical Connection Integral, Pump Body Material Aluminum, Polypropylene, Impeller Material Engineered Thermoplastic, Basin Material Polyethylene, Flow Rate @ 5 Ft. of Head 48.0 gpm, Flow Rate @ 10 Ft. of Head 44.0 gpm, Flow Rate @ 15 Ft. of Head 38.0 gpm, Flow Rate @ 20 Ft. of Head 32.0 gpm, Max. Head 34.0 ft, Basin Dia. 15 in, Basin Capacity 7.5 gal, Basin Height 15 in
