  9. Grinder Pump, 2 HP, 208-230 Voltage

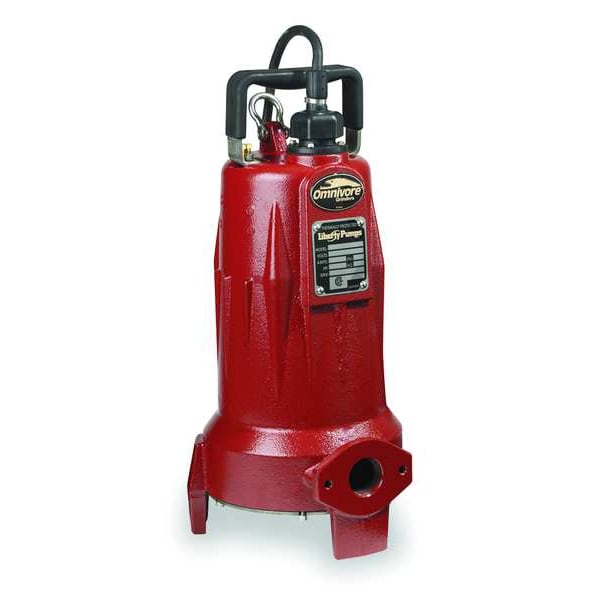

Liberty Pumps Grinder Pump, 2 HP, 208-230 Voltage LSG203M - main

Grinder Pump, 2 HP, 208-230 Voltage

  • Mfr # LSG203M

  • Zoro # G1847291

product price: $1,981.50
/ea
Free Shipping & Returns

Key Features

HP
2 hp
Phase - Pumps
3
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
Cast Iron
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LSG203M
Zoro #
G1847291
UPC #
671812113068
Country of Origin
United States

Dimensions

Min. Sump Pit Dia.
24 in
Cord Length - Pumps
25 ft.
Manufacturers Warranty Length
3 yr
Diameter
9-1/2"
Length
12-1/2" FNPT
Height
19-1/2"
Cord Length
10 ft
Max. Diameter Solids
2 in
Overall Height
19 1/2 in
Body Dia.
9 1/2 in
Discharge Dia.
1 1/4 in
Overall Length
12 1/2 in
Solids Diameter - Maximum
2 in
Discharge Diameter
1 1/4 in
Sump Pit Diameter - Minimum
24 in
Body Diameter
9 1/2 in

Details

HP
2 hp
Phase - Pumps
3
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
Cast Iron
Flow Rate @ 10 Ft. of Head
50 gpm
Max. Head
108 ft
Impeller Material
Stainless Steel
Hz
60
GPM of Water @ 15 Ft. of Head
50
Motor RPM
3450
Pump Body Material
Cast Iron
Duty
Intermittent
Input Phase AC
3
Thermal Protection
No
GPM of Water @ 100 Ft. of Head
9
Switch Type
No Switch Included
Bearing Type
Upper and Lower Ball
GPM of Water @ 35 Ft. of Head
50
Housing Material
Cast iron
GPM of Water @ 30 Ft. of Head
50
Max. Liquid Temp.
140 Degrees F
Motor Type
3-Phase
GPM of Water @ 60 Ft. of Head
42
GPM of Water @ 40 Ft. of Head
48
GPM of Water @ 25 Ft. of Head
50
GPM of Water @ 80 Ft. of Head
27
Handle
Yes
Item
Grinder Pump
Voltage
208/230
GPM of Water @ 70 Ft. of Head
36
Agency Compliance
CSA C/US
GPM of Water @ 45 Ft. of Head
48
Pump RPM
3450
GPM of Water @ 55 Ft. of Head
45
Max. Head - Pumps
108 ft.
Switch Type - Pumps
No Switch Included
Shaft Seal Material - Pumps
Silicon Carbide, Viton
GPM of Water @ 5 Ft. of Head
50
GPM of Water @ 50 Ft. of Head
47
Item - Grinder Pumps
Grinder Pump
GPM of Water @ 20 Ft. of Head
50
Voltage - Pumps
208 to 240VAC
Discharge NPT
1-1/4" F
GPM of Water @ 90 Ft. of Head
18
Shaft Seal
Silicon Carbide/Double Viton Lip
GPM of Water @ 10 Ft. of Head
50
Phase
Three
Amps
10.6 A
Impeller Material - Pumps
Stainless Steel
Discharge
1 1/4 in FNPT
Flow Rate @ 20 Ft. of Head
50 gpm
Switch Electrical Connection
No Switch Included
Flow Rate @ 60 Ft. of Head
42 gpm
Flow Rate @ 15 Ft. of Head
50 gpm
Discharge Standard
NPT
Flow Rate @ 40 Ft. of Head
48 gpm
Discharge Gender
Female
Rated Voltage
208/230V AC
RPM
3,450 RPM
Duty Cycle
Intermittent
For Media Type
Sewage Water
Motor Housing Material
Cast Iron
Hazardous Location Class
Not Rated
Frequency
60 Hz
Power Source
Corded Electric
Volute Material
Cast Iron
Feet of Head - Maximum
108 ft
Horsepower
2 hp
Standards
CSA C/US
Flow Rate @ 10 ft of Head
50 gpm
Shaft Seal Type
Single Mechanical
Rotation Speed - Maximum
3,450 RPM
Series
LSG
Shaft Seal Material
Silicon Carbide/Viton
Cord Termination
Bare Wire Leads
Discharge Orientation
Horizontal
Liquid Temperature - Maximum
140 Degrees F
Requires Control Panel
Control Panel Required
Current
10.6 A

Description

Grinder Pump, HP 2 hp, Rated Voltage 208/230V AC, Hz 60, Phase - Pumps 3, Amps 10.6 A, Motor Type 3-Phase, Body Material Cast Iron, Impeller Material Stainless Steel, Shaft Seal Material - Pumps Silicon Carbide, Viton, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, Flow Rate @ 10 Ft. of Head 50 gpm, Flow Rate @ 15 Ft. of Head 50 gpm, Flow Rate @ 20 Ft. of Head 50 gpm, Flow Rate @ 40 Ft. of Head 48 gpm, Flow Rate @ 60 Ft. of Head 42 gpm, Max. Head 108 ft
