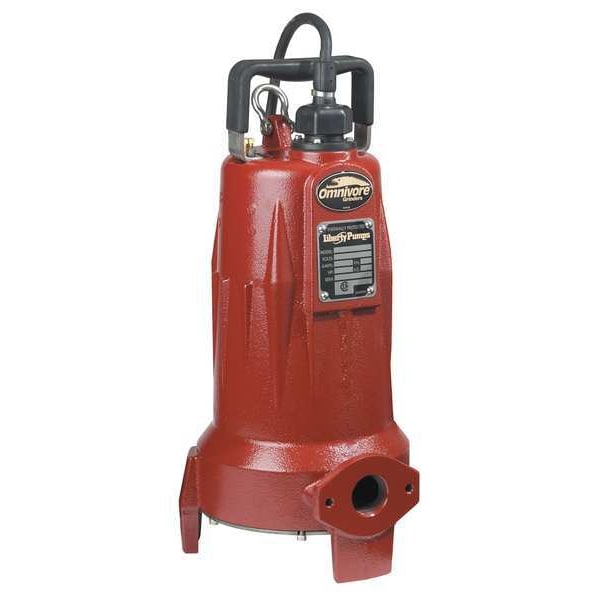

Liberty Pumps Grinder Pump, 2 HP, 208/230V LSG202M - main

Grinder Pump, 2 HP, 208/230V

  • Mfr # LSG202M

  • Zoro # G3650771

product price: $1,881.75
/ea
Free Shipping & Returns

Key Features

HP
2 hp
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
Cast Iron
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LSG202M
Zoro #
G3650771
UPC #
671812110180
Country of Origin
United States

Dimensions

Min. Sump Pit Dia.
24 in
Cord Length
10 ft
Cord Length - Pumps
25 ft.
Diameter
9"
Manufacturers Warranty Length
3 yr
Height
19-1/2"
Length
12-1/2" FNPT
Max. Diameter Solids
2 in
Overall Length
12 1/2 in
Body Dia.
9 in
Discharge Dia.
1 1/4 in
Overall Height
19 1/2 in
Discharge Diameter
1 1/4 in
Solids Diameter - Maximum
2 in
Body Diameter
9 in
Sump Pit Diameter - Minimum
24 in

Details

HP
2 hp
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
Cast Iron
Flow Rate @ 10 Ft. of Head
50 gpm
Max. Head
108 ft
Impeller Material
Stainless Steel
Discharge NPT
1-1/4" F
Bearing Type
Ball
GPM of Water @ 100 Ft. of Head
9
GPM of Water @ 10 Ft. of Head
50
Switch Type
No Switch Included
Amps
15 A
GPM of Water @ 30 Ft. of Head
50
Shaft Seal
SIC
Motor RPM
3450
Phase
Single
GPM of Water @ 45 Ft. of Head
48
Voltage - Pumps
208/230VAC
GPM of Water @ 55 Ft. of Head
45
Pump RPM
3450
GPM of Water @ 80 Ft. of Head
27
Max. Head - Pumps
108 ft.
Agency Compliance
C-US, CSA
Includes
Handle, Lifting Shackle, Power Cord
Housing Material
Cast iron
Hz
60
Max. Liquid Temp.
140 Degrees F
Duty
Intermittent
GPM of Water @ 5 Ft. of Head
50
GPM of Water @ 25 Ft. of Head
50
GPM of Water @ 90 Ft. of Head
17
Input Phase AC
1
GPM of Water @ 15 Ft. of Head
50
Item - Grinder Pumps
Grinder Pump
GPM of Water @ 35 Ft. of Head
50
Motor Type
CSCR
Thermal Protection
Yes
Switch Type - Pumps
No Switch Included
Impeller Material - Pumps
Stainless Steel
GPM of Water @ 60 Ft. of Head
42
GPM of Water @ 50 Ft. of Head
47
Shaft Seal Material - Pumps
Silicone Carbide
GPM of Water @ 20 Ft. of Head
50
Pump Body Material
Cast Iron
GPM of Water @ 70 Ft. of Head
36
Item
Grinder Pump
Handle
Yes
GPM of Water @ 40 Ft. of Head
48
Voltage
208/230
Discharge Gender
Female
Discharge
1 1/4 in FNPT
Rated Voltage
208/230V AC
Flow Rate @ 40 Ft. of Head
48 gpm
Flow Rate @ 60 Ft. of Head
42 gpm
Duty Cycle
Intermittent
Switch Electrical Connection
No Switch Included
Discharge Standard
NPT
RPM
3,450 RPM
Flow Rate @ 15 Ft. of Head
50 gpm
Flow Rate @ 20 Ft. of Head
50 gpm
Standards
CSA, CUS
Cord Termination
Plug
Liquid Temperature - Maximum
140 Degrees F
Horsepower
2 hp
Hazardous Location Class
Not Rated
Flow Rate @ 10 ft of Head
50 gpm
Rotation Speed - Maximum
3,450 RPM
Motor Housing Material
Cast Iron
For Media Type
Sewage Water
Shaft Seal Type
Single Mechanical
Shaft Seal Material
Silicon Carbide
Series
LSG
Current
15 A
Discharge Orientation
Horizontal
Frequency
60 Hz
Feet of Head - Maximum
108 ft
Power Source
Corded Electric
Volute Material
Cast Iron
Requires Control Panel
Control Panel Required

Description

The Liberty Pumps LSG202M Grinder Pump is the perfect pump for your home or business. It can be used in any application that requires pumping liquids, including wells, water transfer and more. The cast iron grinder pump has a discharge size of 1 1/4 in. FNPT. Its max liquid temperature is 140 degrees F and overall height is 19 1/2 in.. The pump's max head measures 108 ft., while its flow rate at 10 ft. of head comes to 50 gpm. With a 2 hp HP motor, this unit weighs 184 lb.. Whether you're looking for a powerful grinder pump or one that's designed for home use, the Liberty Pumps LSG202M Grinder Pump will get the job done efficiently and effectively.
