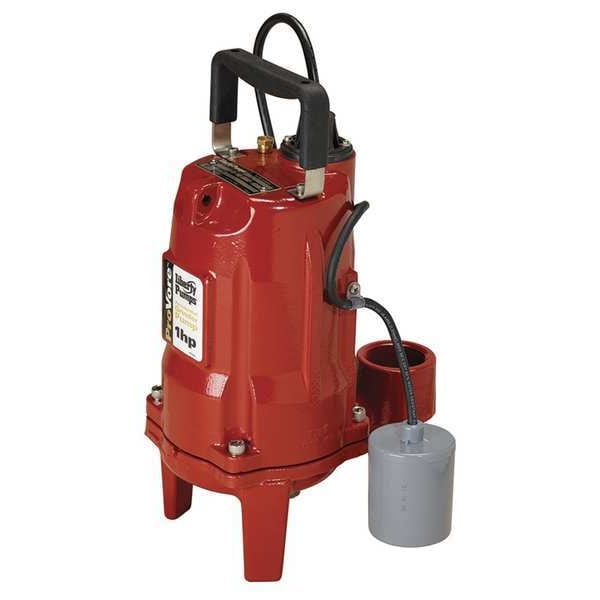

Liberty Pumps Grinder Pump, Automatic, 230V PRG102A - main

Grinder Pump, Automatic, 230V

  • Mfr # PRG102A

  • Zoro # G8487446

product price: $1,327.50
/ea
Free Shipping & Returns

Key Features

HP
1 hp
Phase - Pumps
1
Switch Actuation
Tether Float
Body Material
Cast Iron
Base Material
Cast Iron
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PRG102A
Zoro #
G8487446
UPC #
671812121308
Country of Origin
United States

Dimensions

Min. Sump Pit Dia.
24 in
Cord Length
10 ft
Height
17-3/4"
Cord Length - Pumps
10 ft.
Manufacturers Warranty Length
3 yr
Diameter
11"
Length
13-1/2" FNPT
Max. Diameter Solids
2 in
Discharge Dia.
2 in
Body Dia.
11 in
Overall Length
13 1/2 in
Overall Height
17 3/4 in
Solids Diameter - Maximum
2 in
Body Diameter
11 in
Discharge Diameter
2 in
Sump Pit Diameter - Minimum
24 in

Details

HP
1 hp
Phase - Pumps
1
Switch Actuation
Tether Float
Body Material
Cast Iron
Base Material
Cast Iron
Flow Rate @ 10 Ft. of Head
42 gpm
Max. Head
50 ft
Impeller Material
Cast Iron
Duty
Intermittent
GPM of Water @ 40 Ft. of Head
15
GPM of Water @ 25 Ft. of Head
32
Agency Compliance
CSA, UL 778
Item - Grinder Pumps
Grinder Pump
Switch Type
Wide Angle
GPM of Water @ 30 Ft. of Head
27
Handle
Yes
Bearing Type
Ball
Motor Type
CSCR
Impeller Material - Pumps
Stainless Steel
GPM of Water @ 20 Ft. of Head
36
On Point
13.7 in
GPM of Water @ 35 Ft. of Head
22
Includes
Float
Input Phase AC
1
Motor RPM
3450
GPM of Water @ 5 Ft. of Head
44
GPM of Water @ 15 Ft. of Head
39
Amps
6 A
Thermal Protection
Yes
GPM of Water @ 10 Ft. of Head
42
Voltage
230
Max. Liquid Temp.
140 Degrees F
Shaft Seal Material - Pumps
Silicone Carbide
GPM of Water @ 45 Ft. of Head
10
Discharge NPT
2" F
Voltage - Pumps
230VAC
Hz
60
Max Head - Pumps
50 ft.
Item
Grinder Pump
Shaft Seal
SIC
Phase
Single
Max. Head - Pumps
50 ft.
Off Point
6.7 in
RPM
3,450 RPM
Switch Electrical Connection
Piggyback
Duty Cycle
Intermittent
Discharge Standard
NPT
Discharge
2 in FNPT
Flow Rate @ 40 Ft. of Head
15 gpm
Discharge Gender
Female
Rated Voltage
230V AC
Flow Rate @ 20 Ft. of Head
36 gpm
Flow Rate @ 15 Ft. of Head
39 gpm
Standards
CSA, UL 778
Volute Material
Cast Iron
Rotation Speed - Maximum
3,450 RPM
Frequency
60 Hz
Feet of Head - Maximum
50 ft
For Media Type
Sewage Water
Shaft Seal Material
Silicon Carbide
Horsepower
1 hp
Discharge Orientation
Vertical
Current
6 A
Cord Termination
Plug
Power Source
Corded Electric
Motor Housing Material
Cast Iron
Series
PRG
Liquid Temperature - Maximum
140 Degrees F
Shaft Seal Type
Single Mechanical
Hazardous Location Class
Not Rated
Flow Rate @ 10 ft of Head
44 gpm
Requires Control Panel
No Control Panel Required

Description

Grinder Pump, HP 1 hp, Rated Voltage 230V AC, Hz 60, Phase - Pumps 1, Amps 6 A, Motor Type CSCR, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Silicone Carbide, Switch Actuation Tether Float, Switch Electrical Connection Piggyback, Off Point 6.7 in, On Point 13.7 in, Flow Rate @ 10 Ft. of Head 42 gpm, Flow Rate @ 15 Ft. of Head 39 gpm, Flow Rate @ 20 Ft. of Head 36 gpm, Flow Rate @ 40 Ft. of Head 15 gpm, Max. Head 50 ft, Min. Sump Pit Dia. 24 in
