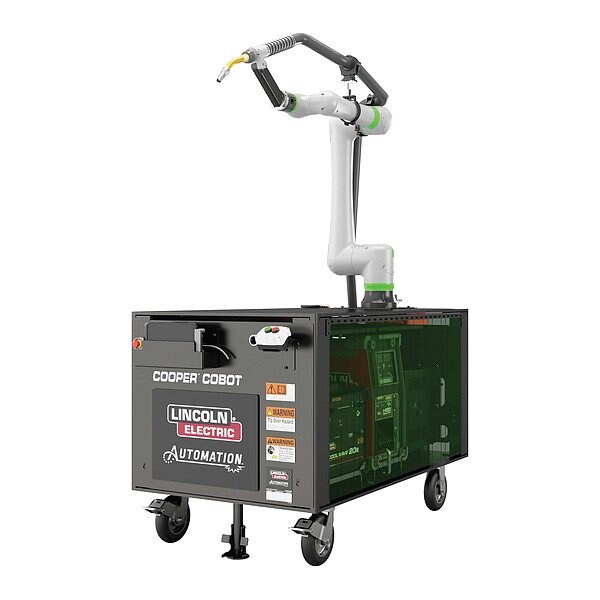

CobotWeldingCell, MagnumPRO, MagnumPRO

  • Mfr # AD2489-17
  • Zoro # G015831832
product price:
$
176,893.99
/ea
Additional $155.00 delivery surcharge applies per item.
See details

Key Features

Features
New Generation II Design, Robotic Service and Support, The Cooper App - Lincoln Electric Created the Cooper App to Make It Simple for Anyone to Program and Create a Quality Weld, The Power Wave(R) R450 Power Source
Phase
Single/Three
Welding Processes
Circular Welding, Editing/Customizing, Linear Welding, Multipass Welding, Optimized Angles, Stitch Welding, Work and Travel Angles
Standards
CSA
Work Surface Thickness
0.5 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AD2489-17
Zoro #
G015831832
UPC #
-
Country of Origin
United States

Dimensions

Work Surface Thickness
0.5 in
Work Surface Depth
35 in
Overall Width
35 in
Work Surface Width
59 in
Overall Depth
59 in
Overall Height
104 in
Work Envelope Radius
55.8 in
Maximum Wire Diameter
Magnum PRO
Minimum Wire Diameter
0.023 in (Solid), 0.035 in (Cored)
Wire Diameter Solid - Maximum
0.052 in
Wire Diameter Flux-Cored - Minimum
0.035 in
Wire Diameter Flux-Cored - Maximum
0.045 in
Wire Diameter Solid - Minimum
0.023 in

Details

Item
Cobot Welding Cell
Features
New Generation II Design, Robotic Service and Support, The Cooper App - Lincoln Electric Created the Cooper App to Make It Simple for Anyone to Program and Create a Quality Weld, The Power Wave(R) R450 Power Source
Phase
Single/Three
Welding Processes
Circular Welding, Editing/Customizing, Linear Welding, Multipass Welding, Optimized Angles, Stitch Welding, Work and Travel Angles
Standards
CSA
Application
Agricultural Equipment Manufacturing, High-Mix Job Industries, Mechanical Contracting and Piping, Part Resurfacing and Reconditioning, Repair and Remanufacturing, Roof and Bridge Trusses, Steel Fabricating and Metal Service, Training and Educational Programs
Work Surface Pattern
Round Holes in Grid Pattern
Series
0.045 in (Cored), 0.052 in (Solid)
Input Voltage
208/230/400/460/575V
Includes
AutoDrive(R) 4R100 Wire Feeder, FANUC(R) CRX Robot with Tablet-Based Teach Pendant, Fault Reset Palmstation, Generation II Universal Cart, Heavy-Duty Casters, MAGNUM(R) PRO Air-Cooled Wire-Brake Welding Torch, Power Wave(R) R450 Robotic Welding Power Source, Stabilizing Kickstand, The Cooper App
Weight
1,150 lb
Color
Black, Red, White
Welding Mode
CC/CV
Input Frequency
50/60 Hz
For Material Type
Steel
Polarity
DC
For Wire Type
Flux-Cored, Solid
Remote Connection Type
12-Pin (Lincoln)
Model
550 A
MIG Gun Type
MIG Gun
MIG Welding Maximum Output Current
MAGNUM(R) PRO Air-Cooled Wire-Brake Torch
Amperage Range
5-550 A
Operating System
Mobile Download, Pendant
MIG Welding Output @ Duty Cycle
300 A @ 29 V, 100%, 450 A @ 36.5 V, 100%
Enhanced Process
Flux-Cored (FCAW), Flux-Cored Gas-Shielded (FCAW-G), MIG (GMAW)
MIG Welding Minimum Output Current
40 A
Minimum Wire Feed Speed
50 in/min
Maximum Wire Feed Speed
800 in/min
Work Surface Hole Spacing
2 in
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Amperage MIG - Minimum
40 A
Welding Power Source Type
CC/CV
Rated Output @ Duty Cycle (MIG)
300 A @ 29 V, 100%, 450 A @ 36.5 V, 100%
MIG Gun Model
MAGNUM(R) PRO Air-Cooled Wire-Brake Torch
MIG Gun Series
Magnum PRO
Amperage MIG - Maximum
550 A
Wire Color
Black, Red, White

Description

Cobot Welding Cell

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
