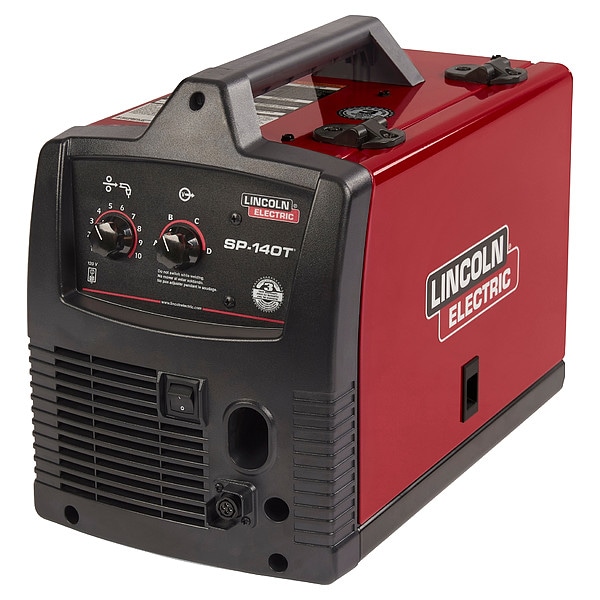

Lincoln Electric MIG Welder, SP-140T, Single-Phase, 120V AC SP-140T - main

MIG Welder, SP-140T, Single-Phase, 120V AC

  • Mfr # SP-140T

  • Zoro # G109990933

product price:  $984.99
/ea
Free Shipping & Returns

Key Features

Series
SP-140T
Input Voltage
120V AC
Phase
Single
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Application
Automotive, Brewery, Distillery, Fabrication, General, Maintenance and Repair, Repair Welding
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SP-140T
Zoro #
G109990933
UPC #
015082983233
Country of Origin
Mexico

Dimensions

For Maximum Material Thickness
10 ga (Aluminum), 5/16 in (Steel)
For Minimum Material Thickness
22 ga (Aluminum), 24 ga (Steel)
Minimum Wire Diameter
0.025 in (Solid, 0.03 in (Flux-Cored)
Overall Width
10.38 in
Overall Height
13.65 in
Power Cord Length
10 ft
Maximum Wire Diameter
3/16 in (Solid), 5/16 in (Flux-Cored)
Overall Depth
17.9 in
Wire Diameter Aluminum - Maximum
0.035 in
For Aluminum Thickness - Maximum
10 ga
For Steel Thickness - Maximum
5/16 in
For Steel Thickness - Minimum
24 ga
Wire Diameter Flux-Cored - Maximum
0.035 in
For Aluminum Thickness - Minimum
22 ga
Wire Diameter Flux-Cored - Minimum
0.03 in

Details

Item
MIG Welder
Series
SP-140T
Input Voltage
120V AC
Phase
Single
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Application
Automotive, Brewery, Distillery, Fabrication, General, Maintenance and Repair, Repair Welding
Maximum Wire Feed Speed
500 in/min
Welding Mode
CV
For Wire Type
Flux-Cored, Solid
Includes
0.025 to 0.030 in and 0.035 in Smooth Drive Roll, 0.035 in Contact Tip, Adjustable Gas Regulator, Cable Liner, Clamp, Gas Diffuser, Gas Nozzle, Hose, Magnum PRO 100L 10 ft Gun, SP-140T Wire Feeder Welder, Spindle Adapter, Work Cable
MIG Welding Maximum Output Current
140 A
Minimum Wire Feed Speed
50 in/min
Polarity
DC
Input Frequency
60 Hz
MIG Welding Output @ Duty Cycle
90 A @ 19.5 V, 20%
Features
No Hassle Tool-less Design, Precise Wire Drive, Spool Gun Capable, Superior Arc Performance
Weight
49.5 lb
Standards
CSA Standards
For Material Type
Steel
Power Cord Included
Yes
Color
Red
Model
K5261-1
MIG Welding Minimum Output Current
30 A
Plug Type
5-15P
Amperage Range
30 - 140 Amps DC
Amperage MIG - Maximum
140 A
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Welding Power Source Type
CV
Rated Output @ Duty Cycle (MIG)
90 A @ 19.5 V, 20%
Amperage MIG - Minimum
30 A

Description

MIG Welder, Series SP-140T, Input Voltage 120V AC, Phase Single, Welding Mode CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), For Wire Type Flux-Cored, Solid, Maximum Wire Diameter 3/16 in (Solid), 5/16 in (Flux-Cored), Maximum Wire Feed Speed 500 in/min, Model K5261-1, MIG Welding Output @ Duty Cycle 90 A @ 19.5 V, 20 Percent
