Shop LINCOLN ELECTRIC

MIG Welder, Flextec(R), Single-/Three-Phase, 200 to 575V AC

  • Mfr # K5336-5
  • Zoro # G016150789
product price:
$
18,903.99
/ea
Additional $320.00 delivery surcharge applies per item.
See details

Key Features

Series
Flextec(R)
Input Voltage
200 to 575V AC
Phase
Single-/Three-Phase
Welding Processes
Flux-Cored Welding (FCAW), GMAW-STT, Gouging (CAC-A), MIG Welding (GMAW), Pulsed MIG (GMAW-P), Stick Welding (SMAW), TIG Welding (GTAW)
Standards
ISO 9001:2000 14001:2004
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
K5336-5
Zoro #
G016150789
UPC #
015082794402
Country of Origin
Multiple

Dimensions

Overall Depth
24 in
Overall Height
17 in
Overall Width
13 in
Minimum Wire Diameter
0.035 in (Steel), 0.045 in (Metalcore)
For Maximum Material Thickness
1/2 in (Aluminum), 1/2 in (Stainless Steel), 1/2 in (Steel)
Maximum Wire Diameter
1/16 in (Solid), 5/64 in (Cored)
For Minimum Material Thickness
1/8 in (Aluminum), 3/32 in (Stainless Steel), 3/32 in (Steel)
Power Cord Length
8 1/2 ft
For Steel Thickness - Maximum
1/2 in
For Steel Thickness - Minimum
3/32 in
For Aluminum Thickness - Maximum
1/2 in
Wire Diameter Solid - Maximum
0.0625 in
Wire Diameter Solid - Minimum
0.035 in
For Stainless Steel Thickness - Minimum
3/32 in
For Aluminum Thickness - Minimum
1/8 in
For Stainless Steel Thickness - Maximum
1/2 in

Details

Item
MIG Welder
Series
Flextec(R)
Input Voltage
200 to 575V AC
Phase
Single-/Three-Phase
Welding Processes
Flux-Cored Welding (FCAW), GMAW-STT, Gouging (CAC-A), MIG Welding (GMAW), Pulsed MIG (GMAW-P), Stick Welding (SMAW), TIG Welding (GTAW)
Standards
ISO 9001:2000 14001:2004
Application
General Fabrication
Includes

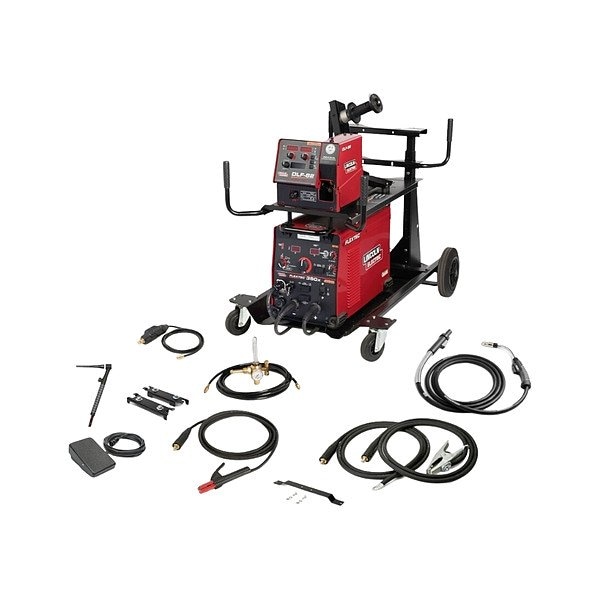

25 ft (7.6 m) (12-Pin) Foot Amptrol(TM), 8.5 ft (2.59 m) Input Cable, Caliber(R) 17 Series TIG Torch - Flex/Valve, Cart for Inverter and Wire Feeder, DLF-82 Bench Model, DLF-Feeder Cart Mounting Bracket, Electrode Holder and Lead, Flextec(R) 350X Locking Foot Kit, Flextec(R) 350X PowerConnect, Model 355-2Ar-58010 Flowmeter Regulator Shielding Gas Kit, TWECO(R) Style TIG Torch Cam Lock Adapter, Weld Cable Package
Features
Adaptive Arc, Arc Control, Auto Settings, Gun Trigger Memory Recall, Memory Presets, PIN Lockout, Synergic Control, Weld Mode Lock Out, Weld Parameter Limits
For Material Type
Aluminum, Stainless Steel, Steel
Minimum Wire Feed Speed
40 in/min
Polarity
DC
Model
Flextec(R) 350X
Welding Mode
CC/CV
For Wire Type
Flux-Cored, Solid
Power Cord Included
Yes
MIG Welding Output @ Duty Cycle
300 A @ 100%, 350 A @ 60%
Input Frequency
50/60 Hz
Plug Type
6-50P
Remote Connection Type
12-Pin (Lincoln), 14-Pin (Lincoln), 5-Pin (Lincoln)
Amperage Range
61 to 175 A
Maximum Wire Feed Speed
800 in/min
Color
Red
Enhanced Process
Flux Cored (FCAW), MIG (GMAW), Pulsed MIG (GMAW-P)
Weight
158 lb
MIG Welding Maximum Output Current
425 A
MIG Welding Minimum Output Current
5 A
Amperage MIG - Minimum
5 A
Rated Output @ Duty Cycle (TIG)
270 A @ 20.8 V, 100% (Single-Phase), 300 A @ 22 V, 100% (Three-Phase), 300 A @ 29 V, 60% (Single-Phase), 350 A @ 24 V, 60% (Three-Phase)
Amperage TIG - Maximum
300 A
Rated Output @ Duty Cycle (Stick)
270 A @ 30.8 V, 100% (Single-Phase), 300 A @ 32 V, 100% (Three-Phase), 300 A @ 32 V, 60% (Single-Phase), 350 A @ 34 V, 60% (Three-Phase)
Rated Output @ Duty Cycle (MIG)
270 A @ 27.5 V, 100% (Single-Phase), 300 A @ 29 V, 100% (Three-Phase), 300 A @ 29 V, 60% (Single-Phase), 350 A @ 31.5 V, 60% (Three-Phase)
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage MIG - Maximum
425 A
Amperage Stick - Maximum
350 A
Welding Power Source Type
CC/CV

Description

Multiprocess Welder, Series Flextec(R), Input Voltage 200/575V AC, Phase Single/Three, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Flux-Cored Welding (FCAW), GMAW-STT, Gouging (CAC-A), MIG Welding (GMAW), Pulsed MIG (GMAW-P), Stick Welding (SMAW), TIG Welding (GTAW), MIG Welding Maximum Output Current 425 A, For Wire Type Flux-Cored, Solid, Maximum Wire Diameter 1/16 in (Solid), 5/64 in (Cored), Maximum Wire Feed Speed 800 in/min
