Shop LINCOLN ELECTRIC

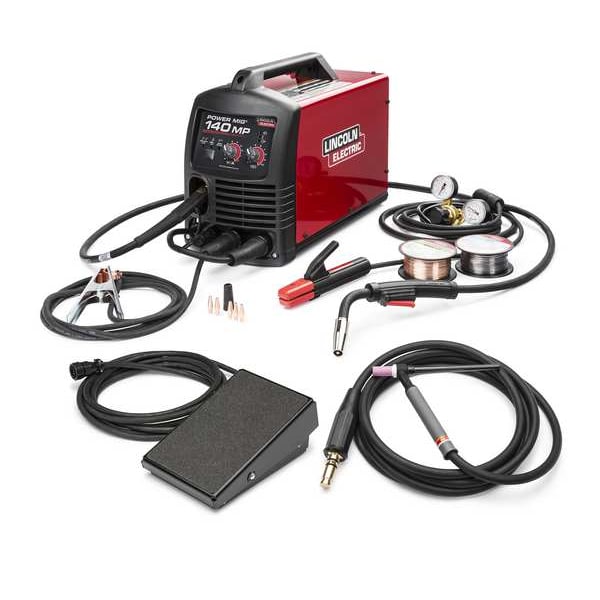

Multiprocess Welder, Power MIG 140MP, Single-Phase, 120V AC

  • Mfr # K4499-1

  • Zoro # G702492599

product price:  $2,524.99
/ea
Free Shipping & Returns

Key Features

Series
Power MIG 140MP
Input Voltage
120V AC
Phase
Single
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Overall Height
14 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
K4499-1
Zoro #
G702492599
UPC #
015082862309
Country of Origin
Multiple

Dimensions

Overall Height
14 in
Overall Depth
18.59 in
For Minimum Material Thickness
24 ga (Steel)
Overall Width
10.15 in
For Maximum Material Thickness
1/4 in (Steel)
Maximum Wire Diameter
0.035 in (Flux-Cored), 0.035 in (Solid)
Wire Diameter Flux-Cored - Maximum
0.035 in
For Steel Thickness - Minimum
24 ga
For Steel Thickness - Maximum
1/4 in
Wire Diameter Solid - Maximum
0.035 in

Details

Item
Multiprocess Welder
Series
Power MIG 140MP
Input Voltage
120V AC
Phase
Single
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
For Wire Type
Flux-Cored, Solid
Application
Automotive, Brewery, Distillery, Maintenance and Repair, Repair Welding
MIG Welding Minimum Output Current
30 A
Weight
57 lb
Welding Mode
CC/CV
MIG Welding Maximum Output Current
140 A
Includes
(3) 0.025 in (0.6 mm) Tapered Contact Tips, (3) 0.035 in (0.9 mm) tapered contact tips, 0.025 - .035 in (0.6 - 0.9 mm) wire diameter dual track drive roll for MIG and fl ux-cored welding (KP2948-1), Electrode holder with 10 ft. cable for stick welding, Foot Pedal (K4361-1), Gas nozzle for MIG welding, Gasless nozzle for Innershield(R) welding, Harris(R) 3000290 Gas Regulator (S25805) and 52 in (1.3 m) hose (S19303) for use with Ar/ CO2 blend gases. For use with CO2 shielding gas, order a Lincoln Electric S19298 CO2 shielding gas bottle adapter., Magnum(R) PRO 100L gun and 10 ft. (3.0 m) cable assembly with brass connection and 8-pin trigger connector (K530-7)., PTA-9 TIG Torch (12.5 ft 1 pc) (K1782-16), Sample spool of .025 in (0.6 mm) diameter SuperArc(R) L-56(R) premium MIG wire, Sample) spool of .035 in (0.9 mm) diameter Innershield(R) NR(R)-211-MP fl ux-cored wire, Work clamp and 10 ft. (3.0 m) cable
Input Frequency
60 Hz
Color
Red
Model
K4499-1
Plug Type
5-15P
For Material Type
Mild Steel, Stainless Steel
Remote Connection Type
8-Pin (Lincoln)
MIG Welding Output @ Duty Cycle
95 A @ 18.75V, 60%
Amperage Range
10 A to 140 A
Polarity
DC
Features
Compact Design, Easy To Use, Versatile Performance
Maximum Wire Feed Speed
500 in/min
Stick Welding Maximum Output Current
90 A
TIG Welding Maximum Output Current
120 A
Stick Welding Output @ Duty Cycle
80 A @ 23.2 V, 60%
TIG Welding Output @ Duty Cycle
115 A @ 14.6 V, 60%
Stick Welding Minimum Output Current
25 A
TIG Welding Minimum Output Current
10 A
Amperage MIG - Minimum
30 A
Rated Output @ Duty Cycle (TIG)
115 A @ 14.6 V, 60%
Amperage Stick - Maximum
90 A
Amperage MIG - Maximum
140 A
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Rated Output @ Duty Cycle (MIG)
95 A @ 18.75V, 60%
Amperage Stick - Minimum
25 A
Welding Power Source Type
CC/CV
Amperage TIG - Maximum
120 A
Rated Output @ Duty Cycle (Stick)
80 A @ 23.2 V, 60%
Amperage TIG - Minimum
10 A

Description

Multiprocess Welder, Series Power MIG 140MP, Input Voltage 120V AC, Phase Single, Welding Mode CC/CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 90 A, TIG Welding Maximum Output Current 120 A, MIG Welding Maximum Output Current 140 A, For Wire Type Flux-Cored, Solid, Maximum Wire Diameter 0.035 in (Flux-Cored), 0.035 in (Solid)

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
