  5. Multiprocess Welder, Power MIG 360MP, Phase Single-Phase , 208V AC, 230V AC, 460V AC, 575V AC

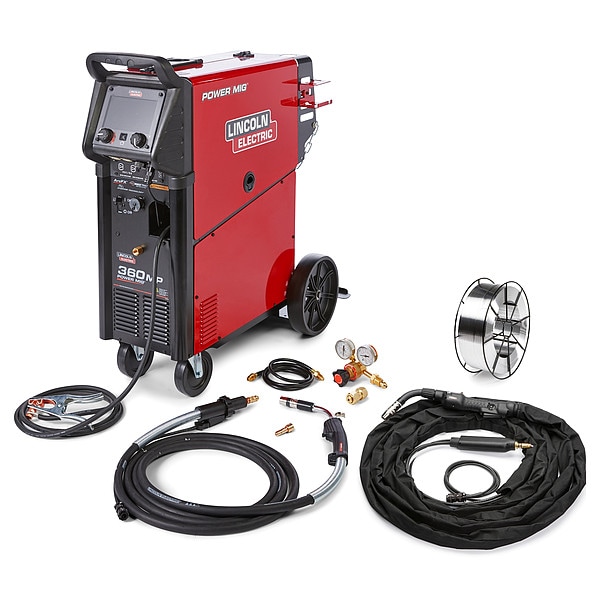

Lincoln Electric Multiprocess Welder, Power MIG 360MP, Phase Single-Phase , 208V AC, 230V AC, 460V AC, 575V AC K4785-1 - main

Multiprocess Welder, Power MIG 360MP, Phase Single-Phase , 208V AC, 230V AC, 460V AC, 575V AC

  • Mfr # K4785-1

  • Zoro # G109990940

product price:  $19,810.99
/ea
Item requires special delivery charges. A $185.00 per item surcharge will be applied.

Key Features

Series
Power MIG 360MP
Phase
Single-Phase
Input Voltage
208V AC, 230V AC, 460V AC, 575V AC
Includes
3/4 in Drive Roll Kit, SuperGlaze(R) 5554, 12F to 7M Adapter, POWER MIG(R) 360MP Multi-Process Welder, 25 ft Magnum PRO AL FC 225 Air 12P FT, Aluminum Wire
Features
Aluminum Pulse Process, Multi-Process Capable, Synergic Control
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
K4785-1
Zoro #
G109990940
UPC #
015082951829
Country of Origin
United States

Dimensions

Maximum Wire Diameter
0.035 in (Aluminum), 0.04 in (Solid), 0.045 in (Flux-Cored)
Power Cord Length
10 ft
Overall Width
18 in
Overall Height
37.3 in
Minimum Wire Diameter
0.023 in (Solid), 0.035 in (Flux-Cored), 3/64 in (Aluminum)
Overall Depth
40.4 in
For Minimum Material Thickness
14 ga (Aluminum), 22 ga (Stainless Steel), 22 ga (Steel)
For Maximum Material Thickness
1/2 in (Stainless Steel), 1/2 in (Steel), 3/8 in (Aluminum)

Details

Item
Multiprocess Welder
Series
Power MIG 360MP
Phase
Single-Phase
Input Voltage
208V AC, 230V AC, 460V AC, 575V AC
Includes
3/4 in Drive Roll Kit, SuperGlaze(R) 5554, 12F to 7M Adapter, POWER MIG(R) 360MP Multi-Process Welder, 25 ft Magnum PRO AL FC 225 Air 12P FT, Aluminum Wire
Features
Aluminum Pulse Process, Multi-Process Capable, Synergic Control
Application
Auto Body, Education, Light Industrial, Maintenance and Repair, Metal Fabrication
Amperage Range
20 to 55 A
Standards
CSA Standards
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Color
Red
Enhanced Process
Pulsed MIG (GMAW-P), Pulsed TIG (GTAW-P)
Power Cord Included
Yes
Weight
295 lb
For Material Type
Aluminum, Stainless Steel, Steel
Effective Input Current
55/50/25/20 A
Input Frequency
50/60 Hz
Plug Type
6-50P
For Wire Type
Aluminum, Flux-Cored, Solid
Max. Input Current
55 A
Model
Power MIG 360MP
Pulse Frequency
0.5 to 19.5 pulses/second
Polarity
DC
TIG Arc Control Feature
Adjustable AC Frequency
Remote Connection Type
6-Pin (Lincoln), 7-Pin (Lincoln)
MIG Welding Output @ Duty Cycle
250 A @ 26.5 V, 100%, 320 A @ 30 V, 60%, 350 A @ 31.5 V, 40%
MIG Welding Maximum Output Current
360 A
Maximum Wire Feed Speed
700 in/min
Open Circuit Voltage
70 V DC
Welding Mode
CC/CV
Minimum Wire Feed Speed
50 in/min
MIG Welding Minimum Output Current
5 A
Stick Welding Minimum Output Current
30 A
Stick Welding Output @ Duty Cycle
230 A @ 29.2V, 100%
TIG Welding Output @ Duty Cycle
250 A @ 20.0V, 100%
TIG Welding Maximum Output Current
360 A
Stick Welding Maximum Output Current
310 A
TIG Welding Minimum Output Current
5 A

Description

Multiprocess Welder, Series Power MIG 360MP, Input Voltage 208V AC, 230V AC, 460V AC, 575V AC, Phase Single-Phase, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 310 A, TIG Welding Maximum Output Current 360 A, MIG Welding Maximum Output Current 360 A, For Wire Type Aluminum, Flux-Cored, Solid
