- MFR #
- K4487-1
- Zoro #
- G009990934
- UPC #
- 015082869810
- Country of Origin
- United States
- Item

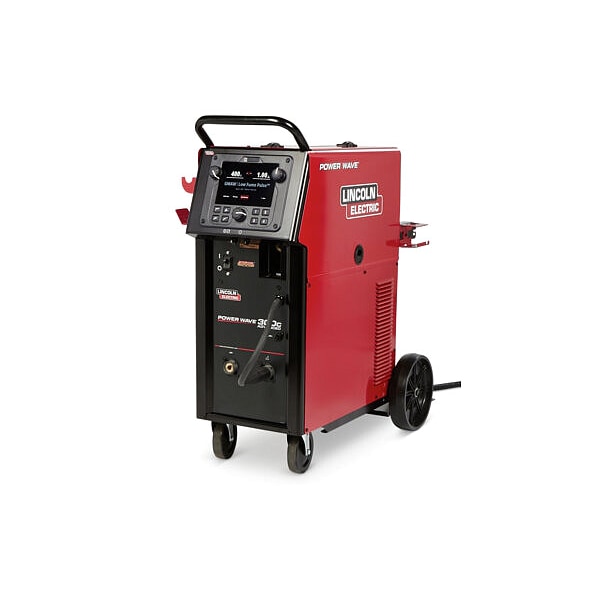

- Multiprocess Welder
- Series
- Power Wave 300C
- Phase
- Single/Three
- Input Voltage
- 200/208/220/230/380/415/460/575V AC
- Includes
Hose Kit, 10 ft Input Power Cord, 10 ft Work Lead, Flowmeter Regulator Shielding Gas Kit, Magnum PRO Curve 300 Gun Ready-Pak Harris Flowmeter/Regulator, Magnum PRO Curve 300 Welding Guns, Power Wave 300C Standard, 0.035 in/0.045 in Drive Roll Kit Combination Solid Wire, 0.035/0.045 in Combination V Groove Drive Rolls (Included in Wire Drive Assembly)
- Standards
- CSA Standards
- Amperage Range
- 14 to 44 A
- Features
- Advanced Connectivity and Control, Best-in-Class Performance, Ready-to-Run, Smart Fan Operation
- Welding Processes
- Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
- Application
- General Fabrication
- TIG Arc Control Feature
- Adjustable AC Balance, Adjustable AC Frequency
- MIG Welding Output @ Duty Cycle
- 280 A @ 28 V, 100% (Single-Phase), 280 A @ 28 V, 40% (Single-Phase), 280 A @ 28 V, 60% (Single-Phase), 300 A @ 29 V, 100% (Three-Phase), 300 A @ 29 V, 60% (Three-Phase), 350 A @ 31.5 V, 40% (Three-Phase)
- Remote Connection Type
- 12-Pin (Lincoln)
- Enhanced Process
- Pulsed MIG (GMAW-P), Pulsed TIG (GTAW-P)
- Polarity
- DC
- Color
- Red
- Welding Mode
- CC/CV
- MIG Welding Minimum Output Current
- 40 A
- Weight
- 193 lb
- TIG Welding Maximum Output Current
- 325 A (Single-Phase/Three-Phase)
- MIG Welding Maximum Output Current
- 350 A
- Plug Type
- Bare Leads
- TIG Arc Start Feature
- High Frequency Start
- Stick Welding Maximum Output Current
- 325 A
- TIG Welding Output @ Duty Cycle
- 300 A @ 22 V, 100%, 325 A @ 23 V, 40%
- Stick Welding Output @ Duty Cycle
- 280 A @ 31.2 V, 100%, 325 A @ 33 V, 40%
- For Wire Type
- Aluminum, Flux-Cored, Solid
- Open Circuit Voltage
- 70 V DC
- TIG Welding Minimum Output Current
- 300 A (Single-Phase/Three-Phase)
- Stick Welding Minimum Output Current
- 280 A
- Max. Input Current
- 35 A (Single-Phase/Three-Phase/100% Duty Cycle), 44 A (Single-Phase/Three-Phase/40% Duty Cycle)
- Input Frequency
- 50/60 Hz
- Maximum Wire Feed Speed
- 800 in/min
- Effective Input Current
- 35/32/19.5/16/14 A (Single-Phase/Three-Phase/100% Duty Cycle), 44/40/25/20/16.5 A (Single-Phase/Three-Phase/40% Duty Cycle)
- Power Cord Included
- Yes
- Minimum Wire Feed Speed
- 50 in/min
- For Material Type
- Aluminum, Stainless Steel, Steel
- Model
- Power Wave(R) 300C Standard
- Process
- Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
- Maximum Input Current
- 35 A (Single-Phase/Three-Phase/100% Duty Cycle), 44 A (Single-Phase/Three-Phase/40% Duty Cycle)
- Amperage Stick - Maximum
- 325 A
- Welding Power Source Type
- CC/CV
- Rated Output @ Duty Cycle (TIG)
- 300 A @ 22 V, 100%, 325 A @ 23 V, 40%
- Amperage MIG - Maximum
- 350 A
- Amperage TIG - Maximum
- 325 A
- Rated Output @ Duty Cycle (MIG)
- 280 A @ 28 V, 100% (Single-Phase), 280 A @ 28 V, 40% (Single-Phase), 280 A @ 28 V, 60% (Single-Phase), 300 A @ 29 V, 100% (Three-Phase), 300 A @ 29 V, 60% (Three-Phase), 350 A @ 31.5 V, 40% (Three-Phase)
- Amperage Stick - Minimum
- 280 A
- Amperage MIG - Minimum
- 40 A
- Rated Output @ Duty Cycle (Stick)
- 280 A @ 31.2 V, 100%, 325 A @ 33 V, 40%
- Amperage TIG - Minimum
- 300 A
