Shop LINCOLN ELECTRIC

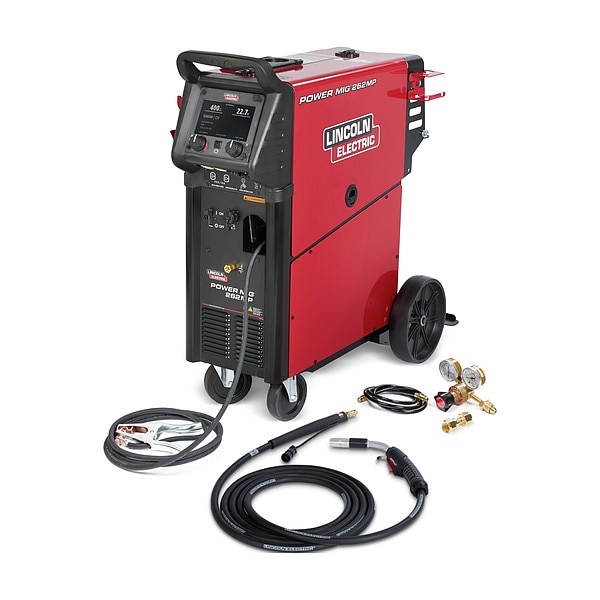

Multiprocess Welder, Power MIG 262MP, Phase Single-Phase , 208V, 230V, 460V, 575V

  • Mfr # K5376-1
  • Zoro # G812074562
product price:
$
6,195.99
/ea
Additional $140.00 delivery surcharge applies per item.
See details

Key Features

Series
Power MIG 262MP
Phase
Single
Input Voltage
208/230/460/575V AC
Includes
10 ft Power Cable with Plug, 10 ft Work Cable with Clamp, K4530-2 Magnum PRO 250L Welding Gun, K586-1 Adjustable Gas Regulator and Hose, KP1696-1 Drive Roll Kit 0.035/0.045 in, Quick Storage Accessories
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
K5376-1
Zoro #
G812074562
UPC #
015082696355
Country of Origin
Mexico

Dimensions

Overall Depth
37.5 in
Overall Width
18 in
Minimum Wire Diameter
0.023 in (Solid Steel), 0.035 in (Cored), 3/64 in (Aluminum)
Overall Height
37.5 in
Maximum Wire Diameter
0.035 in (Aluminum), 0.040 in (Solid Steel), 0.045 in (Cored)
Power Cord Length
10 ft
For Maximum Material Thickness
1/2 in (Stainless), 1/2 in (Steel), 3/8 in (Aluminum)
Wire Diameter Aluminum - Minimum
0.046875 in
For Aluminum Thickness - Maximum
3/8 in
Wire Diameter Solid - Minimum
0.023 in
Wire Diameter Solid - Maximum
0.04 in
Wire Diameter Aluminum - Maximum
0.035 in
For Steel Thickness - Maximum
1/2 in
For Stainless Steel Thickness - Maximum
1/2 in
Fits Chest Size
7 in Color Display - Enhances Communication Between Operator and Machine, Memory Recall- Easily Save and Access Memories with the Enhanced Ui, Rugged MAXTRAC(R) Industrial Wire Drive - Allows for constant wire feed speed and consistent welds, Stick Settings for 6010 + 6011- Superior Performance with Cellulosic Electrodes, Synergic Control - Set Weld Procedures with One Control

Details

Item
Multiprocess Welder
Series
Power MIG 262MP
Phase
Single
Input Voltage
208/230/460/575V AC
Includes
10 ft Power Cable with Plug, 10 ft Work Cable with Clamp, K4530-2 Magnum PRO 250L Welding Gun, K586-1 Adjustable Gas Regulator and Hose, KP1696-1 Drive Roll Kit 0.035/0.045 in, Quick Storage Accessories
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Standards
OSHA PEL
Features
7 in Color Display - Enhances Communication Between Operator and Machine, Memory Recall- Easily Save and Access Memories with the Enhanced Ui, Rugged MAXTRAC(R) Industrial Wire Drive - Allows for constant wire feed speed and consistent welds, Stick Settings for 6010 + 6011- Superior Performance with Cellulosic Electrodes, Synergic Control - Set Weld Procedures with One Control
Application
Automotive, General Fabrication, Heavy Equipment, Maintenance and Repair
MIG Welding Output @ Duty Cycle
145 A @ 21.5 V, 100%, 230 A @ 26.5 V, 60%, 300 A @ 29 V, 40%
Open Circuit Voltage
90 V
For Wire Type
Flux-Cored, Solid
Polarity
DC
Input Frequency
60 Hz
MIG Welding Maximum Output Current
300 A
Welding Mode
CC/CV
Power Cord Included
Yes
Plug Type
6-50P
Effective Input Current
17.6 @ 575 A, 22.1 @ 460 A (Single-Phase), 44 @ 230 A (Single-Phase), 49.1 @ 208 A (Single-Phase)
Weight
250 lb
Remote Connection Type
12-Pin (Lincoln)
Model
POWER MIG 262MP
Max. Input Current
17.6 @ 575 A, 22.1 @ 460 A (Single-Phase), 44 @ 230 A (Single-Phase), 49.1 @ 208 A (Single-Phase)
MIG Welding Minimum Output Current
5 A
For Material Type
Aluminum
Maximum Wire Feed Speed
700 in/min
Minimum Wire Feed Speed
30 in/min
Stick Welding Maximum Output Current
260 A
Stick Welding Output @ Duty Cycle
115 A @ 24.6 V, 100%, 200 A @ 28 V, 60%, 260 A @ 30.4 V, 40%
TIG Welding Output @ Duty Cycle
150 A @ 30.4 V, 100%, 275 A @ 21 V, 60%, 300 A @ 22 V, 40%
Stick Welding Minimum Output Current
4A (Single-Phase)
Enhanced Process
Pulsed MIG (GMAW-P)
TIG Welding Maximum Output Current
300 A
Amperage Stick - Maximum
260 A
Amperage MIG - Minimum
5 A
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage Stick - Minimum
4 A
Rated Output @ Duty Cycle (Stick)
115 A @ 24.6 V, 100%, 200 A @ 28 V, 60%, 260 A @ 30.4 V, 40%
Maximum Input Current
17.6 @ 575 A, 22.1 @ 460 A (Single-Phase), 44 @ 230 A (Single-Phase), 49.1 @ 208 A (Single-Phase)
Welding Power Source Type
CC/CV
Amperage TIG - Maximum
300 A
Amperage MIG - Maximum
300 A
Rated Output @ Duty Cycle (MIG)
145 A @ 21.5 V, 100%, 230 A @ 26.5 V, 60%, 300 A @ 29 V, 40%
Rated Output @ Duty Cycle (TIG)
150 A @ 30.4 V, 100%, 275 A @ 21 V, 60%, 300 A @ 22 V, 40%

Description

Multiprocess Welder, Series Power MIG 262MP, Input Voltage 208/230/460/575V AC, Phase Single, Welding Mode CC/CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 260 A, TIG Welding Maximum Output Current 300 A, MIG Welding Maximum Output Current 300 A, For Wire Type Flux-Cored, Solid
