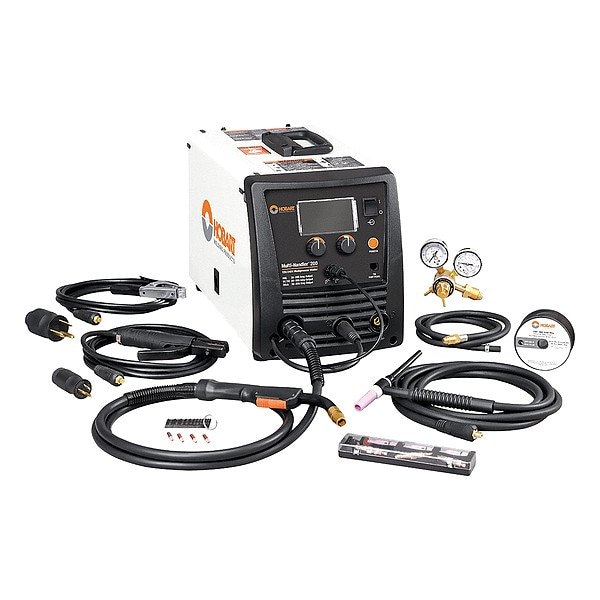

Hobart Welding Products Multiprocess Welder, Multi-Handler 200, Phase Single-Phase , 110/115/120V AC, 220/230/240V AC 500578 - main

Multiprocess Welder, Multi-Handler 200, Phase Single-Phase , 110/115/120V AC, 220/230/240V AC

  • Mfr # 500578

  • Zoro # G2478370

product price:  $1,918.99
/ea
Free Shipping & Returns

Key Features

Series
Multi-Handler 200
Phase
Single
Input Voltage
110/115/120/220/230/240V AC
Includes
0.03 in and 0.035 in Contact Tips, Dual-Gauge Regulator with Gas Hose, Electrode Holder with 10 ft Cable, MIG Gun with 10 ft Cable, Quick Select Drive Roll for 0.024 in or 0.03/0.035 in Solid Wire & 0.03/0.035 in Flux-Cored Wire, Sample Spool of 0.03 in Solid MIG Wire, TIG Consumables Kit, TIG Torch with 12.5 ft Cable, Work Clamp with 10 ft Cable
Features
Dual-Voltage, Run-in Technology
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
500578
Zoro #
G2478370
UPC #
715959679602
Country of Origin
China

Dimensions

Overall Depth
20.8 in
Minimum Wire Diameter
0.030 in (Flux-Cored), 0.030 in (Solid Wire)
Overall Height
13.4 in
Maximum Wire Diameter
0.035 in (Flux-Cored), 0.035 in (Solid)
Overall Width
10.6 in
For Steel Thickness - Minimum
24 ga
For Steel Thickness - Maximum
3/8 in
For Aluminum Thickness - Minimum
18 ga
For Aluminum Thickness - Maximum
3/8 in
Wire Diameter Solid - Minimum
0.03 in
Wire Diameter Solid - Maximum
0.035 in
For Stainless Steel Thickness - Maximum
3/8 in
Wire Diameter Aluminum - Maximum
0.4 in
Wire Diameter Flux-Cored - Maximum
0.035 in
Wire Diameter Aluminum - Minimum
0.35 in
Wire Diameter Flux-Cored - Minimum
0.03 in

Details

Item
Multiprocess Welder
Series
Multi-Handler 200
Phase
Single
Input Voltage
110/115/120/220/230/240V AC
Includes
0.03 in and 0.035 in Contact Tips, Dual-Gauge Regulator with Gas Hose, Electrode Holder with 10 ft Cable, MIG Gun with 10 ft Cable, Quick Select Drive Roll for 0.024 in or 0.03/0.035 in Solid Wire & 0.03/0.035 in Flux-Cored Wire, Sample Spool of 0.03 in Solid MIG Wire, TIG Consumables Kit, TIG Torch with 12.5 ft Cable, Work Clamp with 10 ft Cable
Features
Dual-Voltage, Run-in Technology
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Application
Auto Body, Boat/Marine, Construction, Farm/Ranch, Maintenance/Repair, Metal Art
Standards
CSA
Amperage Range
20 A to 200 V
TIG Welding Minimum Output Current
20 A
Stick Welding Maximum Output Current
200 A
Welding Mode
CC/CV
Minimum Wire Feed Speed
60 in/min
For Wire Type
Flux-Cored, Solid
Color
White
MIG Welding Minimum Output Current
30 A
For Material Type
Aluminum, Stainless Steel, Steel
MIG Welding Output @ Duty Cycle
110 A @ 19.5 V, 30%, 165 A @ 22.2 V, 30%
TIG Welding Maximum Output Current
200 A
Weight
38 lb
Plug Type
5-15P, 6-50P
Max. Input Current
23.0 A @ 120V AC (Single-Phase)
Polarity
DC
Maximum Wire Feed Speed
650 in/min
TIG Welding Output @ Duty Cycle
165 A @ 16.6 V, 300%
Input Frequency
50/60 Hz
MIG Welding Maximum Output Current
200 A
Stick Welding Output @ Duty Cycle
140 A @ 25.6 V, 30%, 90 A @ 23.6 V, 30%
Power Cord Included
Yes
Stick Welding Minimum Output Current
30 A
Open Circuit Voltage
63 V DC
Remote Connection Type
RJ45
Model
500578
Amperage MIG - Maximum
200 A
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
TIG Arc Start Feature
Lift Arc Start
Maximum Input Current
23.0 A @ 120V AC (Single-Phase)
Amperage TIG - Maximum
200 A
Amperage MIG - Minimum
30 A
Rated Output @ Duty Cycle (TIG)
165 A @ 16.6 V, 300%
Amperage TIG - Minimum
20 A
Rated Output @ Duty Cycle (MIG)
110 A @ 19.5 V, 30%, 165 A @ 22.2 V, 30%
Amperage Stick - Maximum
200 A
Amperage Stick - Minimum
30 A
Welding Power Source Type
CC/CV
Rated Output @ Duty Cycle (Stick)
140 A @ 25.6 V, 30%, 90 A @ 23.6 V, 30%
TIG Arc Control Feature
Arc Control

Description

Multiprocess Welder, Series Multi-Handler 200, Input Voltage 110/115/120/220/230/240V AC, Phase Single, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 200 A, TIG Welding Maximum Output Current 200 A, MIG Welding Maximum Output Current 200 A, For Wire Type Flux-Cored, Solid, Maximum Wire Diameter 0.035 in (Flux-Cored), 0.035 in (Solid)
