Shop LINCOLN ELECTRIC

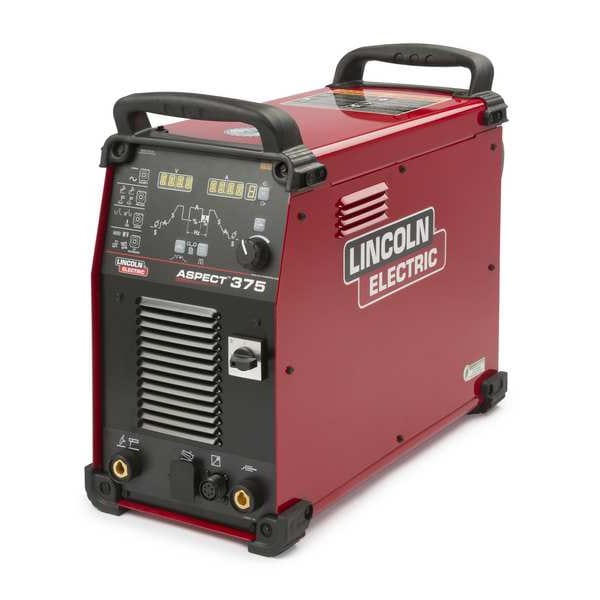

TIG Welder, Aspect 375 AC/DC Series, 200 V to 600 V

  • Mfr # K3945-1

  • Zoro # G402590502

product price:
$
15,891.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details

Key Features

Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage
200 to 600V AC
Series
Aspect 375 AC/DC
Includes
Power Source Only
TIG Arc Start Feature
High Frequency Start, Lift Arc Start
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
K3945-1
Zoro #
G402590502
UPC #
015082563824
Country of Origin
United States

Dimensions

Power Cord Length
10 ft
Overall Width
11.8 in
Overall Height
21 in
Overall Depth
25.5 in

Details

Item
TIG Welder
Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage
200 to 600V AC
Series
Aspect 375 AC/DC
Includes
Power Source Only
TIG Arc Start Feature
High Frequency Start, Lift Arc Start
Amperage Range
2 to 375 A
Max. Input Current
46 A @ 208V AC (Three-Phase), 47 A @ 208V AC (Single-Phase)
Stick Welding Minimum Output Current
2 A (Single-Phase), 2 A (Three-Phase)
TIG Welding Output @ Duty Cycle
180 A @ 17.2 V, 100% (Single-Phase), 240 A @ 19.6 V, 30 % (Single-Phase), 250 A @ 20 V, 100% (Three-Phase), 350 A @ 24 V, 30% (Three-Phase)
Pulse Frequency
0.1 to 2000 pulses/second
Phase
Single/Three
Weight
105 lb
Features
AC Auto-Balance Makes it Simple by Automatically Providing the Optimal Mix of Cleaning and Penetration on Aluminum, Customization When You Need It. - Manage AC Frequency, Balance and Offset to Modify Arc Profile, Cleaning Action or Penetration, Effortless Arc Control for the Smoothest Welds, Intellistart(TM) Technology Provides Soft Starts on Thin Materials and Hotter Starts Required on Thicker Materials
Remote Connection Type
6-Pin (Lincoln)
Welding Mode
CC
Input Frequency
50/60 Hz
Stick Welding Output @ Duty Cycle
180 A @ 27.2 V, 100% (Single-Phase), 240 A @ 29.6 V, 30 % (Single-Phase), 250 A @ 30 V, 100% (Three-Phase), 350 A @ 34 V, 30% (Three-Phase)
Power Cord Included
Yes
Polarity
AC/DC
Plug Type
Bare Leads
Application
Automotive, Brewery, Construction, Distillery, General Fabrication, Heavy Fabrication, Maintenance and Repair, Marine Applications, Marine Fabrication and Repair, Oil and Gas, Pharmaceutical Equipment, Power Generation, Repair Welding, Shipbuilding
Model
K3945-1
TIG Welding Minimum Output Current
2 A (Single-Phase), 2 A (Three-Phase)
Stick Welding Maximum Output Current
375 A
Color
Red
Remote Control
Remote Control Not Included
TIG Welding Maximum Output Current
375 A
Amperage TIG - Minimum
2 A
Maximum Input Current
46 A @ 208V AC (Three-Phase), 47 A @ 208V AC (Single-Phase)
Amperage Stick - Minimum
2 A
Amperage TIG - Maximum
375 A
Process
Stick Welding (SMAW), TIG Welding (GTAW)
Rated Output @ Duty Cycle (TIG)
180 A @ 17.2 V, 100% (Single-Phase), 240 A @ 19.6 V, 30 % (Single-Phase), 250 A @ 20 V, 100% (Three-Phase), 350 A @ 24 V, 30% (Three-Phase)
Welding Power Source Type
CC
Rated Output @ Duty Cycle (Stick)
180 A @ 27.2 V, 100% (Single-Phase), 240 A @ 29.6 V, 30 % (Single-Phase), 250 A @ 30 V, 100% (Three-Phase), 350 A @ 34 V, 30% (Three-Phase)
Amperage Stick - Maximum
375 A

Description

TIG Welder, Input Frequency 50/60 Hz, Max. Input Current 46 A @ 208V AC (Three-Phase), 47 A @ 208V AC (Single-Phase), Phase Single-/Three-Phase, Polarity AC/DC, Series Aspect 375 AC/DC, Stick Welding Maximum Output Current 375 A, Stick Welding Minimum Output Current 2 A (Single-Phase), 2 A (Three-Phase)
