Shop LINCOLN ELECTRIC

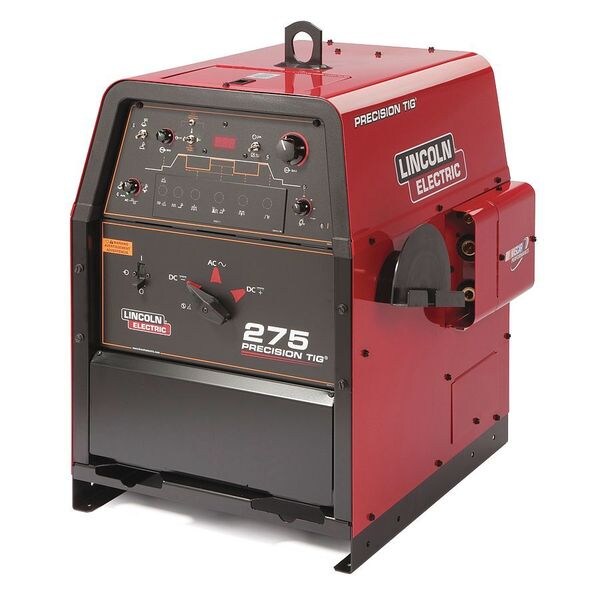

TIG Welder, Precision TIG 275 Series, 460V AC, 575V AC, 340 Max. Output Amps

  • Mfr # K2619-2
  • Zoro # G9964254
product price:
$
11,925.99
/ea
Additional $215.00 delivery surcharge applies per item.
See details

Key Features

Welder Industrial Class
Heavy
Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage
460/575V AC
Rated Output
275A @ 31V
Welder Max. Output Amps
340
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
K2619-2
Zoro #
G9964254
UPC #
015082679730
Country of Origin
United States

Dimensions

Overall Depth
26 in
Overall Width
22 in
Overall Height
31 in
For Aluminum Thickness - Maximum
5/32 in
Fits Chest Size
Advanced Pulse Control Panel (Optional On the Precision TIG 275), Side-Mounted Torch Holder and Connections, Simplicity Through Technology, Wide Output Range

Details

Item
TIG Welder
Welder Industrial Class
Heavy
Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage
460/575V AC
Rated Output
275A @ 31V
Welder Max. Output Amps
340
Welder Min. Output Amps
2
Welder Duty Cycle
40 %
Series
Precision TIG 275
Welded Material
Aluminum, Mild Steel, Stainless Steel
Input (Amps)
47/38
Features
Advanced Pulse Control Panel (Optional On the Precision TIG 275), Side-Mounted Torch Holder and Connections, Simplicity Through Technology, Wide Output Range
Polarity
AC/DC
Welder Input Phase
1
Application
Cleaning and Penetration for Welding
Welder Input Hz
50/60
Power Source Weight
397 lb
Includes
Precision TIG 275 Welder
Phase
Single
Input Frequency
60 Hz
Weight
397 lb
Stick Welding Output @ Duty Cycle
275A @ 31V, 40 %
TIG Welding Maximum Output Current
340 A
Amperage Range
2 to 340 A
Plug Type
Bare Leads
TIG Welding Minimum Output Current
2 A
TIG Welding Output @ Duty Cycle
275A @ 31V, 40 %
Welding Mode
CC
For Material Type
Aluminum
Color
Red/Black
Open Circuit Voltage
75V
Stick Welding Maximum Output Current
340 A
Stick Welding Minimum Output Current
2 A
Model
K2619-2
Standards
cCSAus Certified, ISO 14001:2004, ISO 9001:2000
TIG Arc Start Feature
Micro-Start(TM) II Technology
Amperage Stick - Minimum
2 A
Rated Output @ Duty Cycle (Stick)
275A @ 31V, 40 %
Welding Power Source Type
CC
Process
Stick Welding (SMAW), TIG Welding (GTAW)
Rated Output @ Duty Cycle (TIG)
275 A @ 31 V, 40%
Amperage TIG - Minimum
2 A
Maximum Input Current
47/38 A, 40% Duty Cycle
Amperage Stick - Maximum
340 A
Amperage TIG - Maximum
340 A

Description

TIG Welder, For Material Type Aluminum, Input Frequency 60 Hz, Phase Single, Polarity AC/DC, Series Precision TIG 275, Stick Welding Maximum Output Current 340 A, Stick Welding Minimum Output Current 2 A, Stick Welding Output @ Duty Cycle 275A @ 31V, 40 Percent, TIG Welding Maximum Output Current 340 A, TIG Welding Minimum Output Current 2 A, TIG Welding Output @ Duty Cycle 275A @ 31V, 40 Percent, Welding Processes Stick Welding (SMAW), TIG Welding (GTAW), Amperage Range 2 to 340 A
