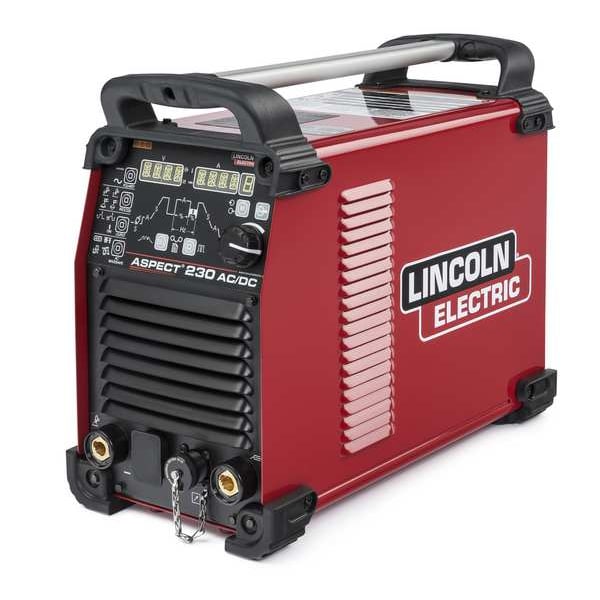

TIG Welder, Aspect 230 AC/DC Series, 120 V, 208 V, 230 V, 460 V

  • Mfr # K4340-1
  • Zoro # G202590573
product price:
$
8,017.99
/ea
Free Shipping & Returns

Key Features

Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage
120/208/230/460V AC
Series
Aspect 230 AC/DC
Model
K4340-1
Remote Control
Remote Control Not Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
K4340-1
Zoro #
G202590573
UPC #
015082631837
Country of Origin
Poland

Dimensions

Power Cord Length
10 ft
Overall Width
9.7 in
Overall Depth
19.9 in
Overall Height
16.5 in
Fits Chest Size
Exceptional Arc Response and Stability, Highly Customizable TIG Machine, Portable, Lightweight, and Easy to Transport

Details

Item
TIG Welder
Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage
120/208/230/460V AC
Series
Aspect 230 AC/DC
Model
K4340-1
Remote Control
Remote Control Not Included
TIG Arc Start Feature
High Frequency Start, Lift Arc Start
Remote Connection Type
6-Pin (Lincoln)
Power Cord Included
Yes
TIG Welding Output @ Duty Cycle
110 A @ 14.4 V, 100% (Single-Phase, 120 V), 125 A @ 15 V, 60% (Single-Phase, 120 V), 150 A @ 16 V, 35% (Single-Phase, 120 V), 160 A @ 16.4 V, 100% (Single/Three-Phase, 208-480 V), 190 A @ 17.6 V, 60% (Single/Three-Phase, 208-480 V), 230 A @ 19.2 V, 35% (Single/Three-Phase, 208-480 V)
Welding Mode
CC
Amperage Range
2 to 230 A
Features
Exceptional Arc Response and Stability, Highly Customizable TIG Machine, Portable, Lightweight, and Easy to Transport
Color
Red
Polarity
AC/DC
Stick Welding Minimum Output Current
2 A
Max. Input Current
34 A @ 120VAC
TIG Welding Minimum Output Current
2 A
Phase
Single/Three
Includes
Power Source Only
Application
Automotive, Brewery, Distillery, Maintenance and Repair, Marine Applications, Marine Fabrication and Repair, Repair Welding, Shipbuilding
Input Frequency
50/60 Hz
Stick Welding Output @ Duty Cycle
110 A @ 14.4 V, 100% (Single-Phase, 120 V), 125 A @ 15 V, 60% (Single-Phase, 120 V), 150 A @ 16 V, 35% (Single-Phase, 120 V), 160 A @ 16.4 V, 100% (Single/Three-Phase, 208-480 V), 190 A @ 17.6 V, 60% (Single/Three-Phase, 208-480 V), 230 A @ 19.2 V, 35% (Single/Three-Phase, 208-480 V)
Pulse Frequency
0.1 to 2000 pulses/second
Stick Welding Maximum Output Current
230 A
Weight
50.5 lb
Plug Type
Bare Leads
TIG Welding Maximum Output Current
150 A
Rated Output @ Duty Cycle (Stick)
110 A @ 14.4 V, 100% (Single-Phase, 120 V), 125 A @ 15 V, 60% (Single-Phase, 120 V), 150 A @ 16 V, 35% (Single-Phase, 120 V), 160 A @ 16.4 V, 100% (Single/Three-Phase, 208-480 V), 190 A @ 17.6 V, 60% (Single/Three-Phase, 208-480 V), 230 A @ 19.2 V, 35% (Single/Three-Phase, 208-480 V)
Amperage TIG - Minimum
2 A
Amperage TIG - Maximum
150 A
Amperage Stick - Maximum
230 A
Maximum Input Current
34 A @ 120VAC
Process
Stick Welding (SMAW), TIG Welding (GTAW)
Amperage Stick - Minimum
2 A
Welding Power Source Type
CC
Rated Output @ Duty Cycle (TIG)
110 A @ 14.4 V, 100% (Single-Phase, 120 V), 125 A @ 15 V, 60% (Single-Phase, 120 V), 150 A @ 16 V, 35% (Single-Phase, 120 V), 160 A @ 16.4 V, 100% (Single/Three-Phase, 208-480 V), 190 A @ 17.6 V, 60% (Single/Three-Phase, 208-480 V), 230 A @ 19.2 V, 35% (Single/Three-Phase, 208-480 V)
Wire Color
Red

Description

TIG Welder, Input Frequency 50/60 Hz, Max. Input Current 34 A @ 120VAC, Phase Single/Three, Polarity AC/DC, Series Aspect 230 AC/DC, Stick Welding Maximum Output Current 230 A, Stick Welding Minimum Output Current 2 A
