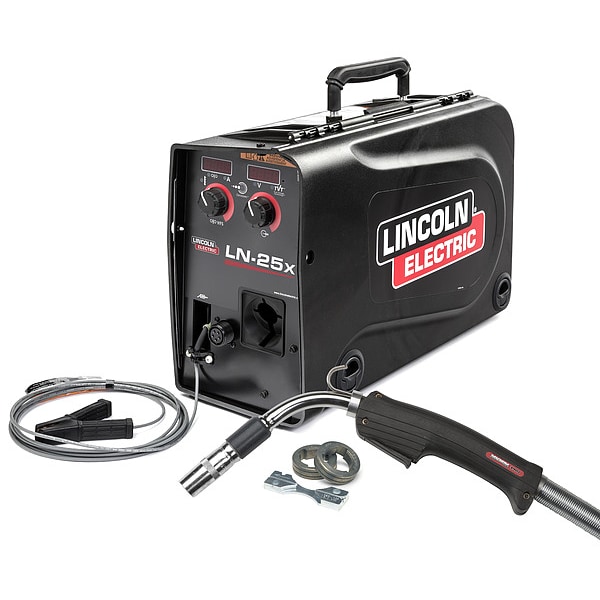

Lincoln Electric Wire Feeder, 15 V DC, 110 V DC, 37 lb K4266-1 - main

Wire Feeder, 15 V DC, 110 V DC, 37 lb

  • Mfr # K4266-1

  • Zoro # G610190617

product price:  $6,632.99
/ea
Free Shipping & Returns

Key Features

Welding Processes
MIG Welding (GMAW)
Series
LN-25X
Standards
CSA Certified, UL Listed
Phase
15-115VDC (Across the Arc)
Weight
37 lb
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
K4266-1
Zoro #
G610190617
UPC #
015082941448
Country of Origin
United States

Dimensions

Overall Depth
23.2 in
Overall Width
8.7 in
Overall Height
15 in
Maximum Wire Diameter
5/64 in (Flux-Cored)
Minimum Wire Diameter
1/16 in
Power Cord Length
15 ft
Maximum Spool Diameter
12 in
Wire Diameter Flux-Cored - Maximum
0.078125 in

Details

Item
Wire Feeder
Welding Processes
MIG Welding (GMAW)
Series
LN-25X
Standards
CSA Certified, UL Listed
Phase
15-115VDC (Across the Arc)
Weight
37 lb
Input Voltage
15/110V DC
Application
Construction, Field Erection, General Fabrication, Heavy Equipment, Heavy Fabrication, Structural Fabrication
Features
CrossLinc Technology Provides Voltage Control on the Feeder when Paired with a CrossLinc Compatible Power Source,, TVT Compensates for Voltage Drop Across Long Weld Cable Lengths, Allowing you to Weld with the Voltage you Set at the Feeder
Includes
0.040 to 0.045 in Drive Roll Kit, K2951-2-10-45, KP1697-045C Cored Wire, Magnum(R) PRO Curve(TM) 300 Welding Guns, TVT K4267-2
Compatible with Series
LN-25X
Power Cord Included
Yes
Compatible with Brand
Magnum, TVT
Model
CrossLinc
Input Frequency
15-115VDC (Across the Arc)
Wire Feeder Configuration
Single
For Wire Type
Flux-Cored, Solid
Welding Mode
CV
Rated Output
450 A @ 60%; 325 A @ 100%
Color
Black
Max. Input Current
450 A
Effective Input Current
450A @60%
Maximum Wire Feed Speed
700 in/min
Compatible with Model
Magnum
Minimum Wire Feed Speed
50 in/min
Maximum Spool Weight
44 lb
Portability
Portable
Welding Power Source Type
CV
Compatible Welder Model
Magnum
Wire Feeder Model
CrossLinc
Process
MIG Welding (GMAW)
Compatible Welder Series
LN-25X
Compatible Brand
Magnum, TVT
Wire Feeder Series
LN-25X
Maximum Input Current
450 A
Output Current Range
30 A to 450 A

Description

Wire Feeder, Compatible with Model Magnum, Compatible with Series LN-25X, Compatible with Brand Magnum, TVT, For Wire Type Flux-Cored, Solid, Max. Input Current 450 A, Input Voltage 15/110V DC, Maximum Spool Diameter 12 in, Maximum Spool Weight 44 lb, Maximum Wire Diameter 5/64 in (Flux-Cored), Maximum Wire Feed Speed 700 in/min, Minimum Wire Feed Speed 50 in/min, Rated Output 450 A @ 60 Percent; 325 A @ 100 Percent, Welding Mode CV, Wire Feeder Configuration Single
