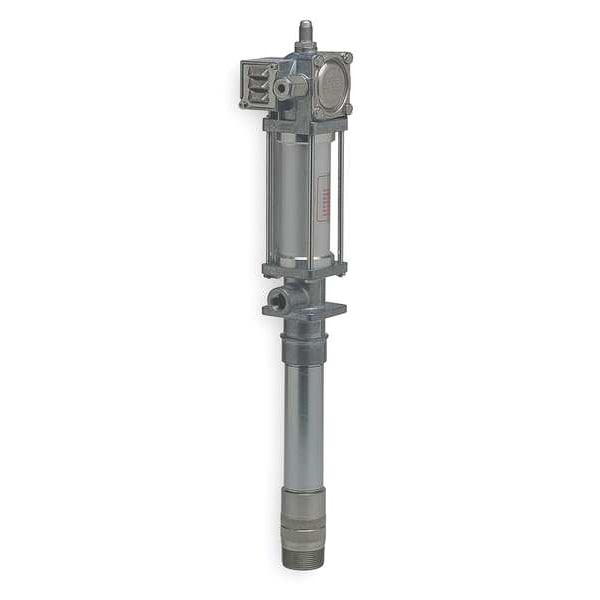

Lincoln Industrial Bare Stub Oil Pump, Air, 6 GPM 282396 - main

Bare Stub Oil Pump, Air, 6 GPM

  • Mfr # 282396

  • Zoro # G2571143

product price: $980.99
/ea
Free Shipping & Returns

Key Features

Type
Air Operated
Air Motor Size (In.)
2
Pump Ratio
3:1
Container Size
16 to 55 gal.
Consumption @ 100 PSI
10 cfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
282396
Zoro #
G2571143
UPC #
00095992078878
Country of Origin
China

Dimensions

Air Motor Size (In.)
2
Container Size
16 to 55 gal.
Outlet Size
1/2"
Air Inlet Size
1/4 NPT
For Container Size
16 gal, 55 gal, 250 gal, 275 gal
Overall Length
44 1/8 in
Height Above Container
15 7/8 in
Suction Tube Length
6 in
Bung Connection Dia.
2 in

Details

Item
Air Operated Drum Pump
Type
Air Operated
Pump Ratio
3:1
Consumption @ 100 PSI
10 cfm
Working Flow Max. (GPM)
6
Standards
NPT
Fluid Outlet Thread (In.)
1/2
Pump for Multiple Outlets
Yes
Outlet Pressure Max. (PSI)
600
Max. Air Inlet PSI
200
Fluid Inlet Thread (In.)
1"F/1.5"M
Min. Air Inlet Pressure
40
Air Inlet (In.)
1/4
Max. Output
6.0 gpm
Ounces per Stroke
6
Includes
Bung Bushing
Power Source
Air
Wetted Materials
Brass, Copper, Buna-N, Polyurethane, Steel
Diesel Exhaust Fluid Compatible
No
Includes Spout
No
Pump Connection Type
FNPT
Seal Material
Buna-N
Runs Dry
No
For Container Type
Drum
Air Consumption
10 cfm
Food Grade
No
Includes Discharge Hose
No
Pump Connection ID
1/2 in
Metered
No
Discharge Tube Outlet ID
1/2 in
Min. Fluid Temp.
30 Degrees F
Discharge Connection Type
NPT
Variable Speed
No
Max. Flow Rate
6 gpm
Max. Oil Flow
6 gpm
For Media Type
Automatic Transmission Fluid, Fluid Lubricants, Gear Lubricants, Motor Oil
Compatible Chemicals
Automatic Transmission Fluid, Fluid Lubricants, Gear Lubricants, Motor Oil
Max. Fluid Temp.
120 Degrees F
Includes Suction Tube
Yes
Includes Bung Adapter
Yes
Not Recommended Chemicals
Diesel Fuel, Grease, Kerosene
Max. Air Pressure
200 psi
Min. Air Pressure
40 psi
Self-Priming
Yes
Suction Tube Material
Steel
Housing Material - Pumps
Steel
Ratio
3:1
Discharge Tube Outlet OD
13/16 in
Suction Tube OD
1 1/2 in
Includes Nozzle
No
Gear Lube
R
Adapter Connection Type
FNPT
Grease
X
Max. Outlet Pressure
600 psi
Explosion Proof
No
Housing Finish
Zinc Casted
Features
Backed by the Most Extensive, Qualified Service Network in the Industry, Ball Check Valve Helps Keep Pump Primed, Designed for Greater Cycle Rates, Exceeds Maximum Limits Recommended for Competitive Pumps, Lightweight, Corrosion-Resistant Zinc Head Casting Design Incorporates Uniform Wall Thickness, Keeps Pumping While Other Pumps Slow down or Stop Due to Icing, Pneumatically Assisted Mechanical Air Valve Assures Positive Tripping, Precision-Machined, Hardened Steel Slide Valve for Longer Life, Springless Air Motor Construction Prevents Premature Pump Failure Due to Spring Fatigue
Agency Compliance
OSHA

Description

Air Drum Pump, Max. Air Pressure 200 psi, Spout Connection Size Not Applicable, Suction Tube Material Steel, Self-Priming Yes, Overall Length 44 1/8 in, Explosion Proof No, Discharge Connection Type NPT, Features Corrosion-Resistant Zinc Head Casting, Hardened Steel Slide Valve, Reduced Icing, Lightweight, Mechanical Air Valve Assures Positive Tripping, Precision-Machined, Springless Air Motor Construction, Spout Length Not Applicable, Food Grade No, Bung Connection Dia. 2 in
