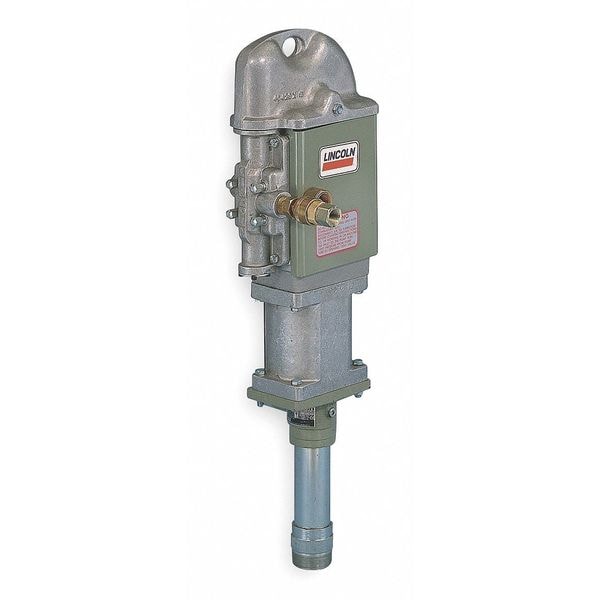

Lincoln Industrial Oil Pump Transfer System, Air-Operated 1914 - main

Oil Pump Transfer System, Air-Operated

  • Mfr # 1914

  • Zoro # G2180254

product price: $5,244.99
/ea
Free Shipping & Returns

Key Features

Type
Air-Operated
Air Motor Size (In.)
4-1/4
Pump Ratio
12:1
Container Size
55 gal.
Consumption @ 100 PSI
110 cfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1914
Zoro #
G2180254
UPC #
095992099293
Country of Origin
United States

Dimensions

Air Motor Size (In.)
4-1/4
Container Size
55 gal.
Outlet Size
3/4" NPT
Suction Tube Length
7 1/2 in
Air Inlet Size
1/2 FNPT
For Container Size
55 gal, 275 gal

Details

Item
Air Operated Drum Pump
Type
Air-Operated
Pump Ratio
12:1
Consumption @ 100 PSI
110 cfm
Working Flow Max. (GPM)
12
Max. Output
12 gpm
Max. Air Inlet PSI
200
Pump for Multiple Outlets
Yes
Air Inlet (In.)
1/2 NPT
Ounces per Stroke
2.49
Min. Air Inlet Pressure
40
Includes
Bung Bushing
Outlet Pressure Max. (PSI)
2400
Runs Dry
No
Food Grade
No
Compatible Chemicals
Automatic Transmission Fluid, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Motor Oil
Housing Material - Pumps
Steel
Seal Material
Buna-N, Polyurethane
Diesel Exhaust Fluid Compatible
No
Discharge Tube Outlet ID
3/4 in
Includes Discharge Hose
No
Pump Connection ID
3/4 in
Includes Nozzle
No
Discharge Connection Type
FNPT
For Container Type
Drum, Tote
Suction Tube OD
2 1/8 in
Wetted Materials
Buna-N, Polyurethane, Steel
Not Recommended Chemicals
Diesel Fuel, Gear Lube, Grease, Kerosene
Min. Fluid Temp.
30 Degrees F
Max. Air Pressure
200 psi
Air Consumption
110 cfm
Self-Priming
Yes
Variable Speed
No
Max. Oil Flow
12.6 gpm
Max. Fluid Temp.
120 Degrees F
Max. Flow Rate
12.6 gpm
Includes Spout
No
Pump Connection Type
FNPT
Includes Suction Tube
Yes
Ratio
12:1
Suction Tube Material
Steel
Includes Bung Adapter
No
Power Source
Air
For Media Type
Automatic Transmission Fluid, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Motor Oil
Metered
No
Explosion Proof
No
Max. Outlet Pressure
2,400 psi
Gear Lube
X
Grease
X
Features
Costs Much Less to Operate 3 Costs Much Less to Maintain, Gives Years of Dependable Trouble-Free Operation, Large Air Passages Allow Unrestricted Venting, Shovel-Type Pump Tube Used to Add Mechanical Priming to Normal Suction when Needed, Simplified Maintenance

Description

Air Drum Pump, Max. Air Pressure 200 psi, Spout Connection Size Not Applicable, Suction Tube Material Steel, Self-Priming Yes, Explosion Proof No, Discharge Connection Type FNPT, Features Large Air Passages, Shovel-Type Pump Tube Used to Add Mechanical Priming to Normal Suction when Needed, Simplified Maintenance, Spout Length Not Applicable, Food Grade No, Air Consumption 110 cfm, Hose Length Not Applicable, Variable Speed No, Includes Discharge Hose No, Includes Suction Tube Yes
