Shop LINCOLN INDUSTRIAL

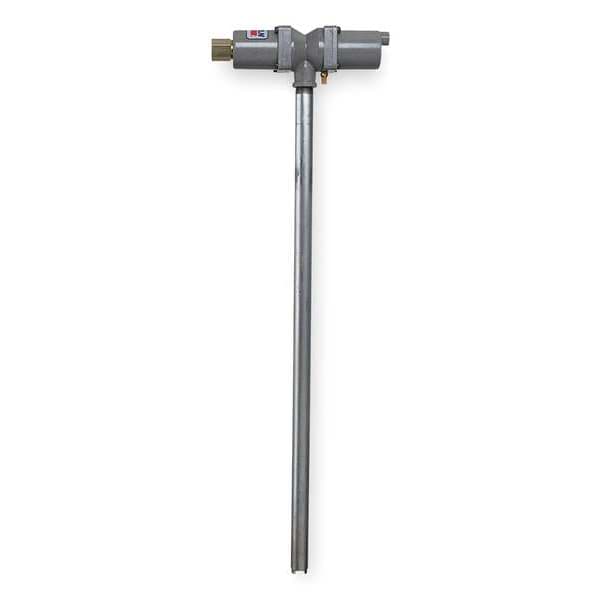

Single Acting Oil Pump, Air, 3.1 GPM

  • Mfr # 4475

  • Zoro # G1097327

product price:  $421.99
/ea
Free Shipping & Returns

Key Features

Type
Air-Operated
Air Motor Size (In.)
2
Consumption @ 100 PSI
5 cfm
Working Flow Max. (GPM)
3.1 gpm
Pump Ratio
1:1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
4475
Zoro #
G1097327
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Air Motor Size (In.)
2
Container Size
55 gal
Outlet Size
3/8-1/2"
Suction Tube Length
36 in
For Container Size
55 gal
Bung Connection Dia.
2 in
Air Outlet Size
1/2 in
Discharge Tube Outlet OD Size
13/16 in
Suction Tube Outlet O.D. Size
1 1/2 in
Adapter Connection Diameter
2 in
Air Inlet Connection Size
1/2 in

Details

Item
Air Drum Pump
Type
Air-Operated
Consumption @ 100 PSI
5 cfm
Working Flow Max. (GPM)
3.1 gpm
Pump Ratio
1:1
Pump for Multiple Outlets
Yes
Fluid Inlet Thread (In.)
2" Bung
Standards
FNPT
Ounces per Stroke
2.9
Outlet Pressure Max. (PSI)
150 psi
Max. Air Inlet PSI
120 psi
Air Inlet (In.)
1/2 in
Max. Output
3.1 gpm
Min. Air Inlet Pressure
40 psi
Fluid Outlet Thread (In.)
1/2
Includes
Bung Bushing
Suction Tube Material
Steel
Air Consumption
5 cfm
Includes Discharge Hose
No
Min. Fluid Temp.
0 Degrees F
Max. Fluid Temp.
120 Degrees F
Self-Priming
Yes
Diesel Exhaust Fluid Compatible
No
Includes Spout
No
Max. Flow Rate
4 gpm
Power Source
Air
Pump Connection Type
FNPT
Includes Suction Tube
Yes
Runs Dry
No
Food Grade
No
Pump Connection ID
1/2 in
Includes Bung Adapter
Yes
Discharge Tube Outlet ID
1/2 in
Discharge Connection Type
FNPT
Housing Material - Pumps
Steel
Not Recommended Chemicals
Diesel Fuel, Grease, Kerosene
Seal Material
Buna-N
Compatible Chemicals
Automatic Transmission Fluid, Gear Lubricants, Oil
Metered
No
Includes Nozzle
No
Suction Tube OD
1 1/2 in
Discharge Tube Outlet OD
13/16 in
Min. Air Pressure
20 psi
Variable Speed
No
Wetted Materials
Brass, Buna-N, Steel
For Container Type
Drum
Max. Oil Flow
4 gpm
Adapter Connection Type
FNPT
Explosion Proof
No
Gear Lube
R
Features
Internal Spring
Max. Temp._x
120 Degrees F
Connection Type
FNPT
Housing Material
Steel
Maximum Fluid Temperature
120 Degrees F
Meter Type Included
No Meter Included
Maximum Oil Flow
4 gpm
Minimum Fluid Temperature
0 Degrees F
Chemical Compatibility
Automatic Transmission Fluid, Gear Lube, Oil
Pressure Ratio
1:1
Maximum Flow Rate
4 gpm
Wetted Material
Brass/Buna-N/Steel
Maximum Air Pressure
120 psi
Maximum Outlet Pressure
150 psi
Minimum Air Pressure
20 psi
Adapter Connection Standard
FNPT
Air Inlet Connection Type
FNPT
Power Source - TS Only
Air

Description

Air Operated Drum Pump, Max. Air Pressure 120 psi, Suction Tube Material Steel, Self-Priming Yes, Explosion Proof No, Discharge Connection Type FNPT, Features An Internal Spring Returns the Piston and Resets it for the Working Stroke, Food Grade No, Air Outlet Size 1/2 in, Bung Connection Dia. 2 in, Air Consumption 5 cfm, Hose Length Not Applicable, Variable Speed No, Includes Discharge Hose No, Adapter Connection Type FNPT, Includes Suction Tube Yes, Includes Bung Adapter Yes
