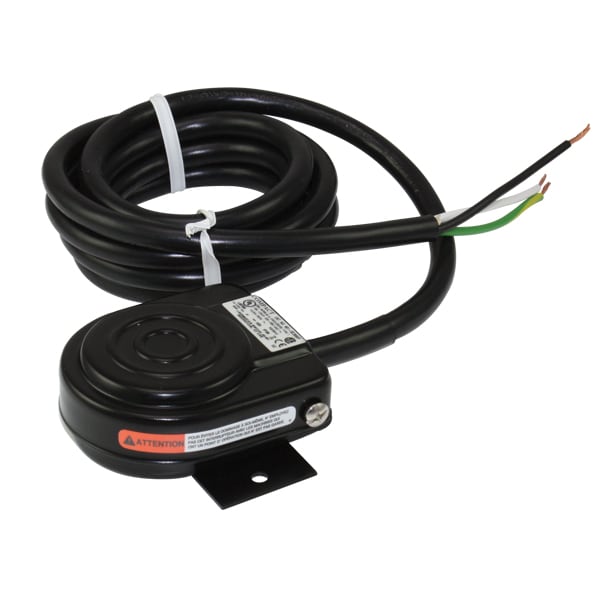

Linemaster Light Duty Foot Switch, Momentary Action 491-SC36MP - main

Light Duty Foot Switch, Momentary Action

  • Mfr # 491-SC36MP

  • Zoro # G4329193

product price:  $105.99
/ea
Free Shipping & Returns

Key Features

Contact Form
SPDT-NO
NEMA Rating
1
Voltage Rating
125/250V AC
Color
Black
HP
1/2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
491-SC36MP
Zoro #
G4329193
UPC #
-
Country of Origin
United States

Dimensions

Width
2 1/2 in
Depth
1 9/32 in
Length
2 7/8 in
Cord Length
6 ft
Overall Width
2.5 in
Overall Height
1.28 in
Length (Straight Wireway)
2 7/8 in
Overall Depth
2.87 in

Details

Item
Foot Switch
Contact Form
SPDT-NO
NEMA Rating
1
Voltage Rating
125/250V AC
Color
Black
HP
1/2
Material
Steel
Current Rating
10
Action
Momentary
Cord Type
16/3
Standards
CE, CSA, RoHS, UL Listed
IP Rating
IP20
Features
(2) Mounting Holes, Non-Skid, Internal Adjustable Strain Relief
Includes
Mounting Plate
Product Type
Foot Switch
Circuitries
SPDT wired NO
MATERIALS
Non-Skid base pad for secure placement Compact in size and light in weight Supplied with internal adjustable strain relief Built for long life 2 Mounting Holes for Rigid Mounting to Floor or Equipment
PURPOSE
Versatile Compact Design
FEATURES & BENEFITS
Adhesive Applicator Assembly System Brakes Braking System Camera Cleaning Equipment Coating System Communication Systems Crimping Head Degreasers Dispenser Dispensing Circular Bead Electronic Equipment Emergency Vehicles Engraving Machines Epilator Etching Machine Film Transports Lights Marking System Measuring Machine Medical Equipment Musical Instruments Photographic Equipment Pipe Turning Rolls Positioner/Turntable Pump Saw Sewer Cleaning Equipment Sharpener Tapping Machine Tester Turntable TV Studio Equipment Twisting Machines Vaper Blast Dri-honer
Switch Type
Electrical
Housing Materials
Formed Steel
ENCLOSURE
NEMA Type 1 • UL ENCLOSURE Type 1 • CSA ENCLOSURE Type 1 • EN 60529 Degree Of Protection • IP20
Housing Colors
Black
Cordsets
6-ft cordset, no plug
Electrical Ratings
10A, 125-250 VAC, 1/2 HP 125-250 VAC
Switch Connections
Solder terminal, Pre-wired
Cable Entries
Adjustable strain relief clamp
Actions
Single Stage Momentary
AC Contact Rating
10 A @ 125 to 250 V
Series
Compact
Horsepower
0.5 HP @ 125 to 250V AC
Termination Connection Type
Pre-Cabled
Includes Foot Guard
No Guard Included
Power Source
Electrically Corded
Number of Pedals
1
Hazardous Location Specification
Not Rated
NEMA Enclosure Rating
1
Resistance Properties
Watertight
Includes Potentiometer
No Potentiometer Included

Description

Foot Switch, SPDT-NO Contact Form, Voltage Rating 125/250V AC, NEMA Rating 1, Current Rating 10, Material Steel, Color Black, Momentary Action, Cord Type 16/3, Length 2 7/8 in, Width 2 1/2 in, Depth 1 9/32 in, HP 1/2, Cord Length 6 ft, IP Rating IP20, Features (2) Mounting Holes, Non-Skid, Internal Adjustable Strain Relief, Standards CE, CSA, RoHS, UL Listed
