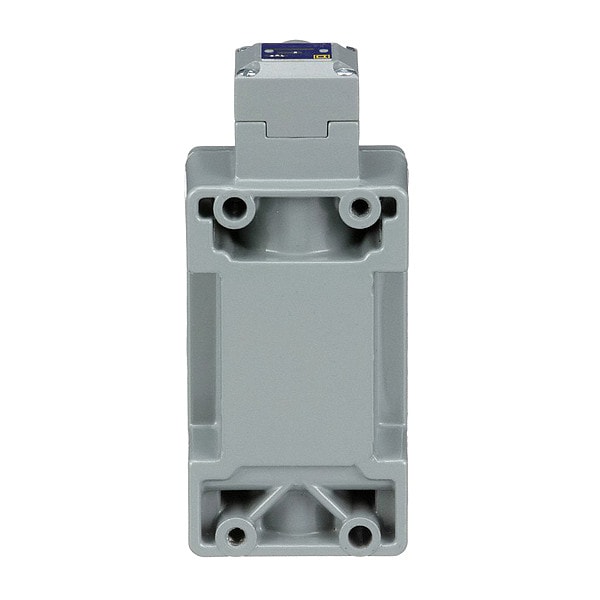

Telemecanique Sensors Hazardous Location Limit Switch, No Lever, Rotary, 1NC/1NO, 10A at 600V AC, Actuator Location: Side 9007CR53B2 - main

Hazardous Location Limit Switch, No Lever, Rotary, 1NC/1NO, 10A at 600V AC, Actuator Location: Side

  • Mfr # 9007CR53B2

  • Zoro # G2581354

product price:  $345.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9007CR53B2
Zoro #
G2581354
UPC #
785901763352
Country of Origin
Mexico

Dimensions

Depth
2.08"
Body Depth - Limit Switch
2.08 in
Width
2.72"
Height
6.10"
Body Width - Limit Switch
2.72 in
Body Height - Limit Switch
4.25 in
Manufacturer Warranty Length
18 mo
Body Height
4.25 in
Overall Width
2.72 in
Overall Height
6.1 in
Overall Depth
2.79 in
Body Depth
2.08 in
Mounting Hole Diameter
0.2 in
Body Width
2.72 in

Details

Item
Hazardous Location Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 600V
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
Standards
C22-2-14-95, CE, CSA, EN 60947-1, EN 60947-5-1, IEC 60947, NEMA 250, UL Listed, UL 508
Limit Switch Style
Hazardous Location Limit Switch
AC Contact Rating
10 A @ 600 V
Actuator Style (Limit Switch)
Rotary, No Lever
Actuator Location (Limit Switch)
Side
Body Style (Limit Switch)
Standard
NEMA Rating
1, 12, 13, 2, 4, 6, 6P, 7, 9
IP Rating
IP67
Body Material
Aluminum
Voltage Rating
600VAC/DC
Amps
10
Mounting Hole - Limit Switch
(2) 0.20 in dia
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Wiring Entry
1/2 in NPT
Series
9007CR
DC Contact Rating
10 A @ 600 V
Electrical Connection
Screw Clamp Terminals
Contact Form
1NO/1NC
Operating Force
4.0 in-lb
Contact Form - Limit Switch
1NC/1NO
Actuator Location
Side
Basic Actuator Style (Limit Switch)
Rotary
Operating Temp. Range
-20 Degrees to 185 Degrees F
Certification
UL Class I Groups B, C, D and Class II Groups E, F, G
Mounting Hole Spacing - Limit Switch
2.35 in x 1.17 in
Boot Sealed Actuator (Limit Switch)
No
Stem Thread - Limit Switch
No Stem
Travel
Total Travel 90 Degrees
Actuator Style
Rotary Head, No Lever
Movement
CCW, CW
Boot Sealed Actuator - Limit Switch
No
Contact Material
silver contacts
Special Features
lateral approach, 1 or 2 programmable direction
Head Material
zinc
Mechanical Durability
10000000 cycles
Min. Actuation Velocity Horizontal
90 ft/min with 45° cam angle, levers only || 130 ft/min with 30° cam angle, levers only
Head Type
rotary head
Actuation Type
CW and CCW || from left and right
Weight
2.5 lb(US)
Short Circuit Protection
10 A CC non-time delay
Electrical Durability
1000000 cycles
Vibration Resistance
25 gn 10-150 Hz)IEC 60068-2-6
Contact Action
snap action
Shock Resistance
60 gn 9 ms IEC 60068-2-27
Resistance Properties
Shock Resistant, Vibration Resistant
Number of Mounting Holes
2
Operating Torque - Maximum
4 in-lb
Boot Sealed Actuator
No Boot Included
Total Travel
90 Degrees
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Mounting Style
Surface
Mounting Hole Vertical Center to Center Distance
60 mm
Mounting Hole Horizontal Center to Center Distance
30 mm
Pretravel
10 Degrees
Hazardous Location Specification
Class I, Div 1, Group B, C, D, Class II, Div 1, Group E, F, G
Directional Movement
CCW/CW
Includes Actuator
No Actuator Included
Operating Temperature - Maximum
185 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Number Of Poles
1
Type Of Operator
zinc spring return without operating lever 9007C lever

Description

Hazardous Location Limit Switch, Actuator Style - Limit Switch No Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 600V, Contact Form- Switches 1NC/1NO, Body Height - Limit Switch 4.25 in, Body Width - Limit Switch 2.72 in, Body Depth - Limit Switch 2.08 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 12, 13, 2, 4, 6, 6P, 7, 9, Mounting - Limit Switch Surface
