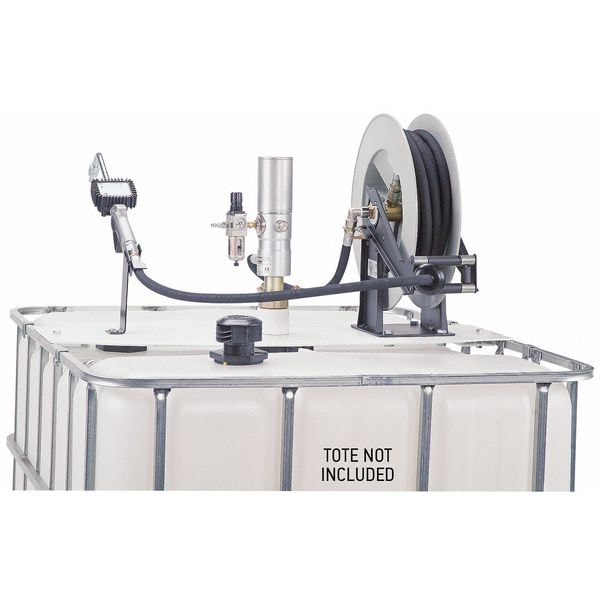

Air Drum Pump, 4 gpm, 600 psi, 3:1

  • Mfr # TOA22R25ENQRAFR2
  • Zoro # G3782830
product price:
$
2,226.99
/ea
Free Shipping & Returns

Key Features

Air Inlet (In.)
1/4 FNPT
Type
Air Operated
Max. Output
4 gpm
Capacity
Tote Not Included
Interval Time Between Cycles (Min.)
0.08 min
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TOA22R25ENQRAFR2
Zoro #
G3782830
UPC #
-
Country of Origin
United States

Dimensions

Air Motor Size (In.)
3 in
Spout Length (In.)
9 in
Container Size
Tote Not Included
Outlet Size
1/2 in
Air Inlet Size
1/4 FNPT
Air Outlet Size
1/2 in
For Container Size
275 gal
Suction Tube Length
35 in
Hose Length
300 in
Hose Inside Diameter
1/2 in
Air Inlet Connection Size
1/4 in
Adapter Connection Diameter
2 in

Details

Item
Air Drum Pump
Air Inlet (In.)
1/4 FNPT
Type
Air Operated
Max. Output
4 gpm
Capacity
Tote Not Included
Interval Time Between Cycles (Min.)
0.08 min
Fluid Inlet Thread (In.)
1 FNPT
Output
2.37 oz Per Stroke
Fluid In/Out NPT (F)
1 in
Consumption @ 100 PSI
12 cfm
Max. Air Inlet PSI
125 psi
Min. Air Inlet Pressure
50 psi
Pump Ratio
3:1
Ounces per Stroke
2.37 fl oz/stroke
Pump for Multiple Outlets
Yes
For Use With
New Oils upto SAE 140
Outlet Pressure Max. (PSI)
360 psi
Includes
Non-Preset Control Handle, Reel
Working Flow Max. (GPM)
4.6 gpm
Fluid Outlet Thread (In.)
1/2 MNPT
Max. Outlet Pressure
360 psi
Ratio
3:1
Compatible Chemicals
Oil
Power Source
Air
Air Consumption
12 cfm
Max. Air Pressure
50 psi
Maximum Outlet Pressure
600 psi
Duty Cycle
Continuous
Adapter Connection Standard
FNPT
Suction Tube Material
Steel
Standards
CE
Includes Bung Adapter
Yes
Wetted Material
Aluminum/Nitrile/Steel
Static Protection
Not Groundable
Includes Nozzle
Yes
Maximum Head Pressure
600 psi
Includes Spout
Yes
Maximum Air Pressure
120 psi
Hazardous Location Class
Not Rated
Suction Tube OD
1 5/8 in
Meter Type Included
Digital
Discharge Connection Type
FNPT
Includes Discharge Hose
Yes
Maximum Flow Rate
4 gpm
Housing Material
Aluminum/Steel
Minimum Air Pressure
120 psi
Variable Speed
No
Discharge Tube Outlet ID
1/2 in
Maximum Viscosity
14,000 cps
Air Inlet Connection Type
FNPT
Noise Level
90 dB
Hose Tube Material
Synthetic Rubber
Maximum Fluid Temperature
150 Degrees F
For Container Type
Tote
For SAE Viscosity Grade - Maximum
140
Includes Follower Plate
No Follower Plate Included
Pump Technology
Piston
Nozzle Material
Aluminum
Pressure Ratio
3:1
Discharge Tube Outlet OD
1/2 in
Maximum Head
1,442 ft
Housing Finish
Zinc Casted
Container Cover Type Included
No Cover Included
Includes Suction Tube
Yes
Nozzle Operation
Manual
Chemical Compatibility
Engine Oil, Gear Lube, Hydraulic Oil
Mounting Bracket Included
Tote Mounting Bracket
Power Source - TS Only
Air
Power Source - old
Air

Description

Air Drum Pump, Max. Air Pressure 50 psi, Suction Tube Material Steel, Discharge Connection Type FNPT, Thermal Protection Not Applicable, Air Outlet Size 1/2 in, Air Consumption 12 cfm, Hose Length 300 in, Variable Speed No, Includes Discharge Hose Yes, Noise Level 90 dB, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter Yes, Includes Nozzle Yes, Includes Spout Yes
